Price: call us or send an enquiry
Availability: in stock

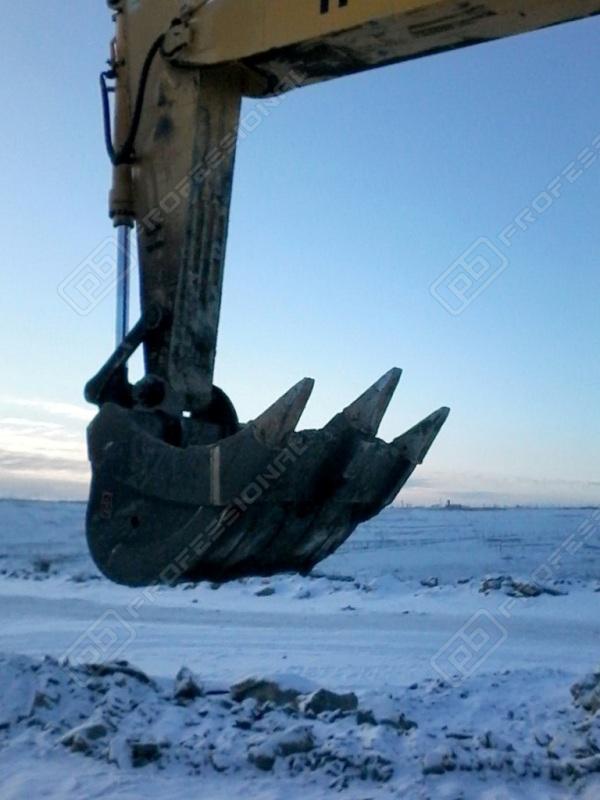

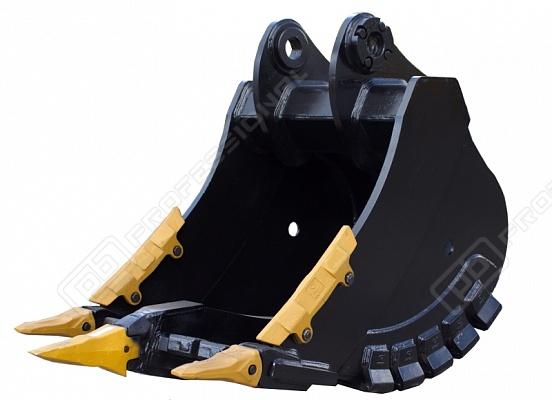

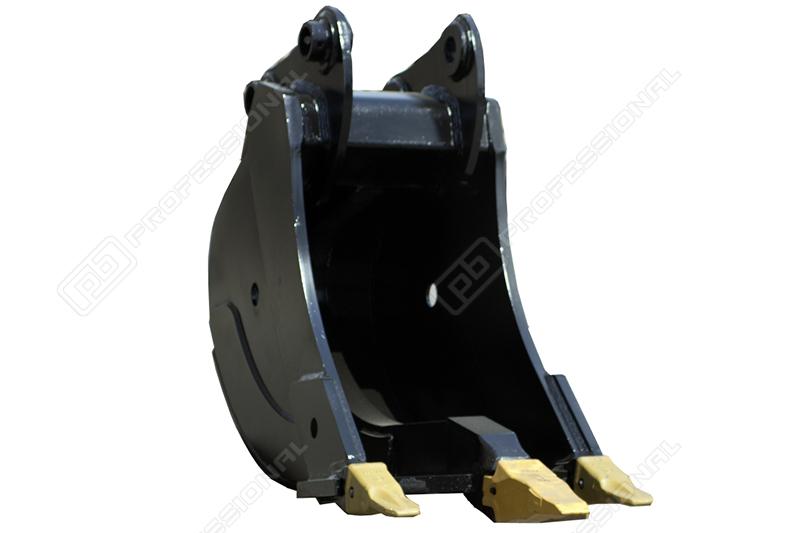

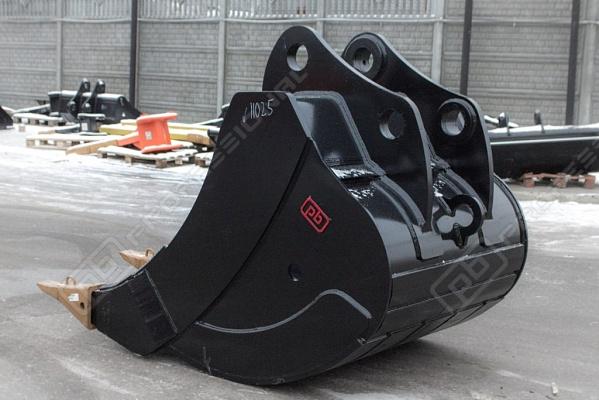

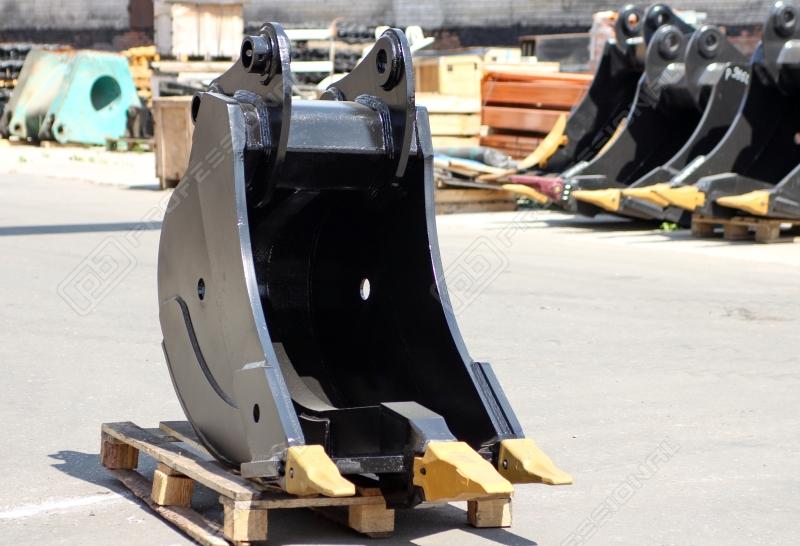

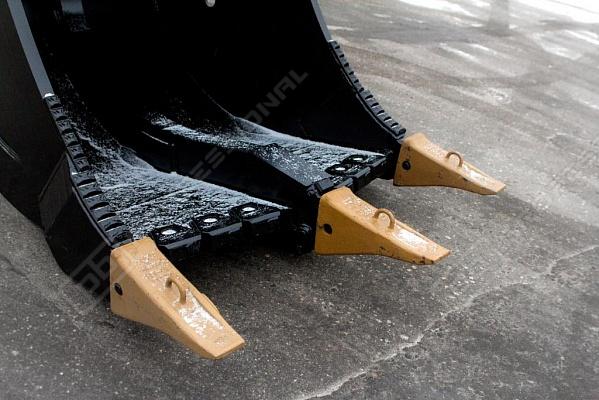

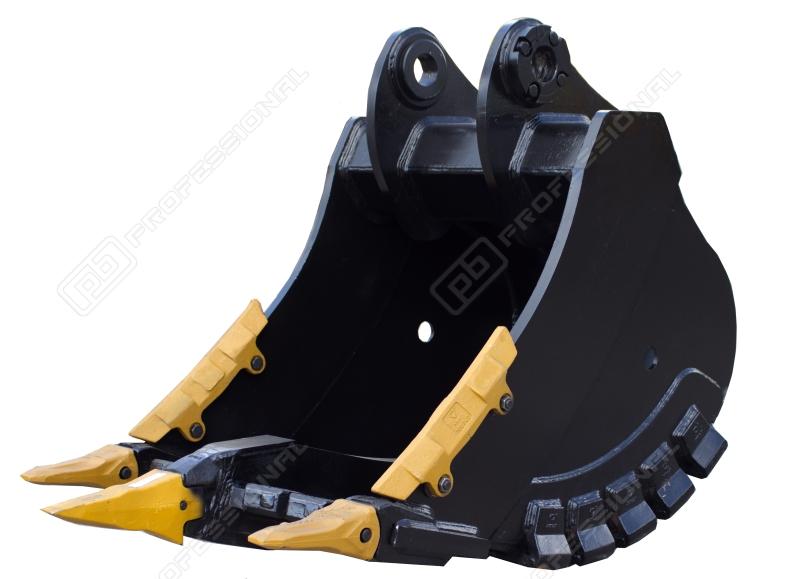

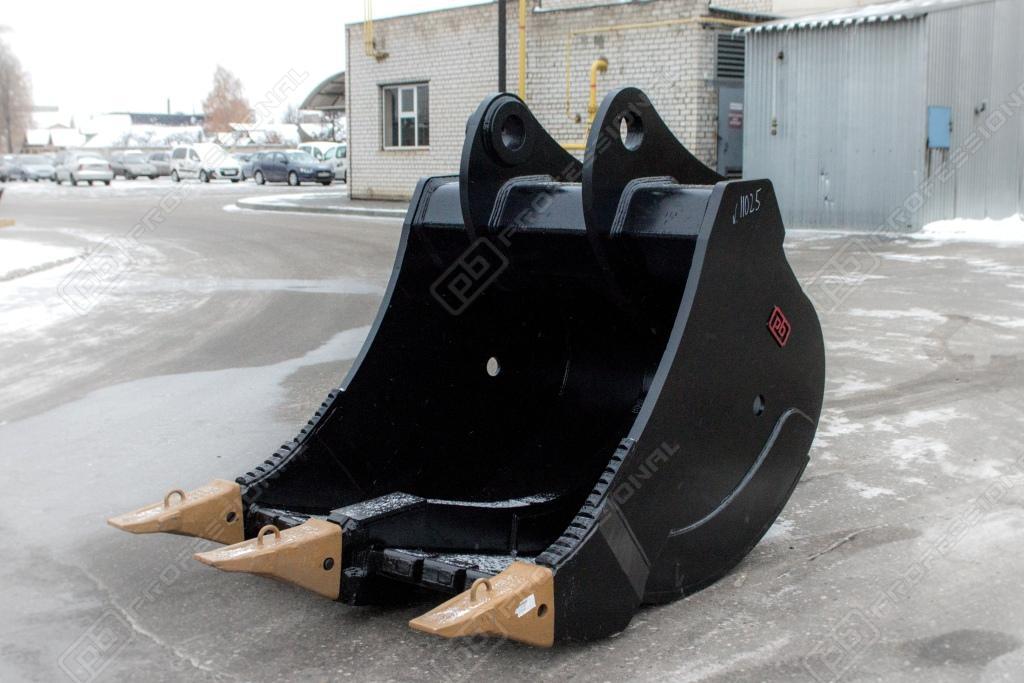

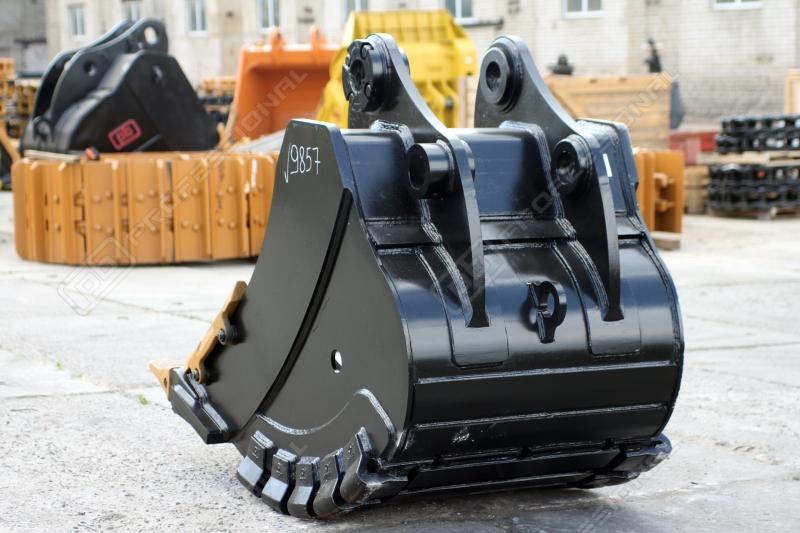

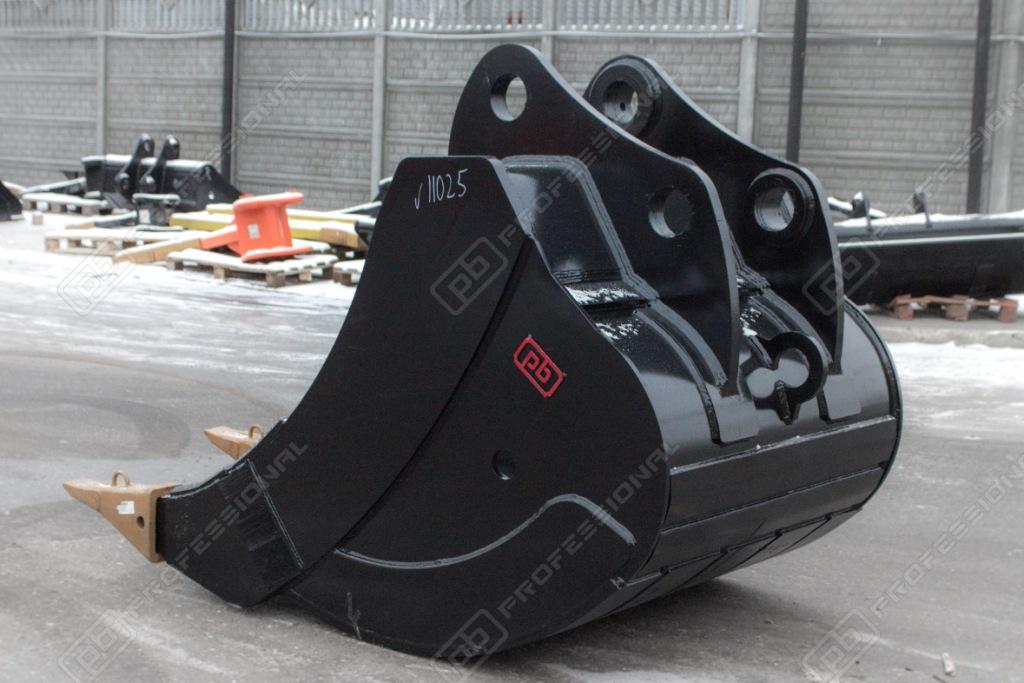

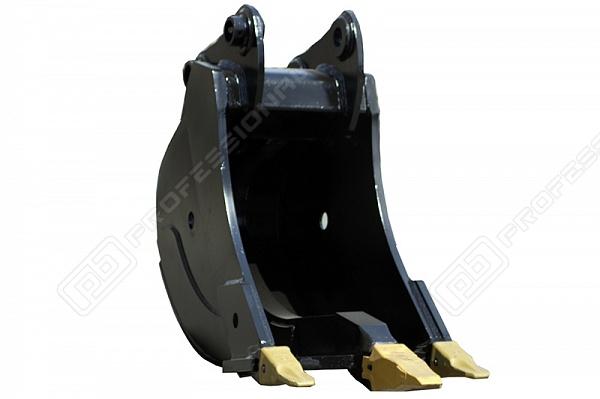

Ripping bucket RB-20.5.08 - used to excavate heavy ground with big amount of stony inclusions excavation and abrasive material (sandstone, granite, basalt, diabase, etc.), bulk material and loose rock and frozen soil handling with density up to 2200 kgs/m3. Different protection elements are applied to the bucket (wear plates, protectors, lip and corner shrouds, etc) made of wear resistant materials.
Ripping bucket have applications in frozen soil ripping and general excavation in soils with density up to 2500 kgs/m3 and up to VII abrasion class.
Class of excavator | 19-24 t |
Height H | 1360 mm |
Length | 1730 mm |
R | 1000 mm |
Teeth | 35R-14A (1шт) 1U-3352 RC (2шт) |
Width L | 800 mm |
Capacity | 0,48 m3 |
Weight | 940 kg |
Applied materials and components
1. Blade | HB-400 | 40 mm |
2. Wing | 09Г2С | 30 mm |
3. Bottom | 09Г2С | 10 mm |
4. Side wall | 09Г2С | 12 mm |
5. Side reinforcing plate | HB-450 | 10 mm |
6. Side reinforcing plate | HB-400 | 30 mm |
7. Runner | HB-450 | 10 mm |
8. Ребро | 09Г2С | 80 mm |
9. Beam | 09Г2С | 18 mm |
10. Side reinforcing plate | HB-450 | 12 mm |
