General description:

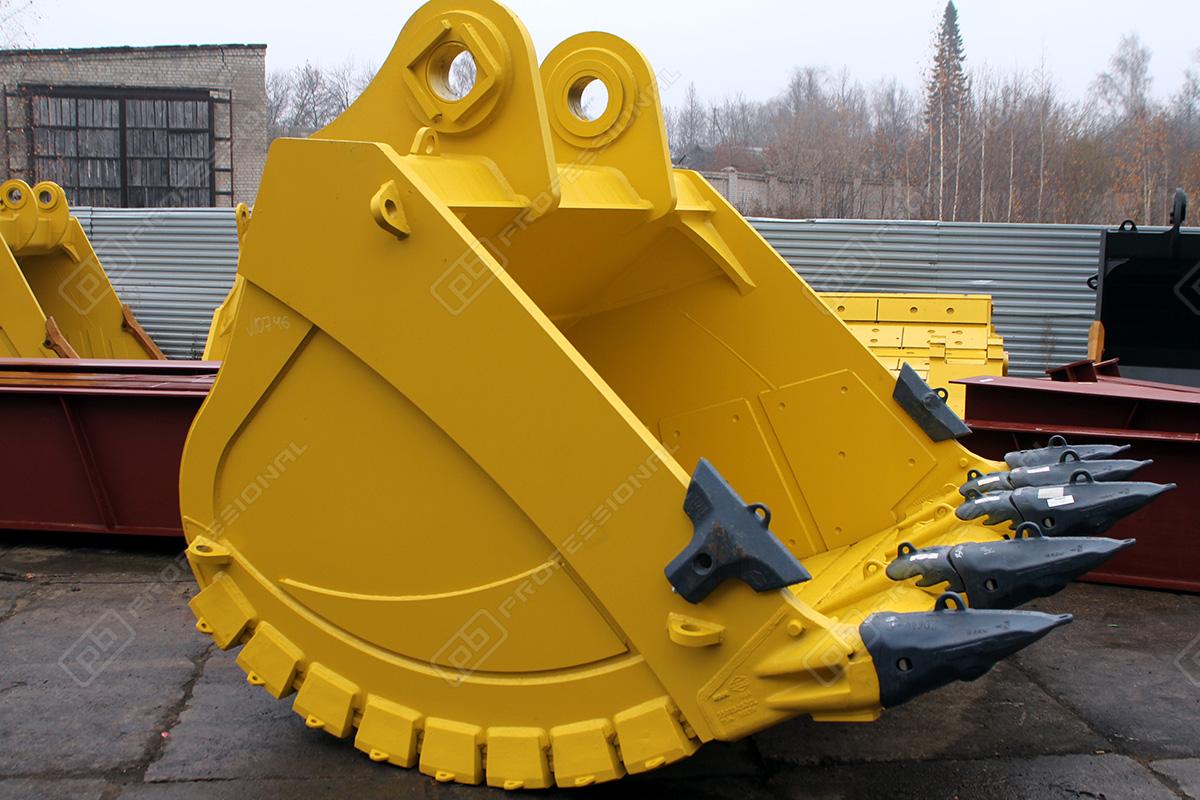

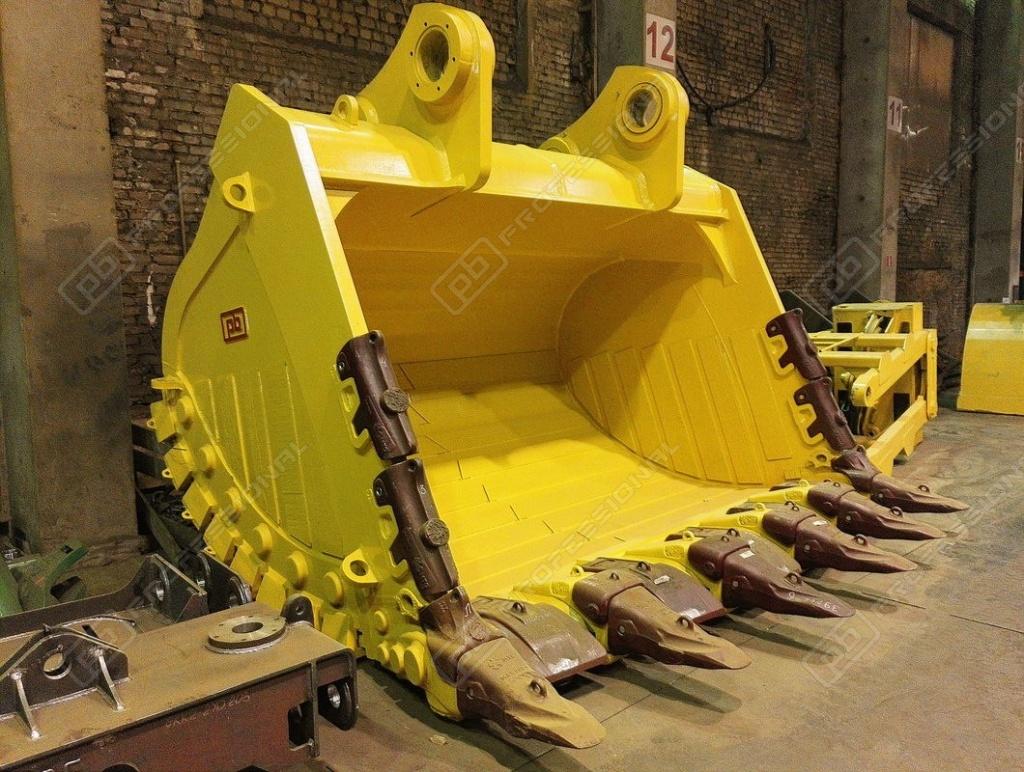

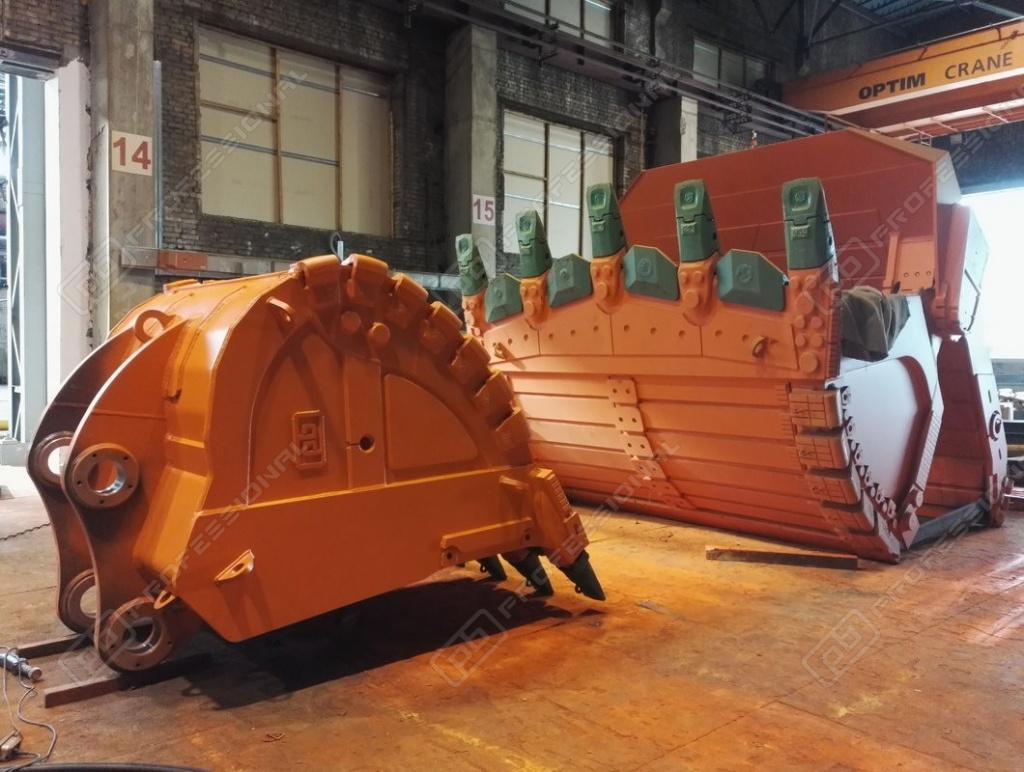

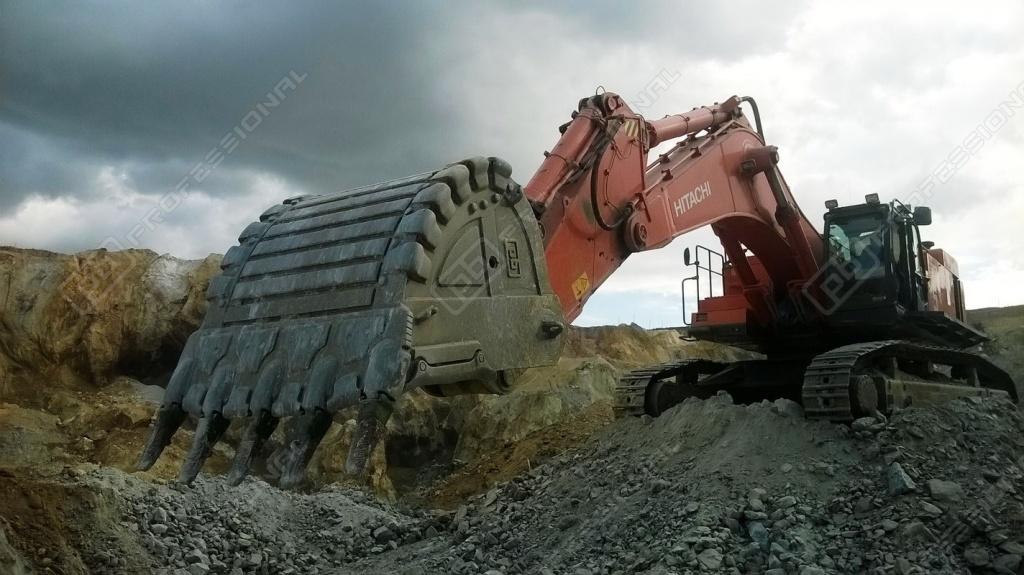

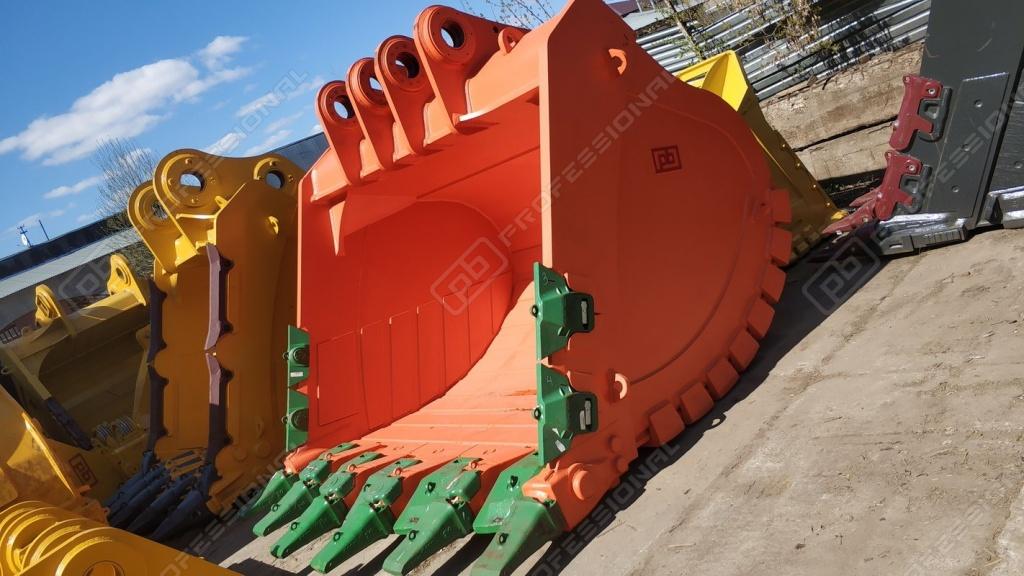

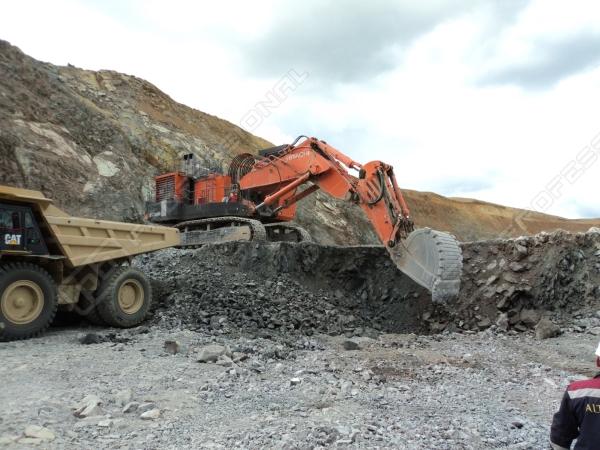

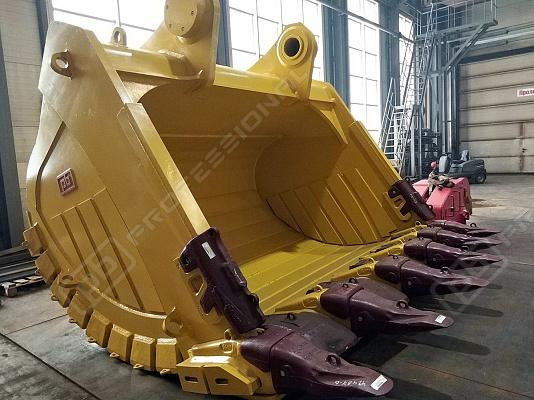

Professional LLC produces backhoe buckets for mining excavators.

Capacities range from 4,0 m3 for entry-level mining excavators (75-85 tons) up to 26...28m3 for excavators class PC5500, EX5500 (5600). Buckets are equipped with Ground Engaging Tools (GET) by ESCO, HENSLEY, MTG, COMBI, BYG and others at the customer’s choice. For heavy and abrasive soils, additional protection of Chromium Carbide Plates is applied. Weld-on or detachable lip shroud is possible.

The production capacity and experience allow us to produce backhoe buckets for any mining machine.

Successful operating experience is confirmed by partners Rio Tinto, Glencore, Kinross Gold, Nordgold, ArcelorMittal, Centerra Gold and others.

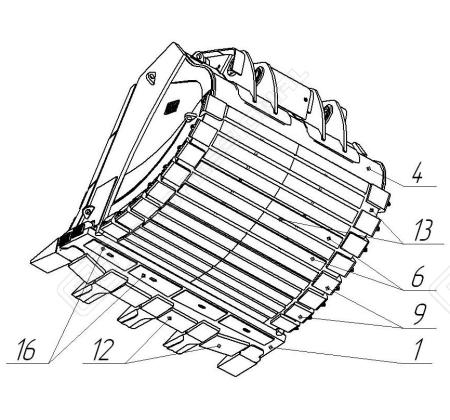

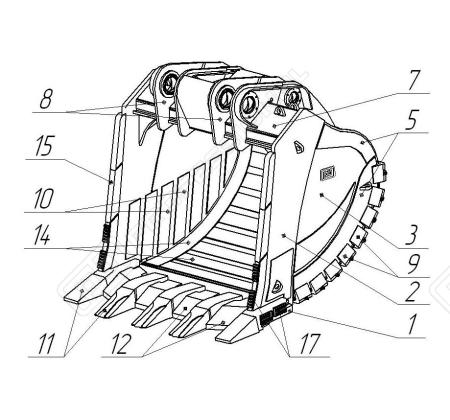

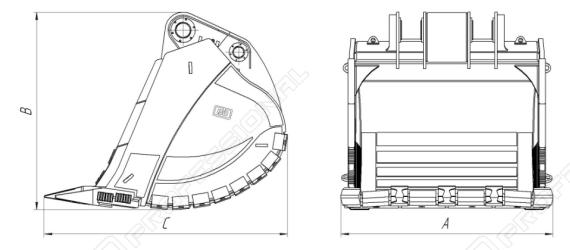

Pattern. Hitachi EX-2600 "Backhoe" bucket design.

Bucket parameters

Capacity	15 m³
Weight	17800 kg
A	3300 mm
B	3100 mm
C	3800 mm

Applied materials and components

1. Blade	S690QL	140 mm
2. Wing	HТ-360	70 mm
3. Side wall	HB-400	20 mm
4. Bottom	S690QL	20 mm
5. Side reinforcing plate	HB-500	20 mm
6. Overlay	HB-500	30 mm
7. Beam	S690QL	30 mm
8. Eye (Lifting eye / Lifting lug)	S690QL	50 mm
9. Heel	F90HS	14 mm
10. Wear strip	HB-500	15 mm
11. Tooth	85SV2SD	5 pcs.
Adapter corner	6842L-85SV2	1 pcs.
Adapter corner		6842R-85SV2	1 pcs.
Adapter central	6806W-85SV2	3 pcs.
12. Lip shroud	TBC140x420-2LA	1 pcs.
		TBC140x420-2RA	1 pcs.
		TBC140x420-1A	1 pcs.
13. Lining	HB-450	15 mm
14. Overlay	HB-500	20 mm
15. Wing shroud	HB-400	100 mm
16. Wear plate	HB-500	15 mm
17. Chocky bar	-	-
