General description:

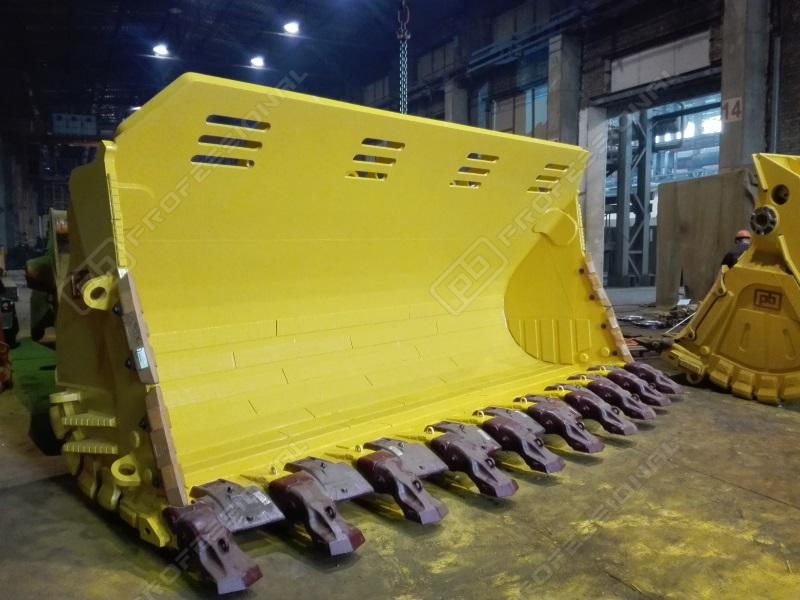

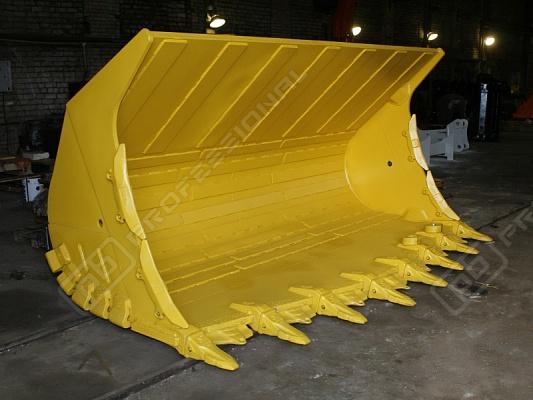

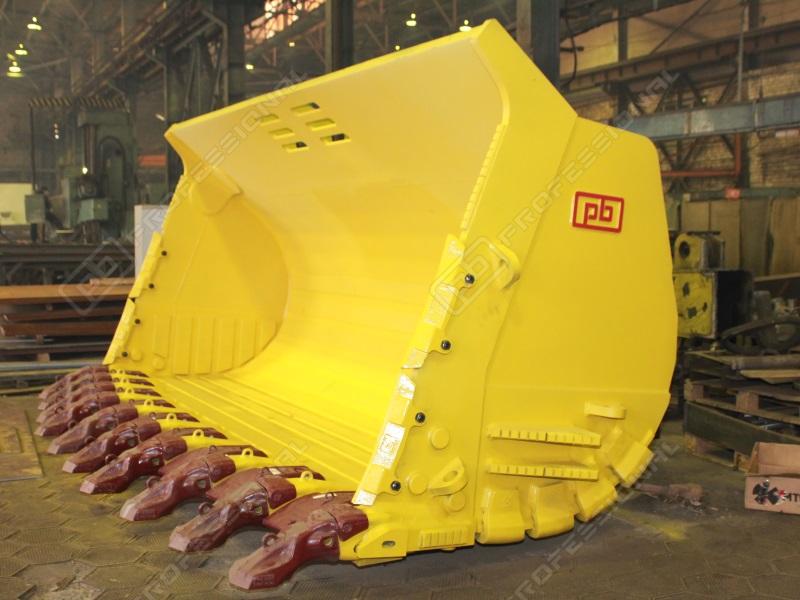

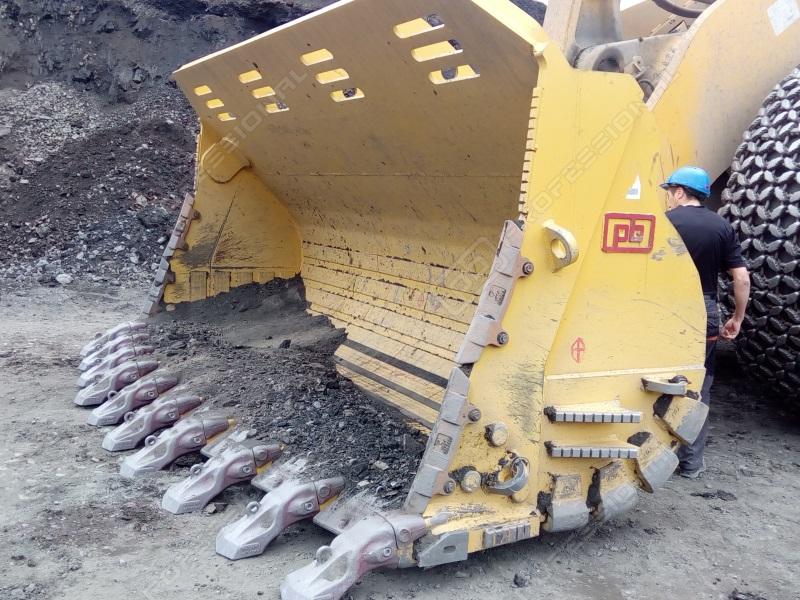

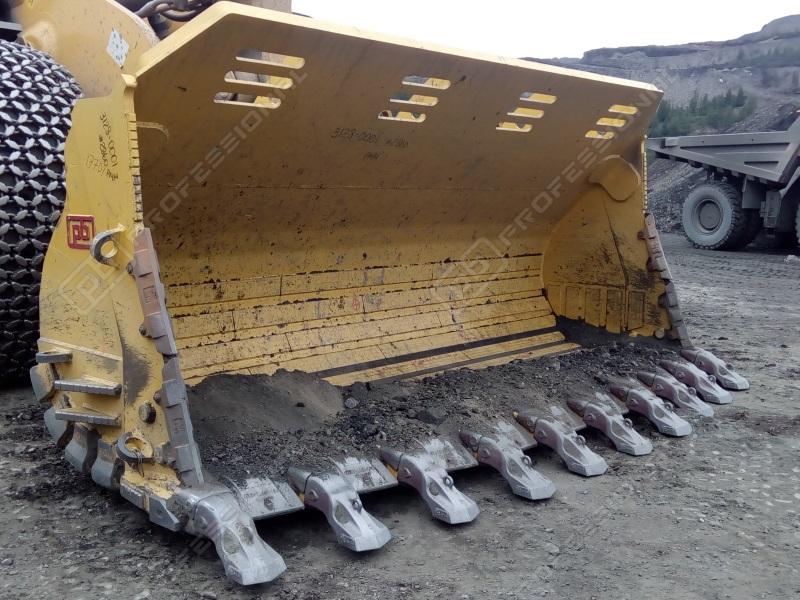

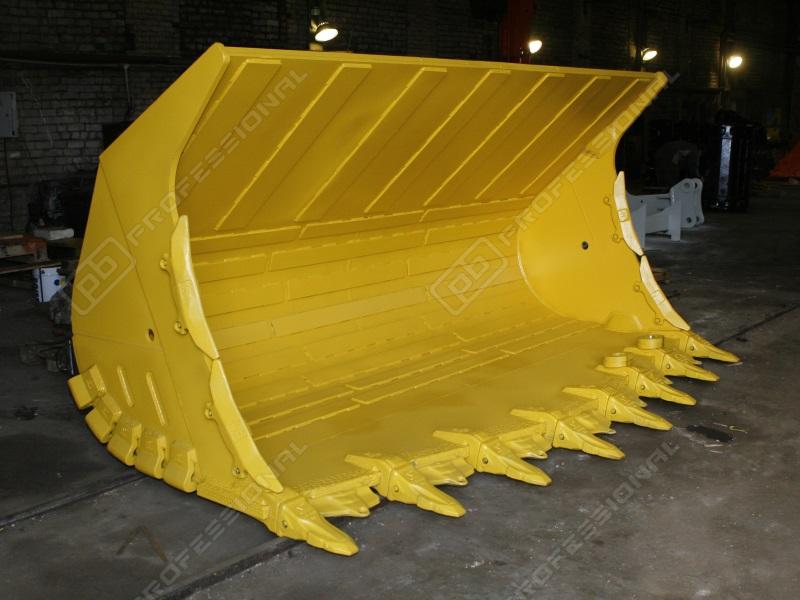

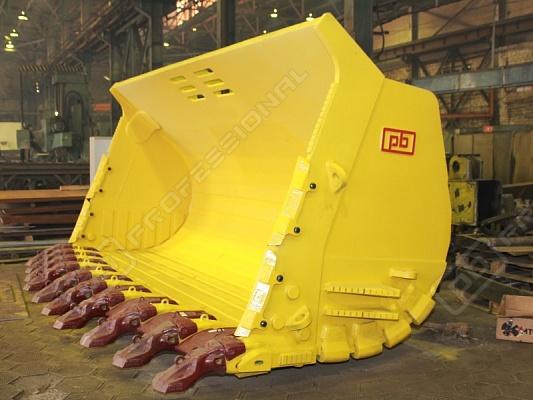

Professional LLC produces wheel loader buckets, which are mainly employed for loading at quarries and open-pit mines.

The most common types of buckets for wheel loaders are:

Rock buckets, equipped with a system of teeth
Buckets or increased capacity for light soils
Buckets with detachable cutting edges
High-discharge buckets equipped with hydraulic cylinders
Buckets for quick coupling (Quick Couplers) with loader boom

Buckets are produced with different systems of Ground Engaging Tools (GET) at the the customer’s choice by ESCO, HENSLEY, MTG, COMBI, BYG, VOLVO TOOTH SYSTEM (VTS), HYUNDAI, DOOSAN, NBLF and others. Bucket capacities range from 3,0 m3 for entry-level models of loaders to 20+ m3 for heavy loaders by Caterpillar, LeTurneau. For heavy and abrasive soils additional protection of Chromium Carbide Plates is applied. Weld-on or detachable lip shroud is possible.

Pattern. Komatsu WA-900 bucket for front loaders design.

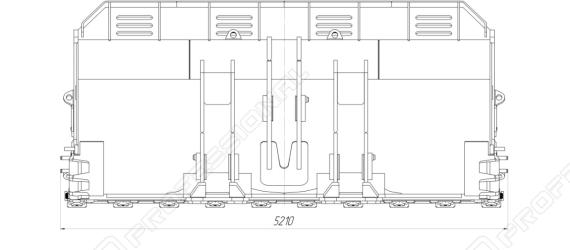

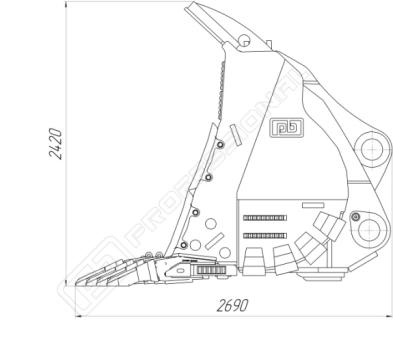

Bucket parameters

Capacity	13,0 m³
Width	5210 mm
Height	2420 mm
Length	2690 mm
Weight	12900 kg

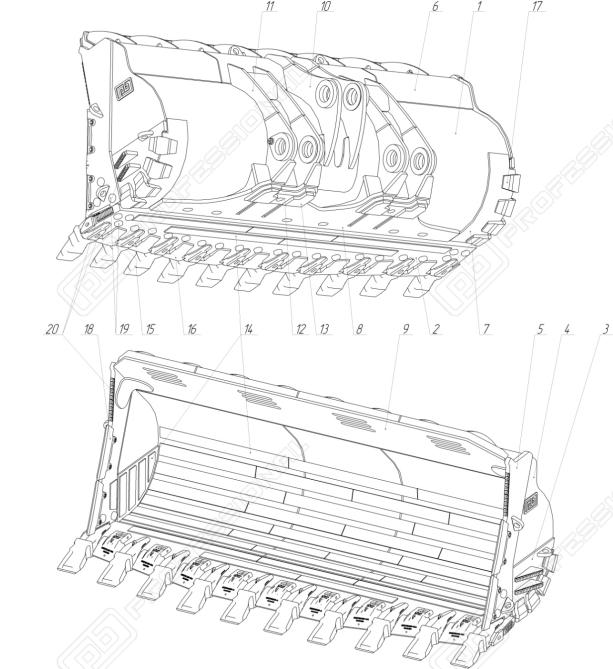

Applied materials and components

1. Bottom	S-690QL	25 mm
2. Blade	S-690QL	90 mm
3. Lower sidewall	HB-400	40 mm
3. Upper sidewall	HB-400	20 mm
5. Wing	HT-360	50 mm
6. Beam	S-690QL	20 mm
7. Lining	HB-400	20 mm
8. Lining	HB-400	40 mm
9. Lip	HB-400	25 mm
10. Middle Lifting Eye	S-690QL	50 mm
11. Side Lifting Eye	S-690QL	40 mm
12. Heel	HB-400	40 mm
13. Heel wear plate	HB-500	25 mm
14. Overlay	Overlay	10 mm
15. Tooth & adapter	1MA120WC90, MA120H1	10 pcs.
16. Lip shroud	4MX90L320-14A, 4MX90R320-14A, 4MX90C320-A	3+3+3 pcs.
17. Heel	HS230-190	8 mm
18. Wing shroud	I1U0740	4 mm
19. Liner	Chocky bar	32 mm
20. Liner	Плитка БХЧ	12 mm
