Price: call us or send an enquiry
Availability: in stock

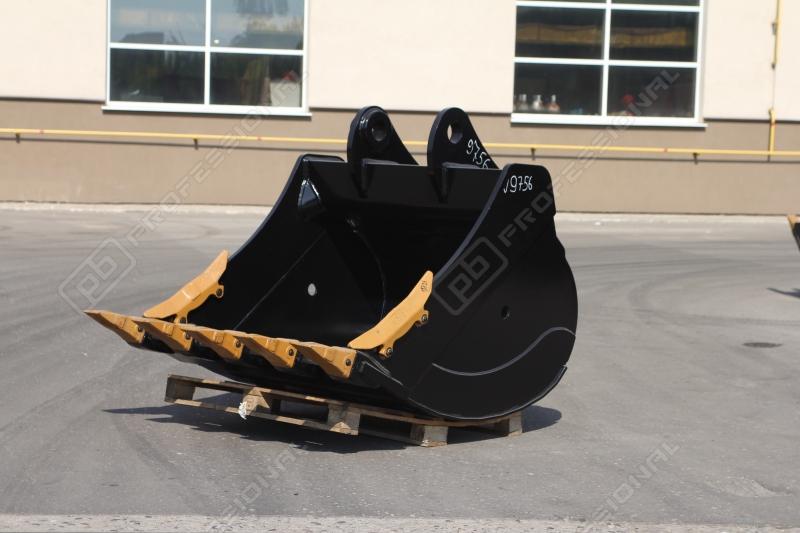

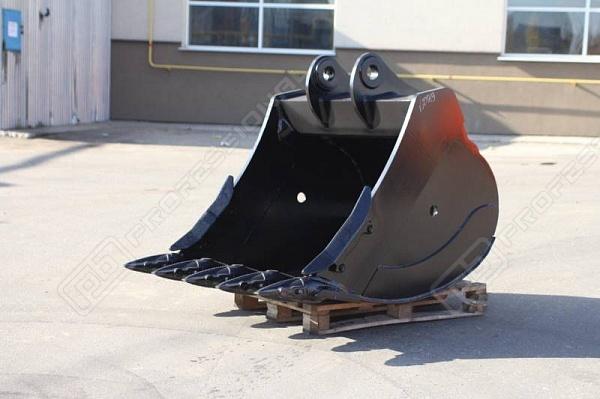

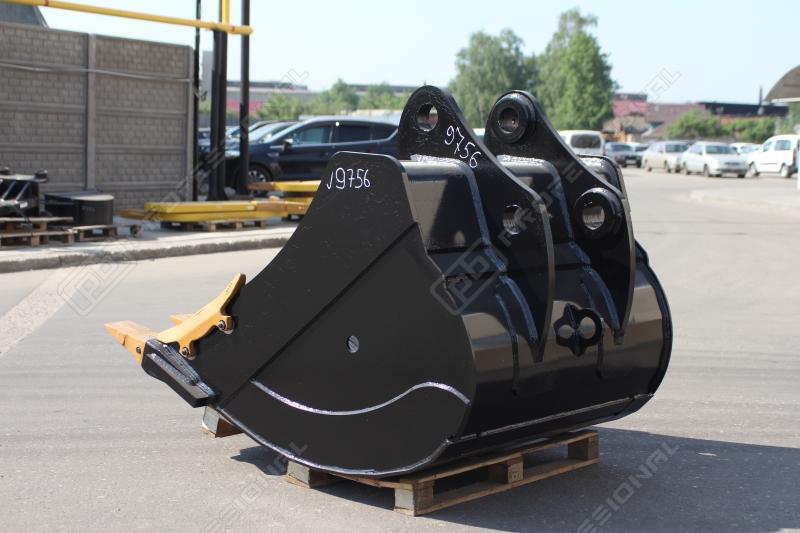

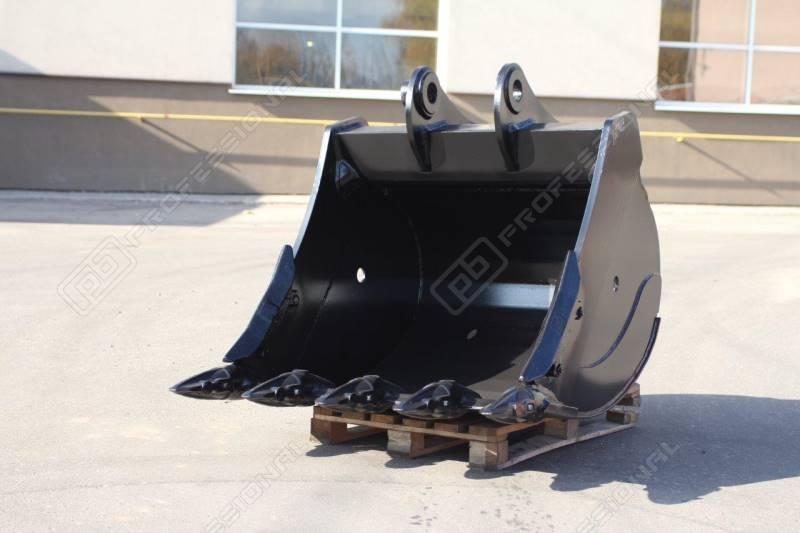

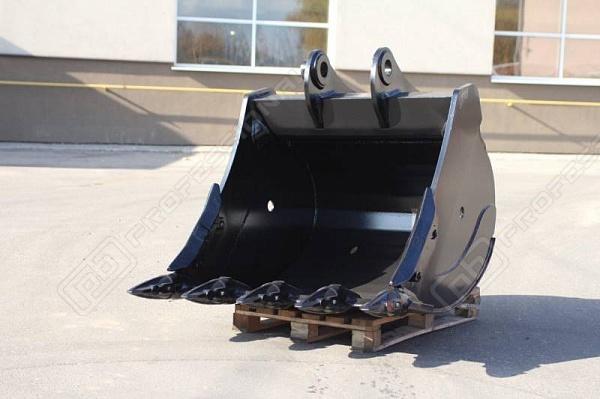

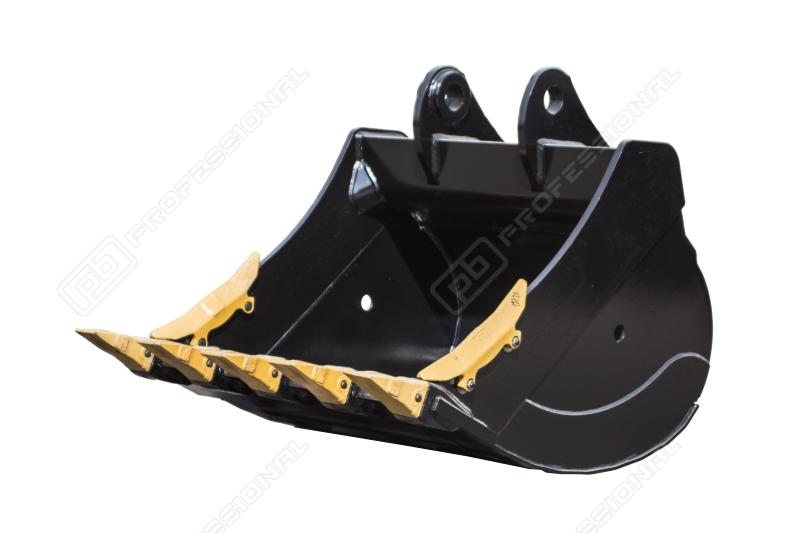

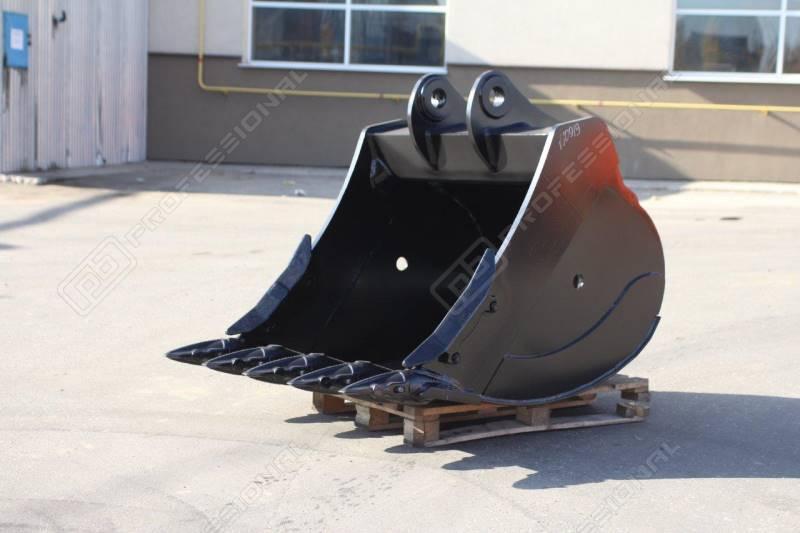

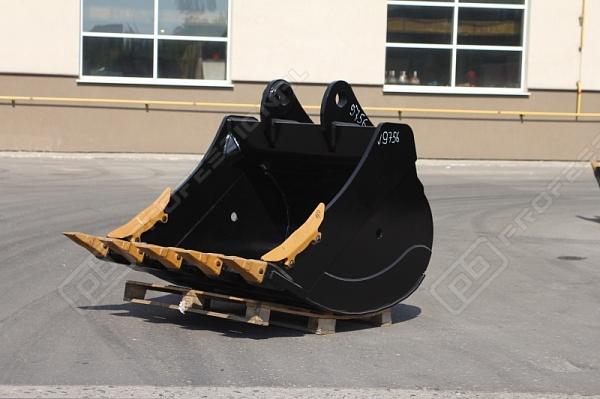

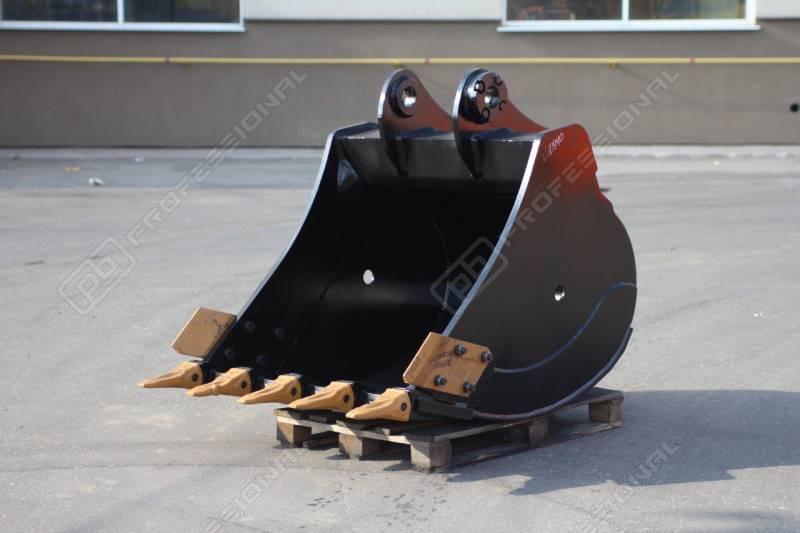

Heavy-duty bucket HD-16.13used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.
Applicability к технике:
Class of excavator | 12-18 t |
Height H | 1250 mm |
Length | 1500 mm |
R | 1070 mm |
Width L | 1300 mm |
Capacity | 0,95 m3 |
Weight | 760 kg |
Bucket teeth quantity | 5 pcs. |
Applied materials and components
1. Bottom | 10ХСНД | 8 mm |
2. Blade | HB-400 | 35 mm |
3. Side wall | 10ХСНД | 8 mm |
4. Wing | 10ХСНД | 25 mm |
5. Side reinforcing plate | HB-450 | 8 mm |
6. Runner | HB-450 | 8 mm |
7. Beam | 10ХСНД | 12 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 20 mm |
10. Протектор/бокорез | 9J9600 | 2 pcs. |
11. Teeth | Esco U30C, Hehsley, XS20RC, 1U3302RC, 61N4-31210, 61N6-31310 |
