Price: call us or send an enquiry
Availability: in stock

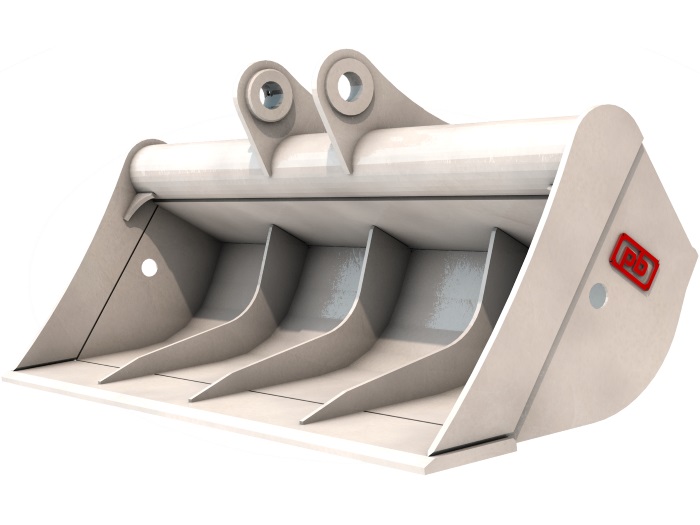

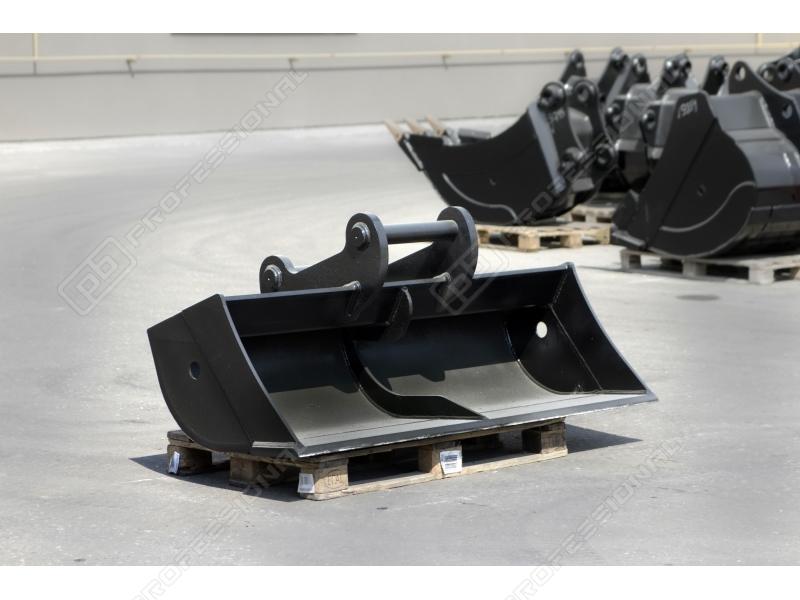

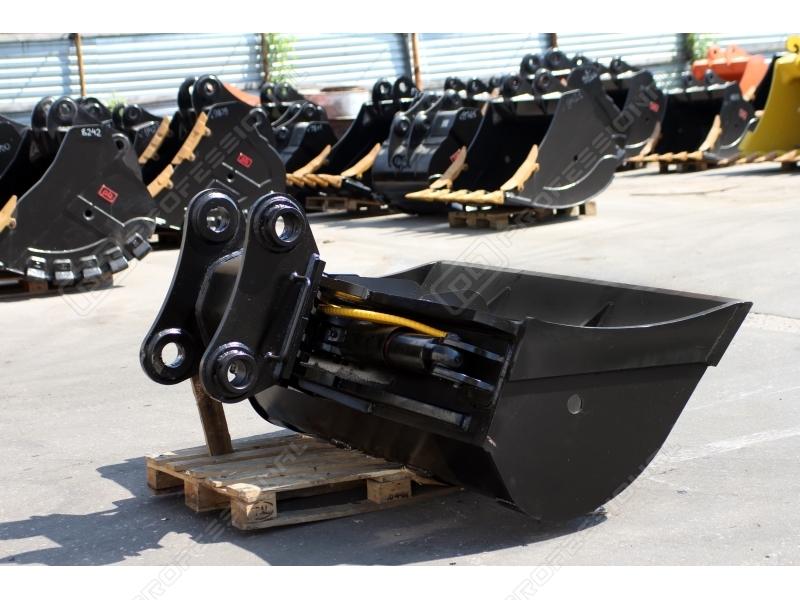

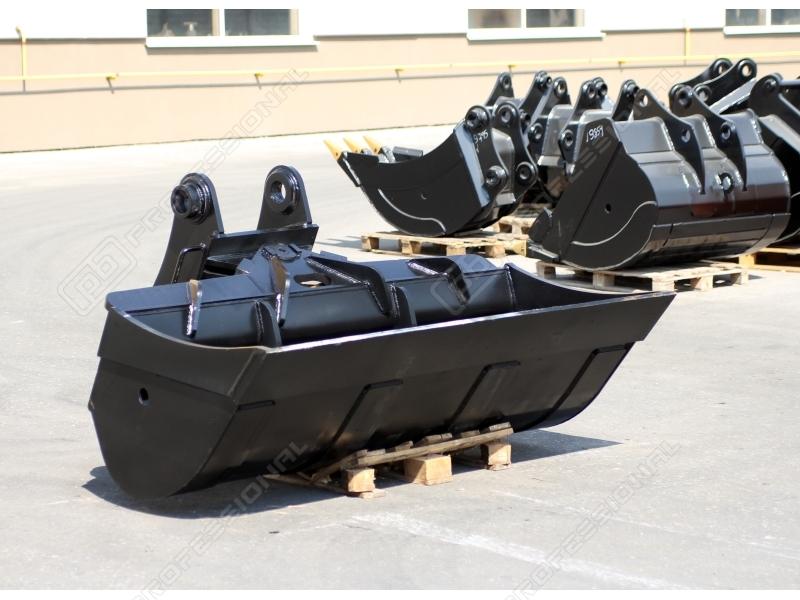

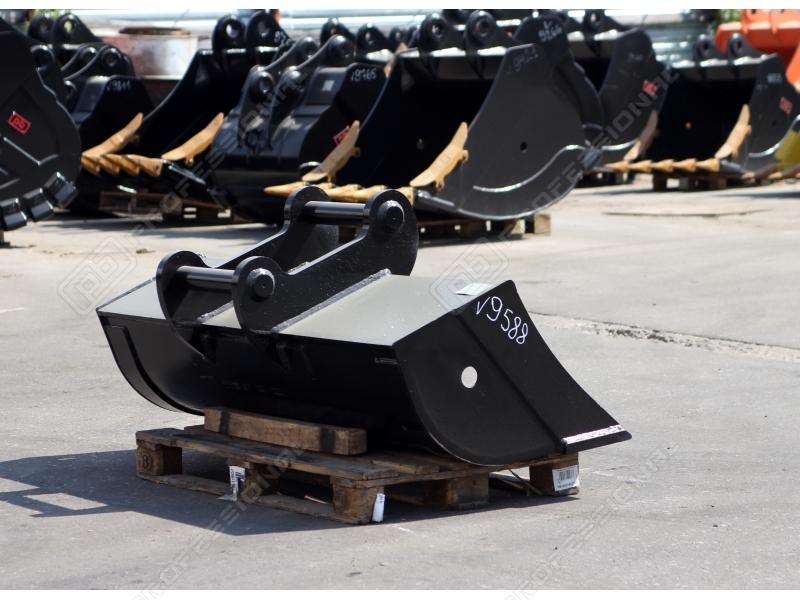

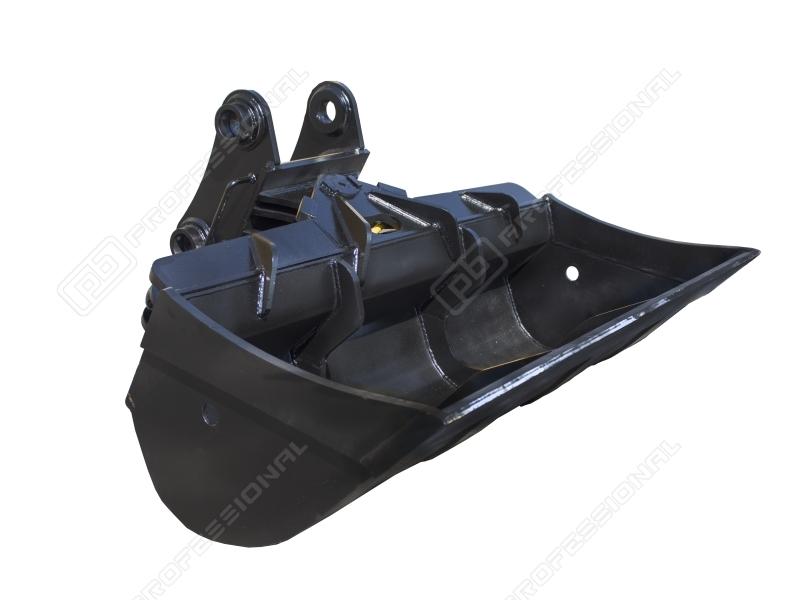

Grading bucket DC-20.15 - used to light bulk materials handling with density up to 1100 kgs/m3 (turf, burnouts, topsoil, etc).
Class of excavator | 18-23 t |
Height H | 920 mm |
Length | 1020 mm |
R | 780 mm |
Width L | 1500 mm |
Capacity | 0,49 m3 |
Weight | 535 kg |
Applied materials and components
1. Bottom | 09Г2С | 10 mm |
2. Blade | 09Г2С | 30 mm |
3. Side wall | 09Г2С | 8 mm |
4. Wing | 09Г2С | 20 mm |
5. Ребро | 09Г2С | 16 mm |
6. Runner | 09Г2С | 8 mm |
7. Pipe | 180х16 | |
8. Beam | 09Г2С | 12 mm |
9. Eye (Lifting eye / Lifting lug) | 09Г2С | 25 mm |
