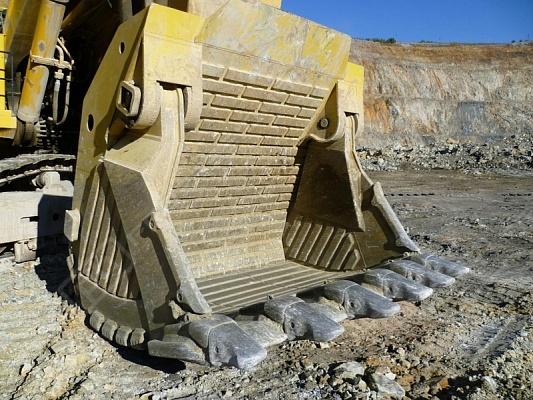

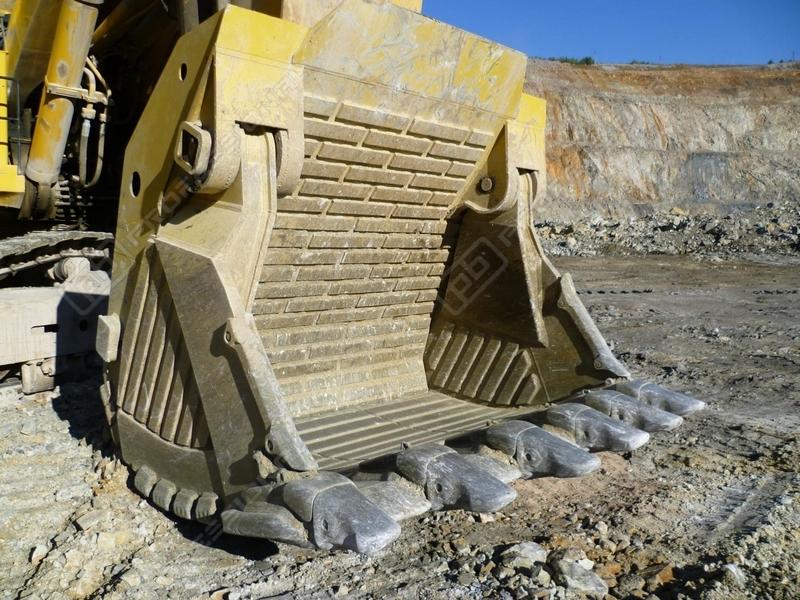

Professional LLC produces Face Shovel buckets for mining excavators.
There are several versions of such buckets produced by Professional LLC. Assembled bucket (equipped with hydraulic cylinders and lubrication system) is the most complicated and expensive kind of attachments for mining excavators. Our Face Shovel buckets are always equipped with high-quality European hydraulic cylinders. As option we can weld additional Chromium Carbide Plates (VAUTID Germany) if bucket is used in highly abrasive soils. Depending on client’s needs it’s also possible to install welded or replaceable lip shroud on our buckets.
Our company manufacturers Face Shovel buckets for all brands and models of mining excavators. Our vast experience and manufacturing capabilities give us an opportunity to produce high-quality goods within the shortest possible time. You can place an order on assembled bucket, jaw or back wall.
Successful operating experience is confirmed by partners Rio Tinto, Glencore, Kinross Gold, Nordgold, ArcelorMittal, Centerra Gold and others.

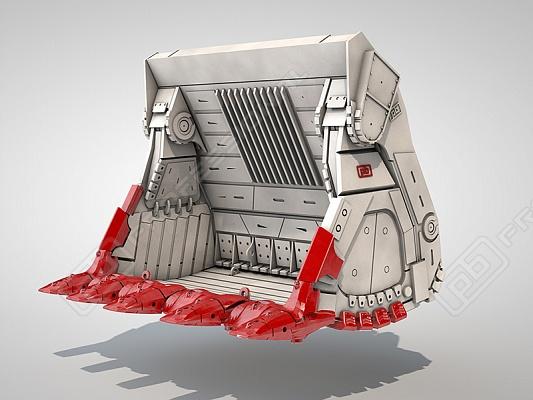

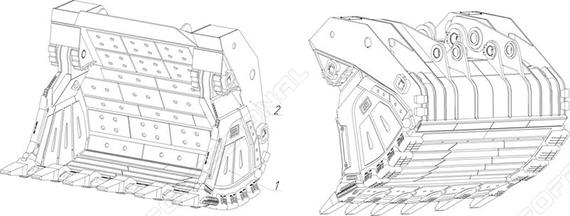

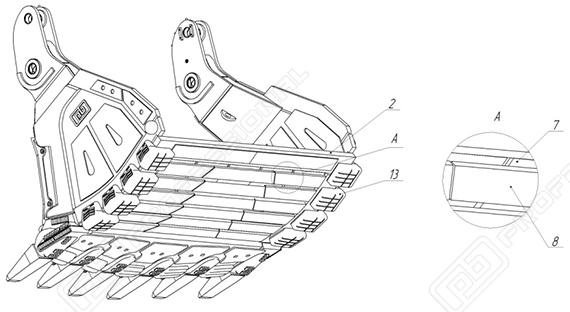

Pattern. Komatsu PC-3000 Face Shovel bucket design.
Bucket parameters
1
Jaw
2
Back wall
Capacity
15 m3
Weight
25 000 kg

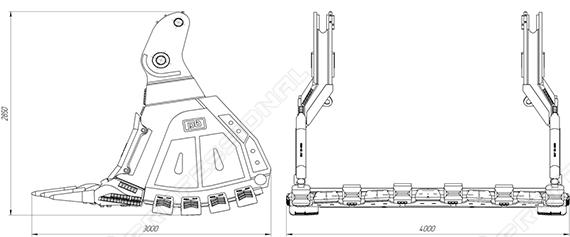

Jaw. Specifications
Width
4000 mm
Height
2850 mm
Length
3000 mm
Weight
13 500 kg

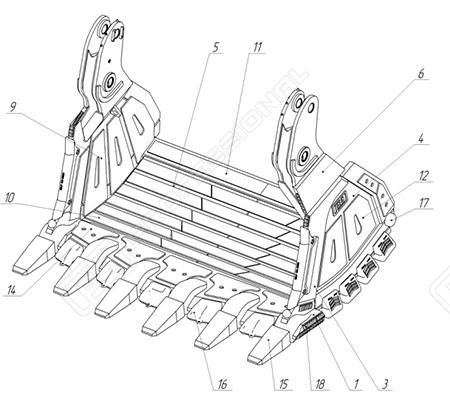

Jaw. Applied materials and components
Description
Material
Thickness/ Quantity
1. Blade
HT-360
140 mm
2. Flapper
HT-360
80 mm
3. Wing
HT-360
80 mm
4. Side wall
HB-400
20 mm
5. Bottom
S690QL
25 mm
6. Lifting eye
S690QL
40 mm
7. Runner
HB-400
15 mm
8. Side reinforcing plate
HB-500
30 mm
9. Side reinforcing plate
HB-500
20 mm
10. Side reinforcing plate
HB-500
20 mm
11. Side reinforcing plate
Overlay
19 mm
12. Side reinforcing plate
HB-500
20 mm
13. Heel shroud
ES6697-7
8 pcs.
14. Overlay
HB-500
20 mm
15. Tooth
XS252RC
6 pcs.
16.Lip shroud
LS550-1750
2+2 pcs.
17. Chocky bar
-
2 pcs.
18. Chocky bar
-
8 pcs.

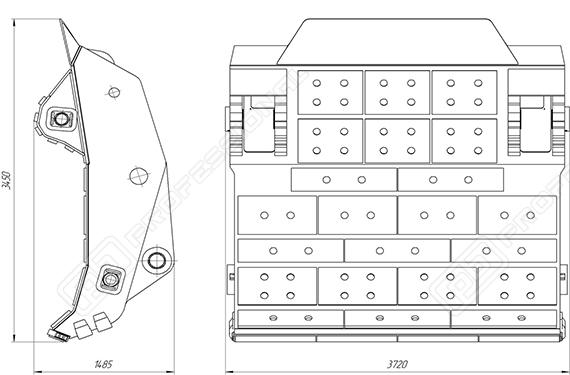

Back wall. Specifications
Width
3720 mm
Height
3450 mm
Weight
11 500 kg
Back wall. Applied materials and components
Description
Material
Thickness, mm/ Quantity, pcs.
1. Bottom
S690QL
20 mm
2. Lip
HB-400
20 mm
3. Eye (Lifting eye / Lifting lug)
S690QL
50 mm
4. Flapper
HT-360
80 mm
5. Side reinforcing plate
HB-500
20 mm
6. Side reinforcing plate
HB-500
30 mm
7. Side reinforcing plate
HB-500
20 mm

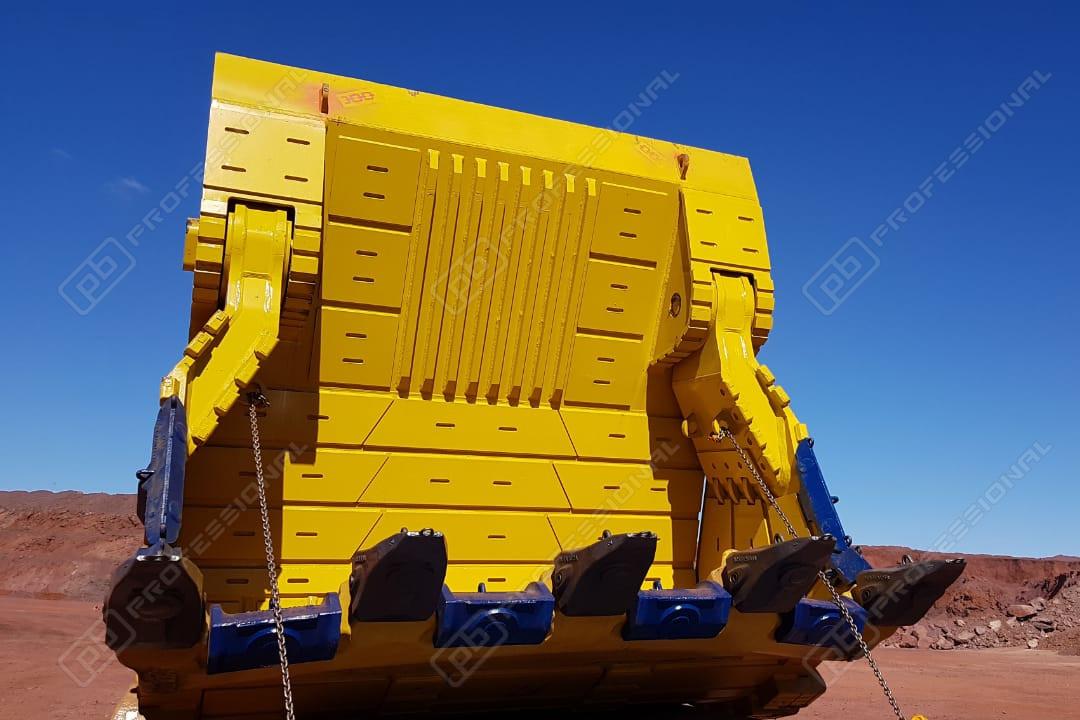

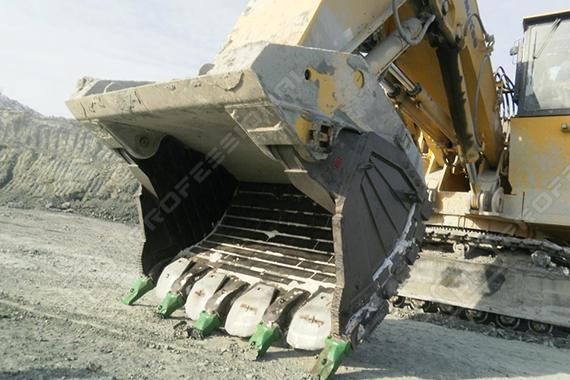

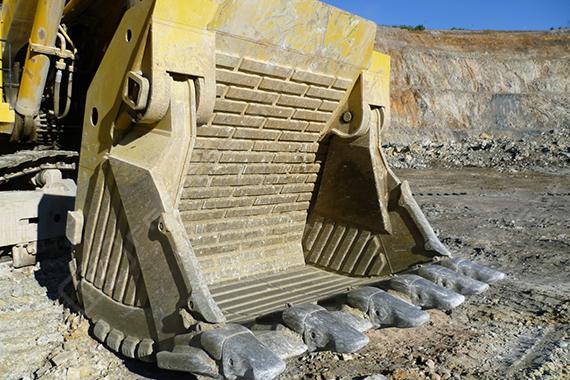

Result

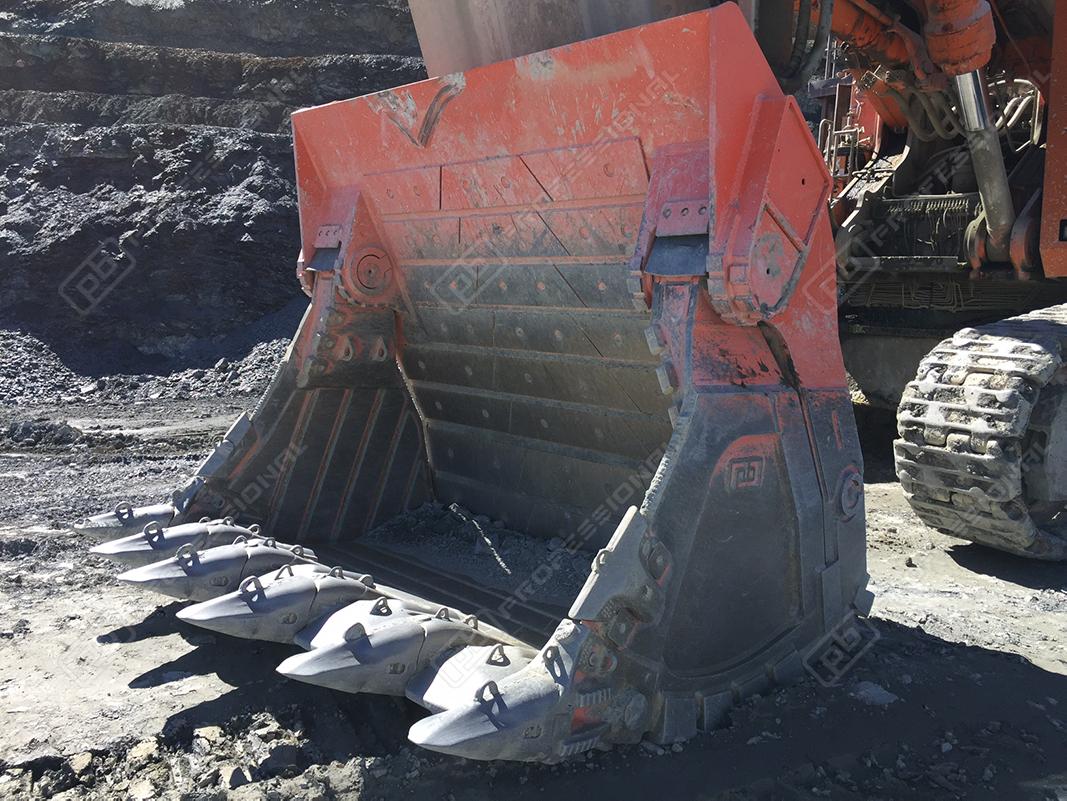

Face shovel bucket
Face shovel buckets we made
Hitachi
Liebherr
Caterpillar
Komatsu

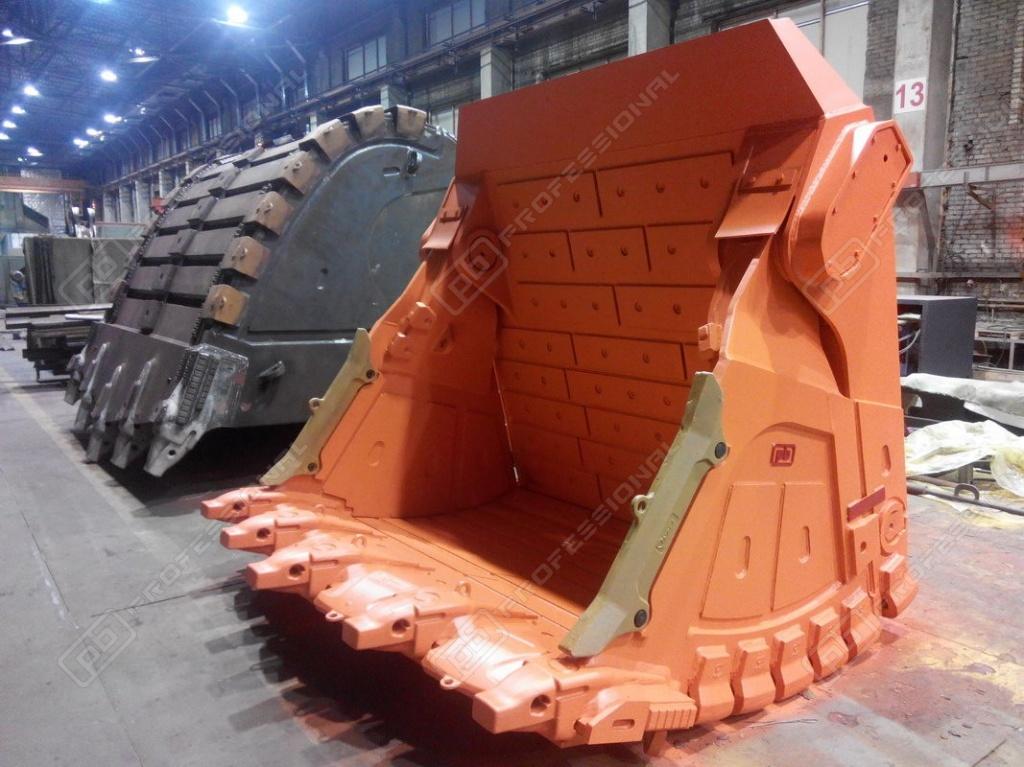

EX1200FS
Face shovel bucket

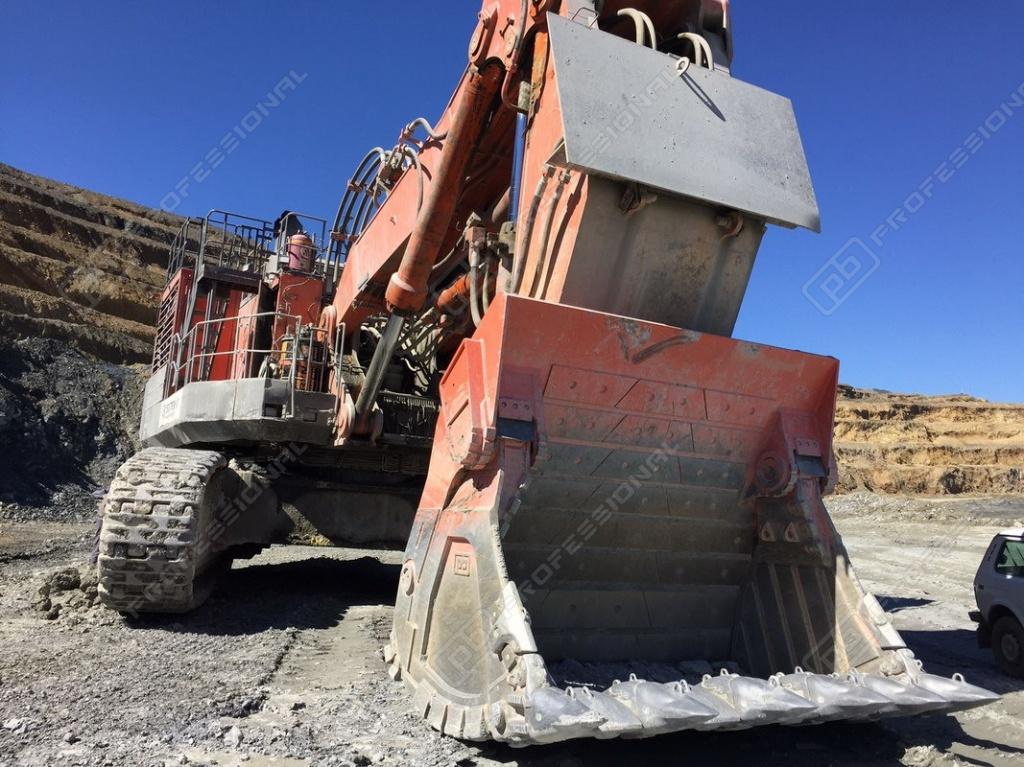

EX2500FS
Face shovel bucket

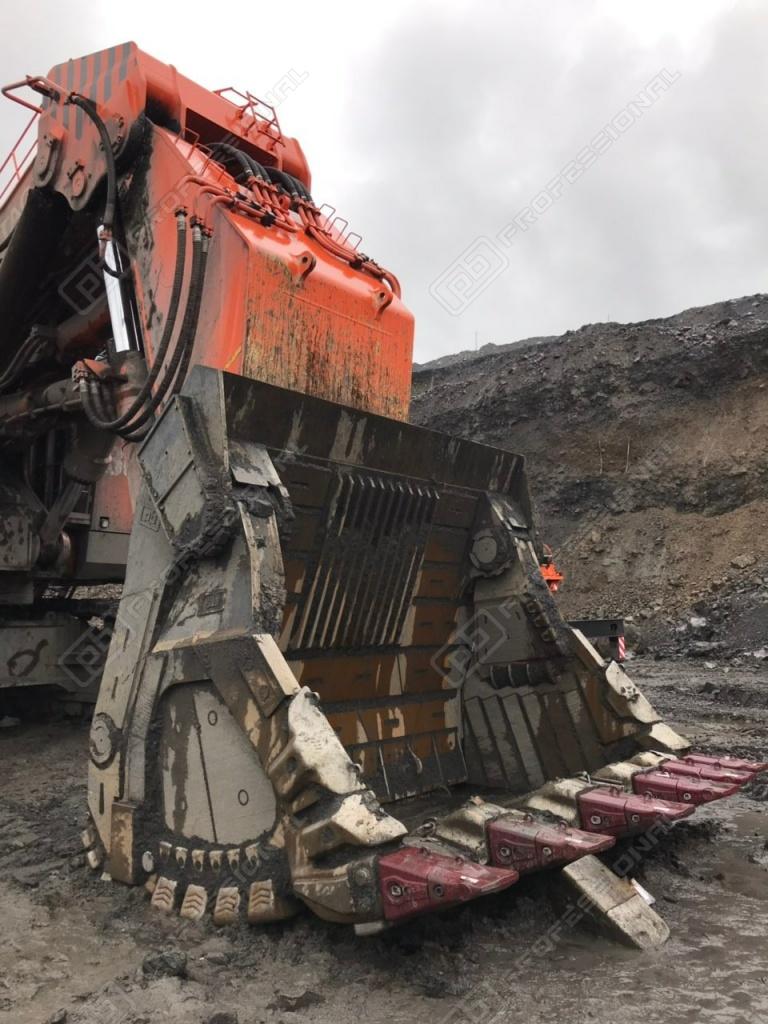

EX5600
Face shovel bucket

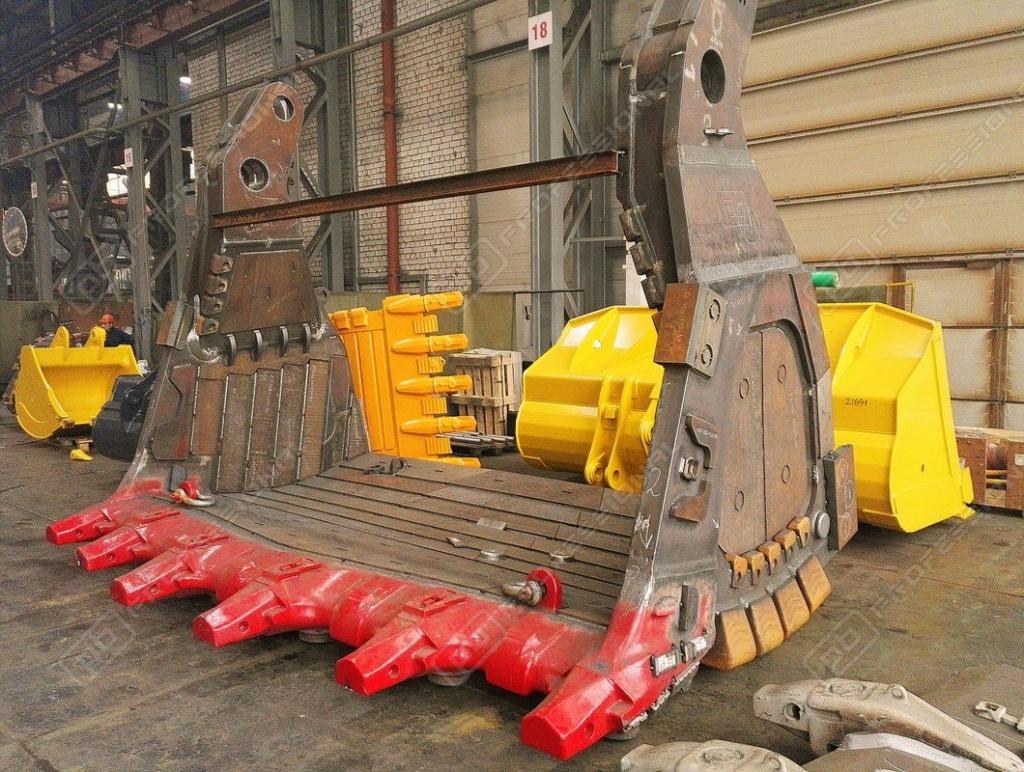

EX5600FS
Face shovel bucket

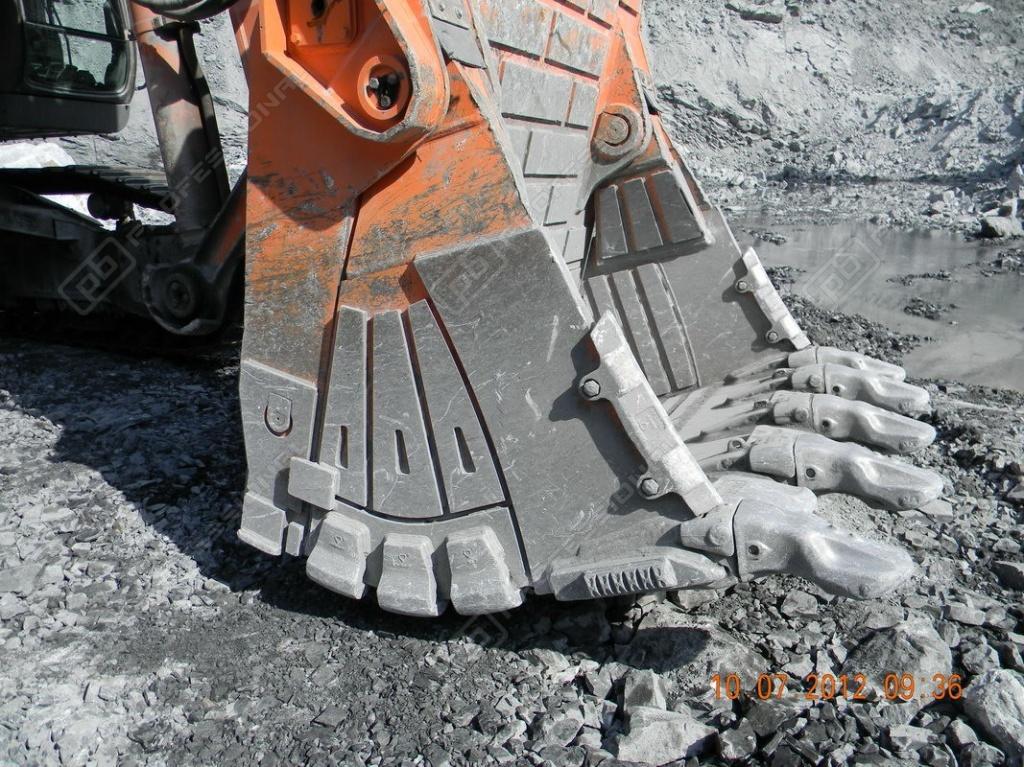

ZX850FS
Face shovel bucket

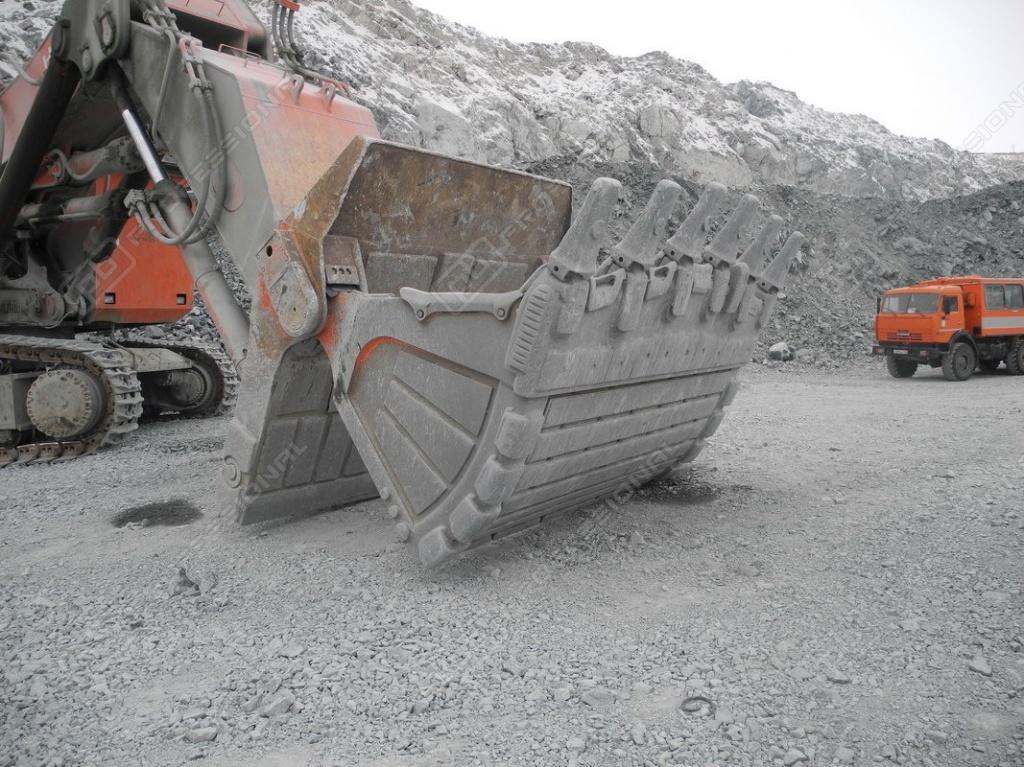

ЕХ1900FS
Face shovel bucket

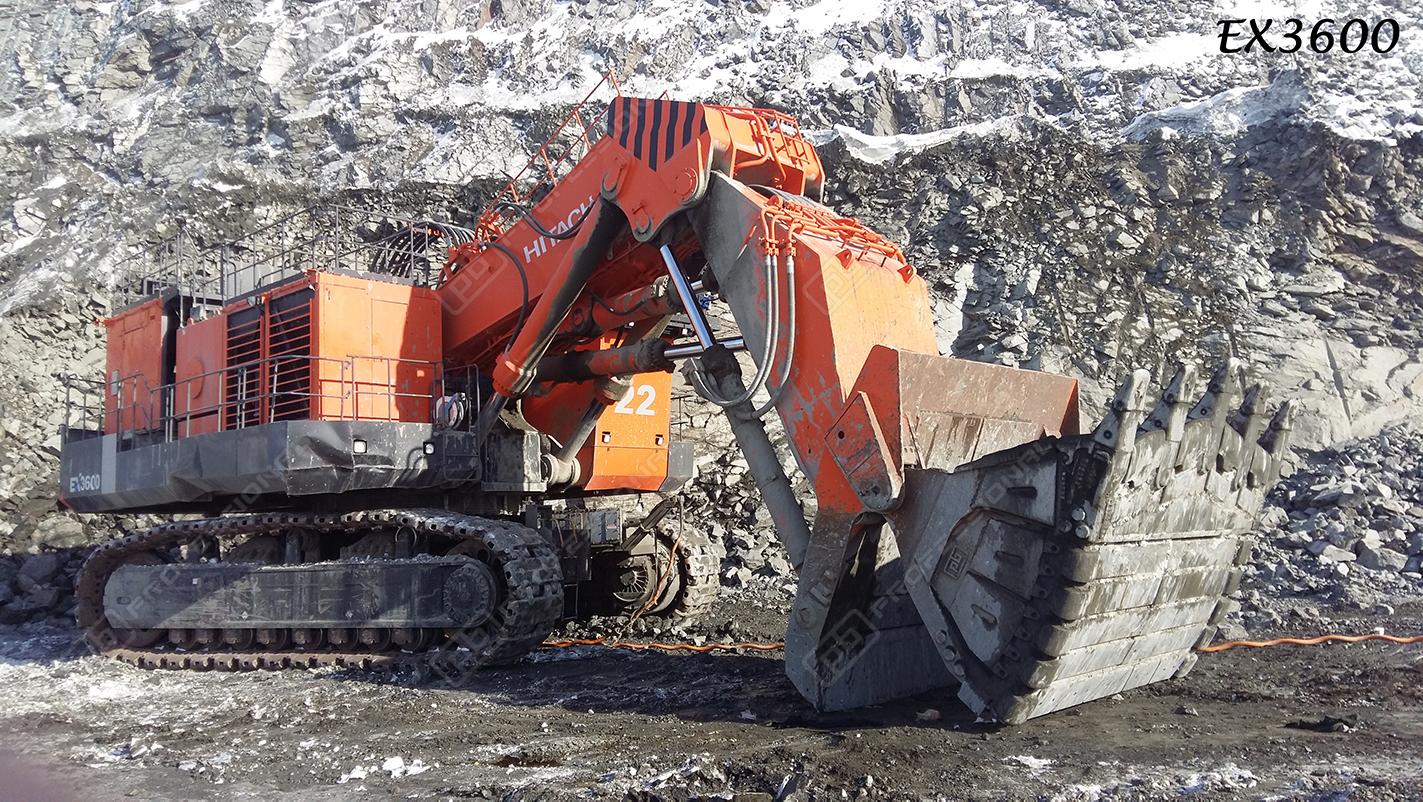

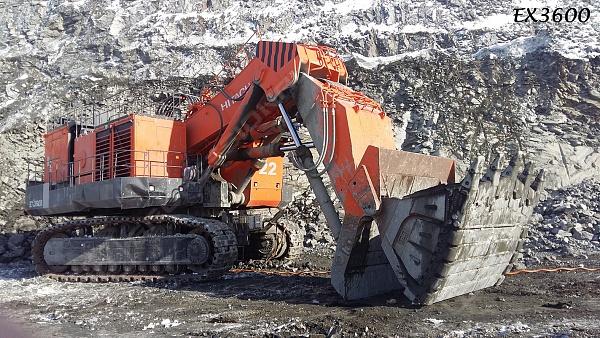

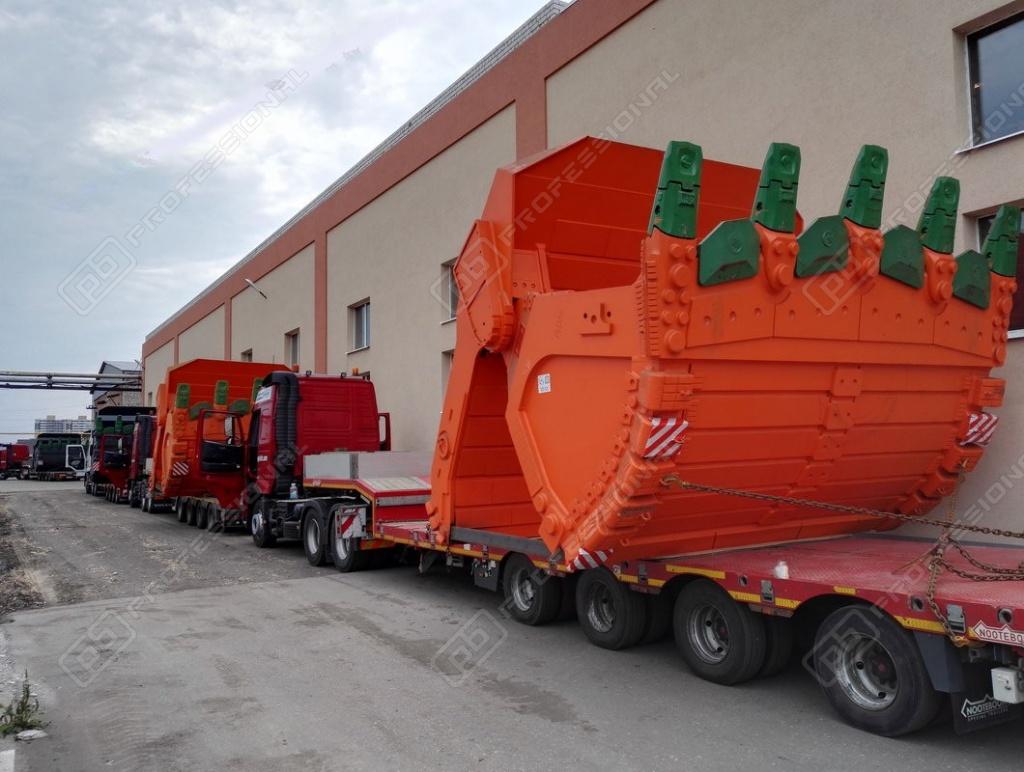

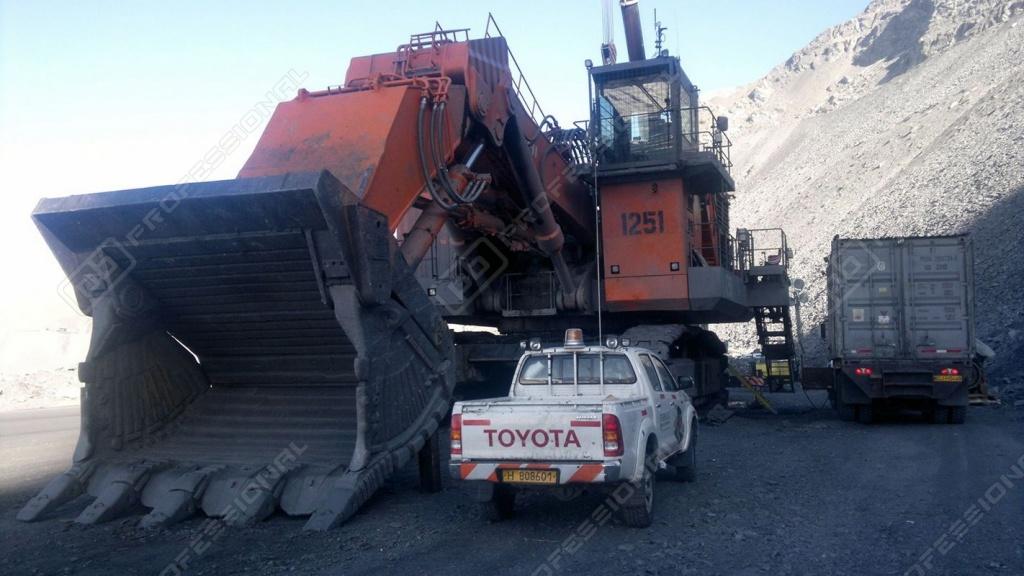

EX3600FS
EX3600FS
Face shovel bucket
EX3600FS
Face shovel bucket

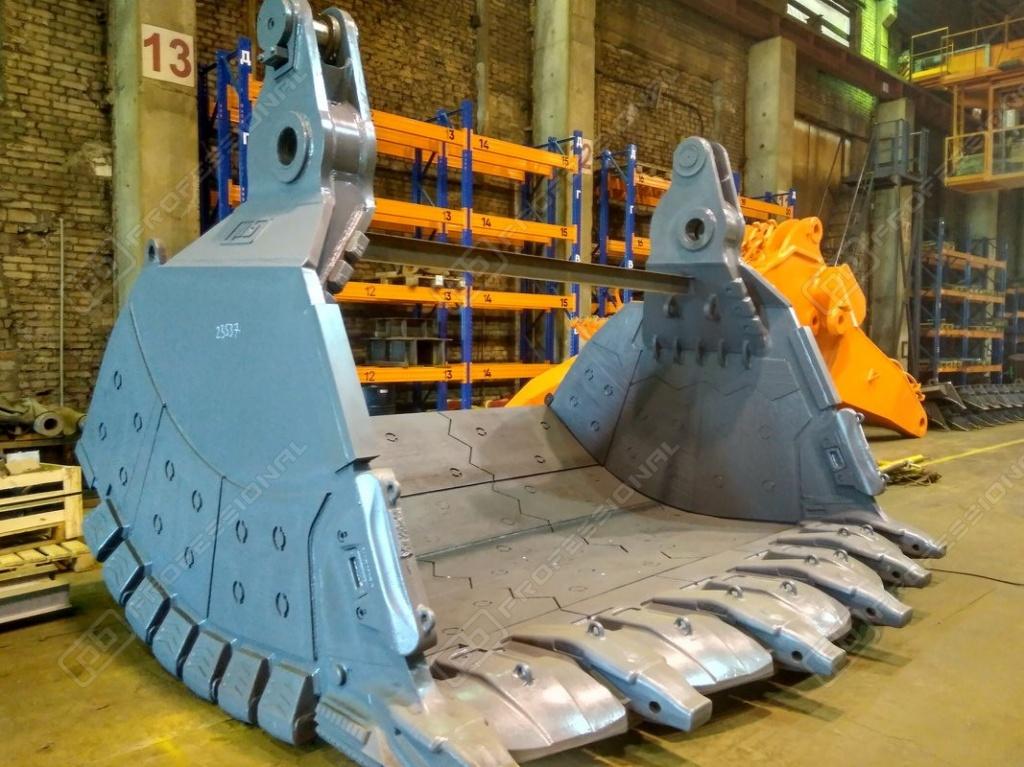

R9400FSJ
Face shovel bucket

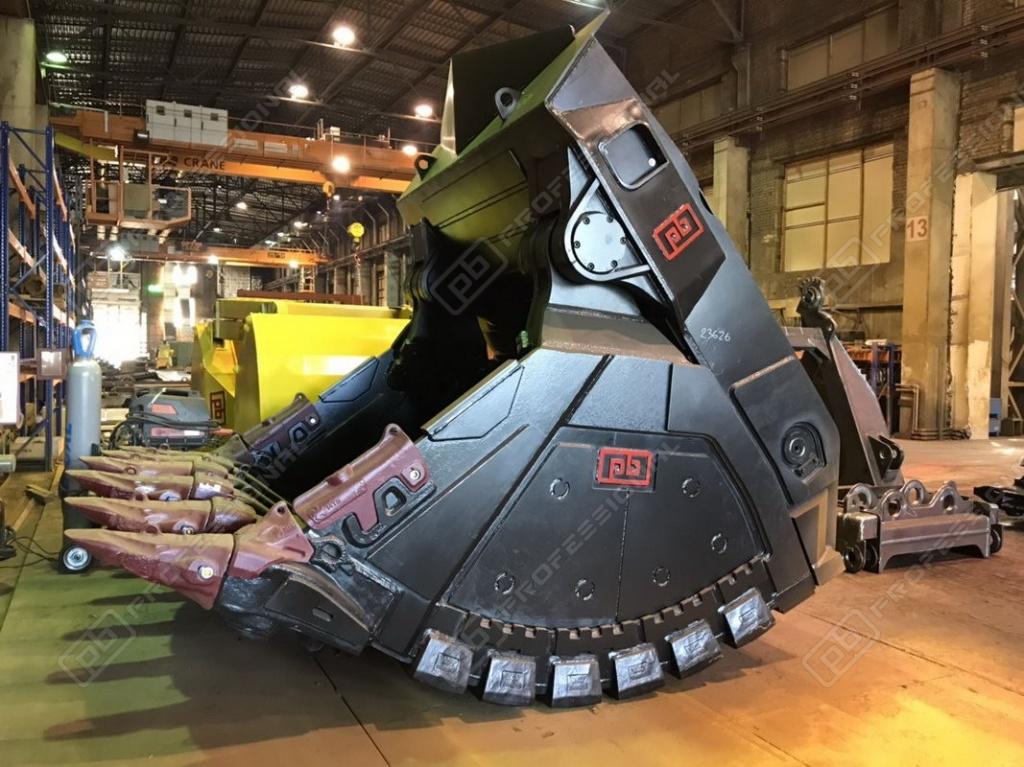

R9200FS
Face shovel bucket

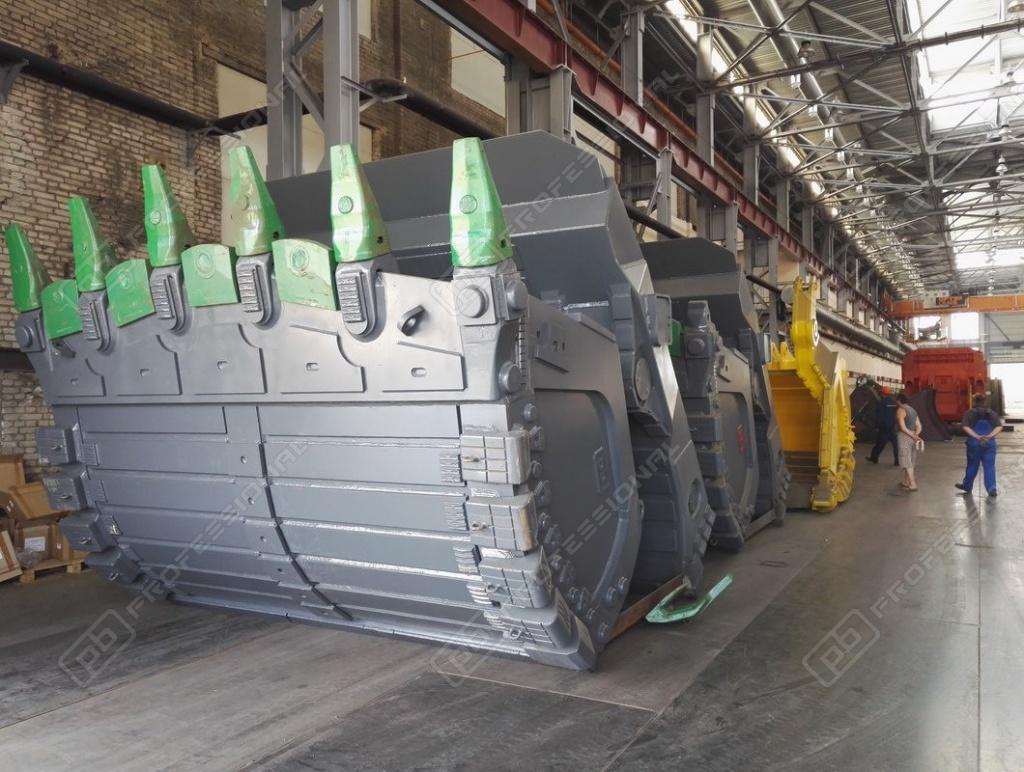

R9350FS
Face shovel bucket

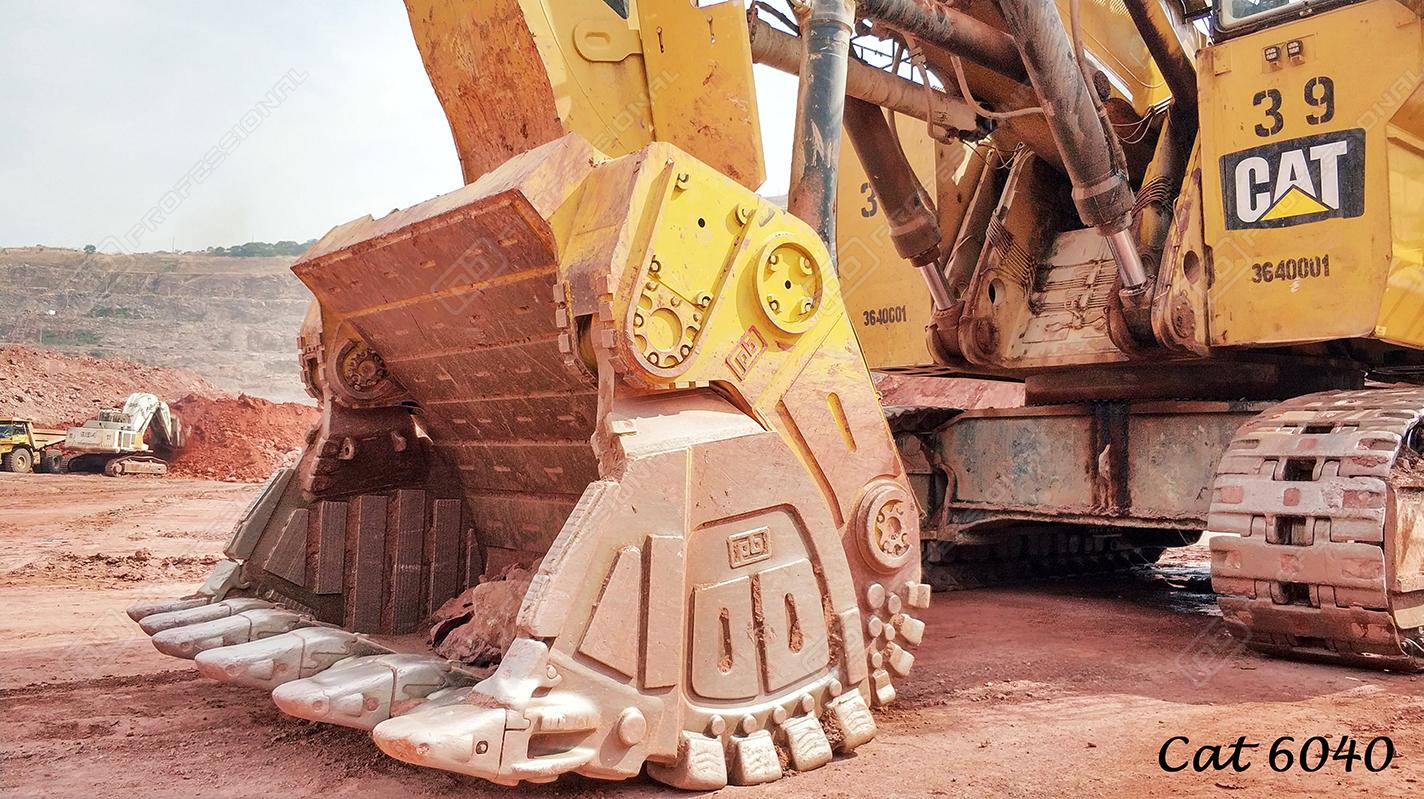

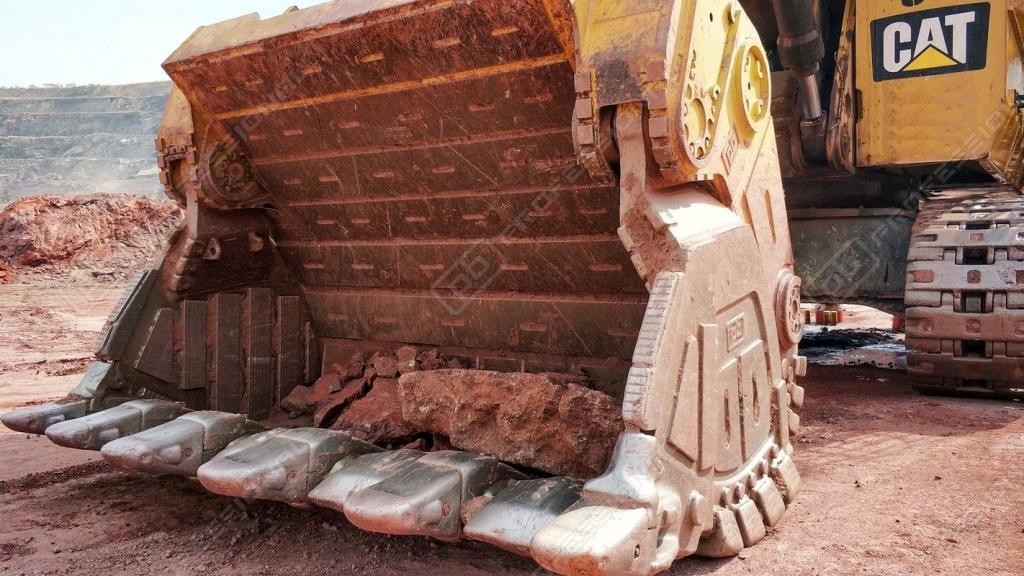

6040FS
Face shovel bucket

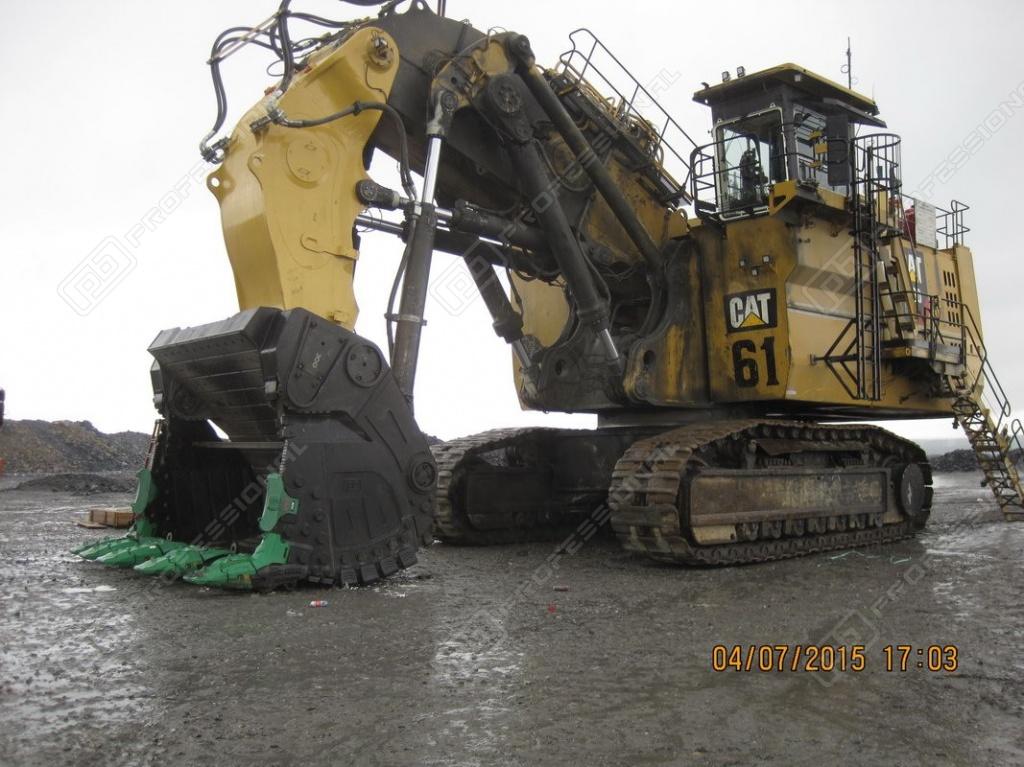

6060FS
Face shovel bucket

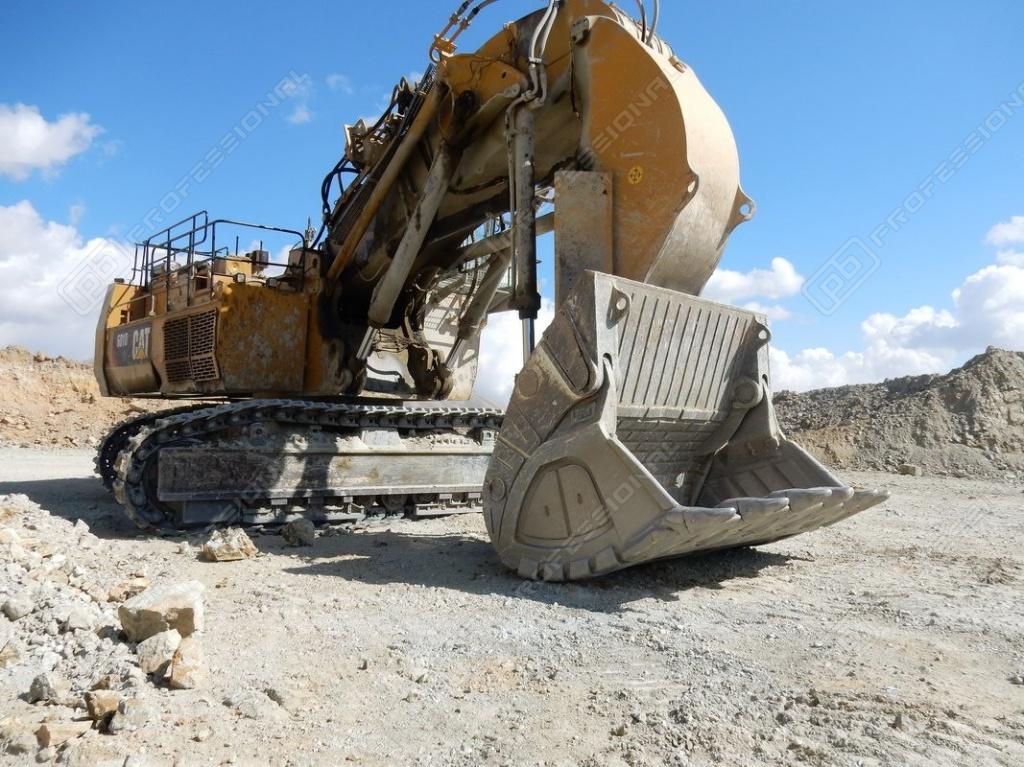

6018FS
Face shovel bucket

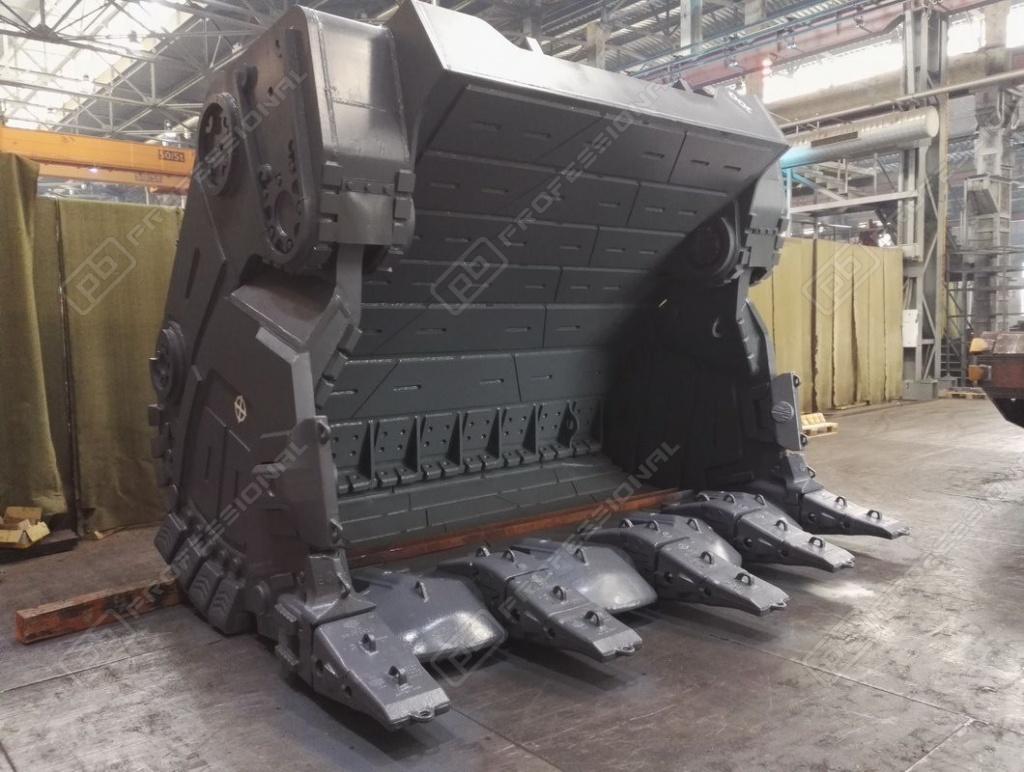

6050FS
Face shovel bucket

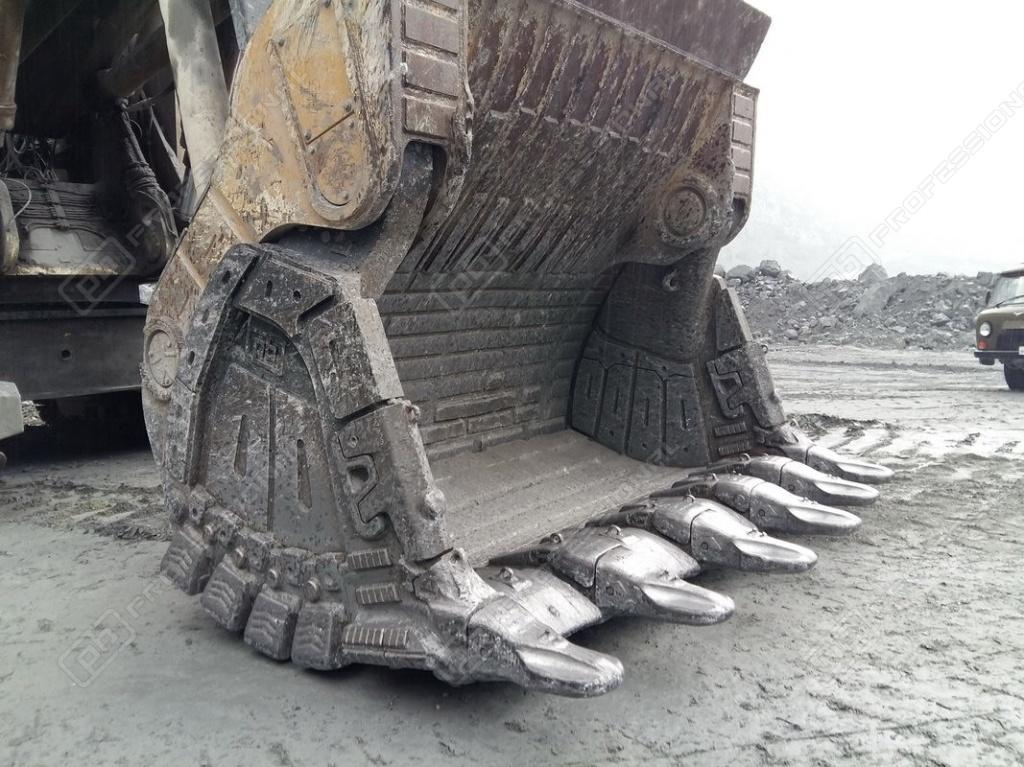

6030FS
Face shovel bucket

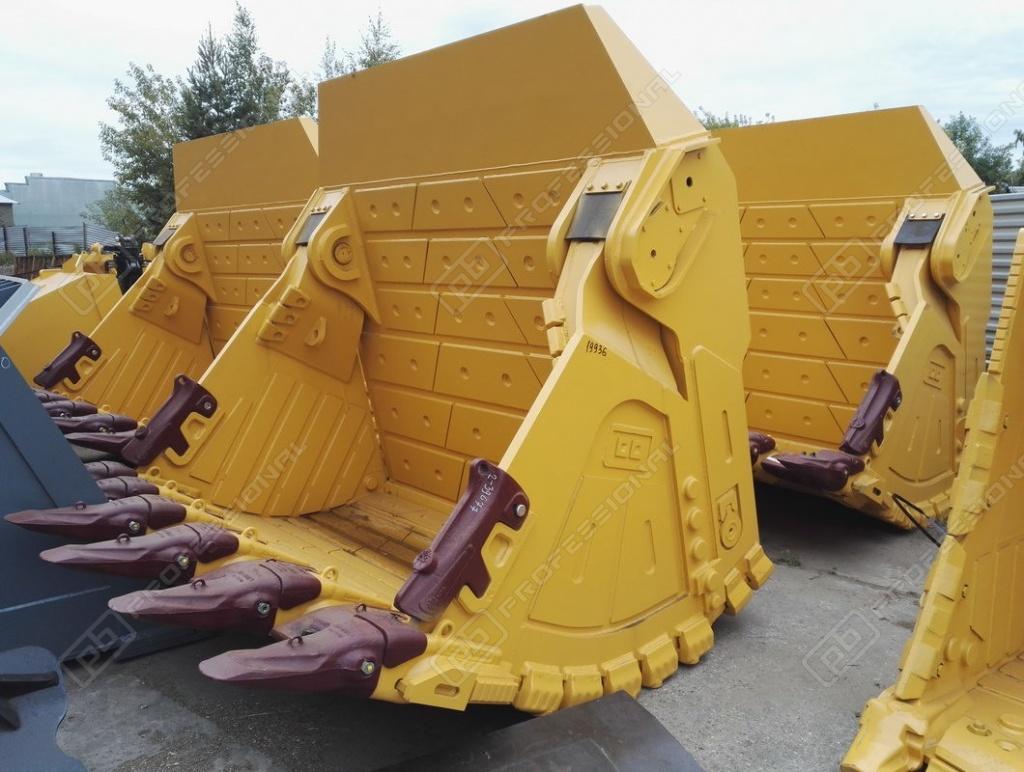

PC1250FS
Face shovel bucket
