Grading bucket DC-27.17

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

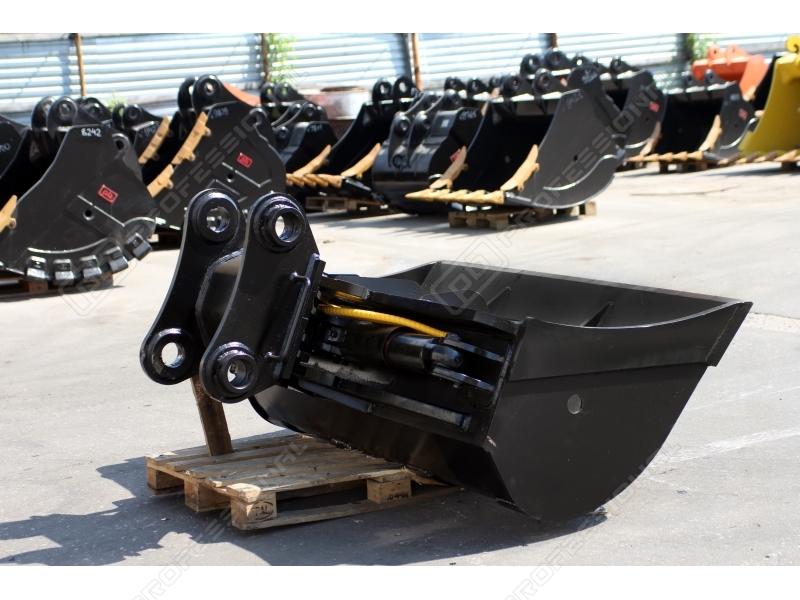

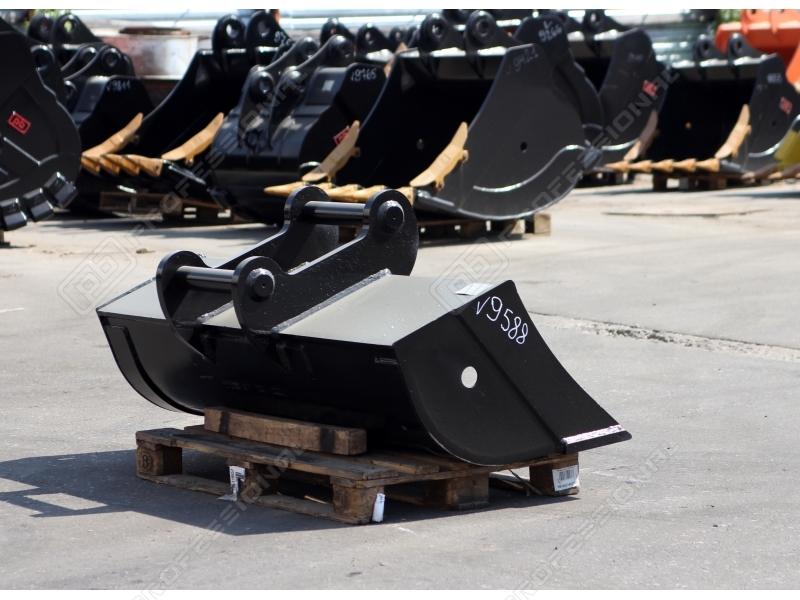

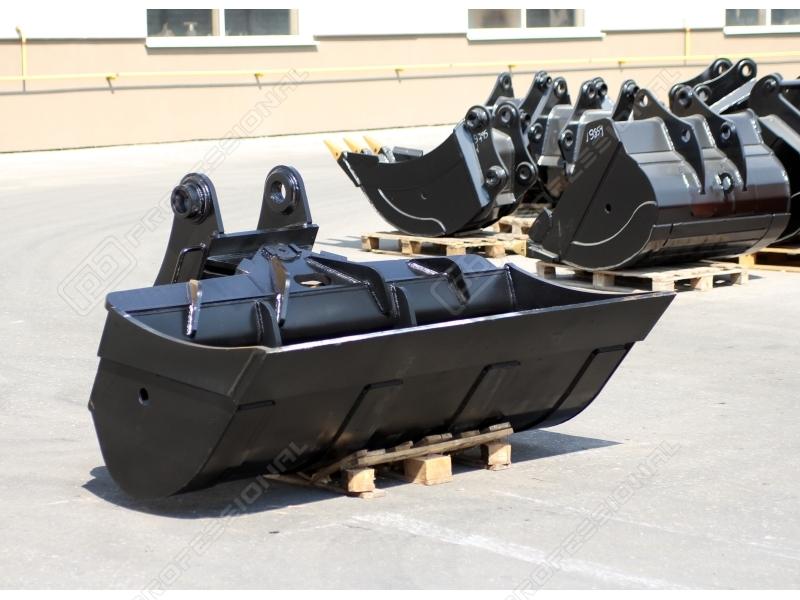

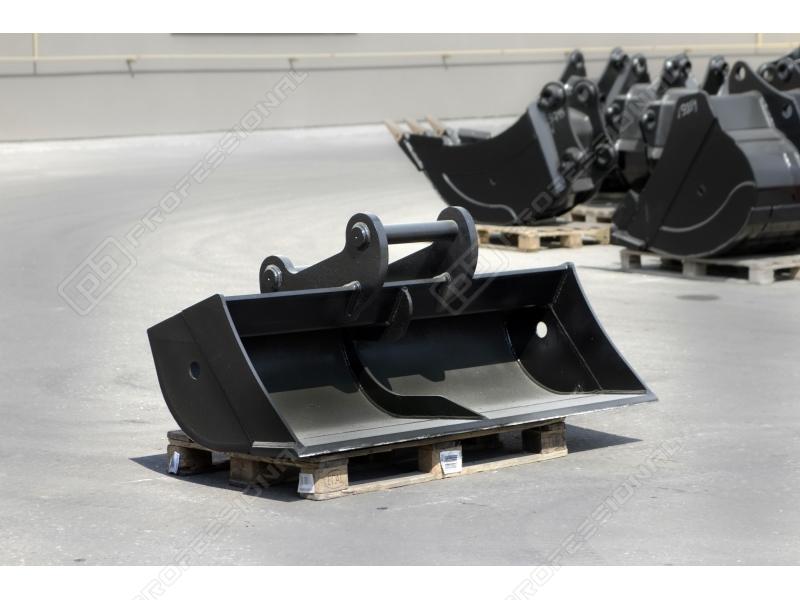

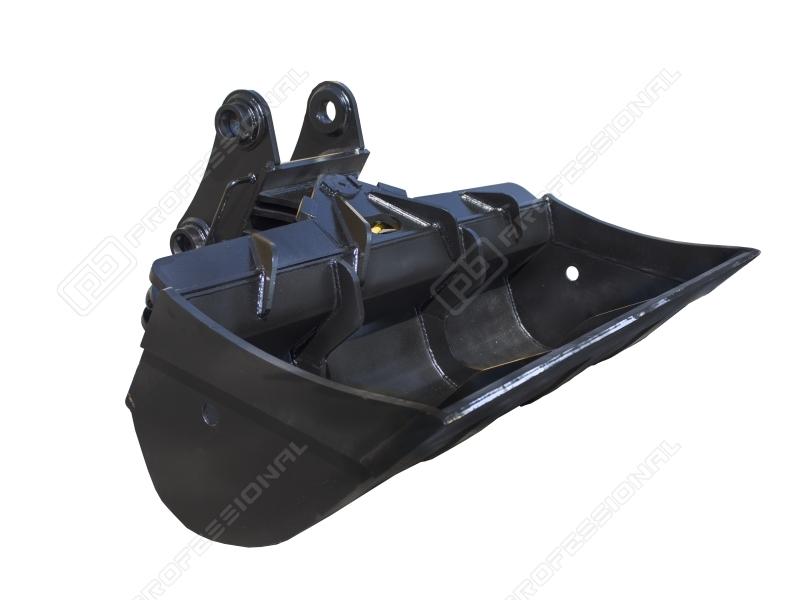

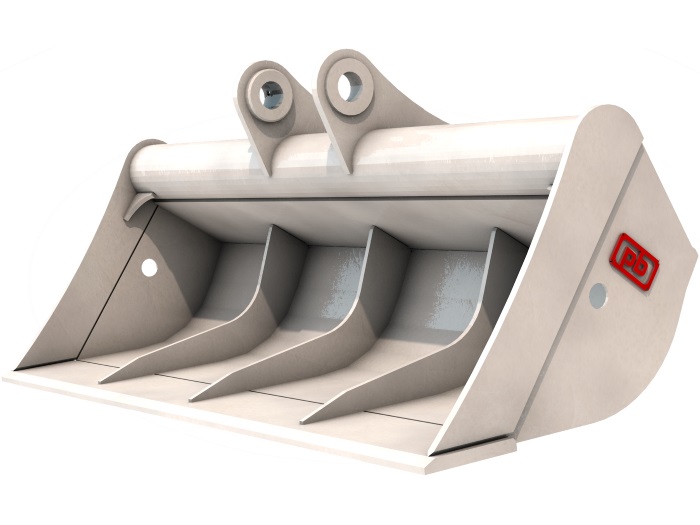

Grading bucket DC-27.17 - used to light bulk materials handling with density up to 1100 kgs/m3 (turf, burnouts, topsoil, etc).

Basic technical characteristics
Class of excavator24-30 t
Height H1120 mm
Length1090 mm
R910 mm
Width L1700 mm
Capacity0,80 m3
Weight805 kg

Applied materials and components

1. Bottom09Г2С 10 mm
2. Blade09Г2С36 mm
3. Side wall09Г2С10 mm
4. Wing09Г2С25 mm
5. Ребро09Г2С16 mm
6. Runner09Г2С10 mm
7. Pipe180х16
8. Beam09Г2С16 mm
9. Eye (Lifting eye / Lifting lug)09Г2С30 mm
DC2717
