Price: call us or send an enquiry
Availability: in stock

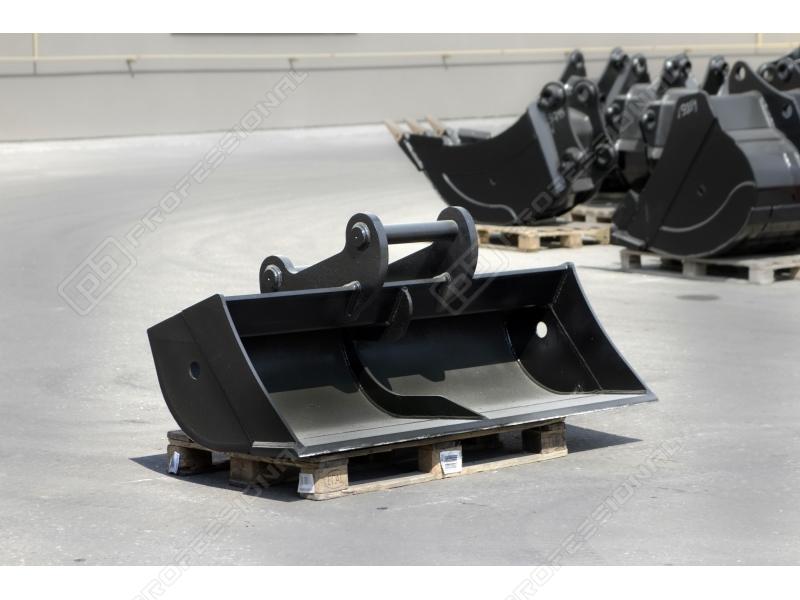

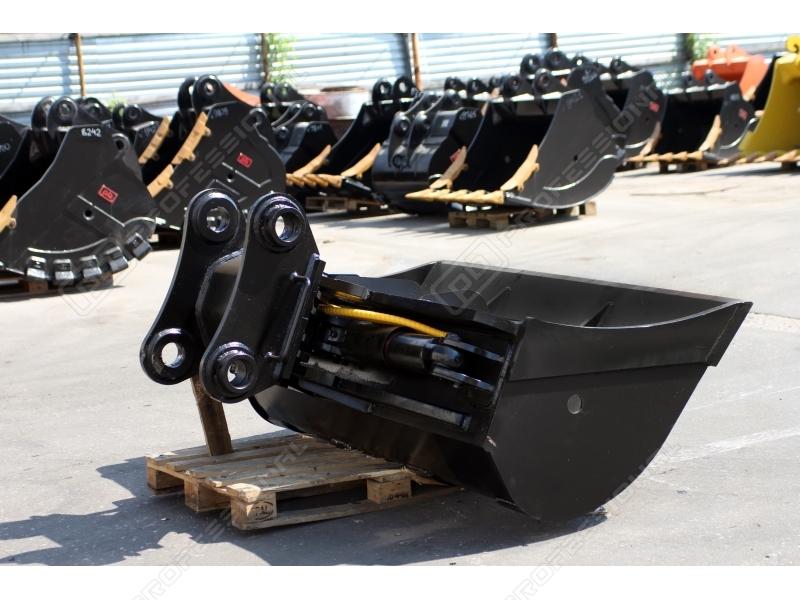

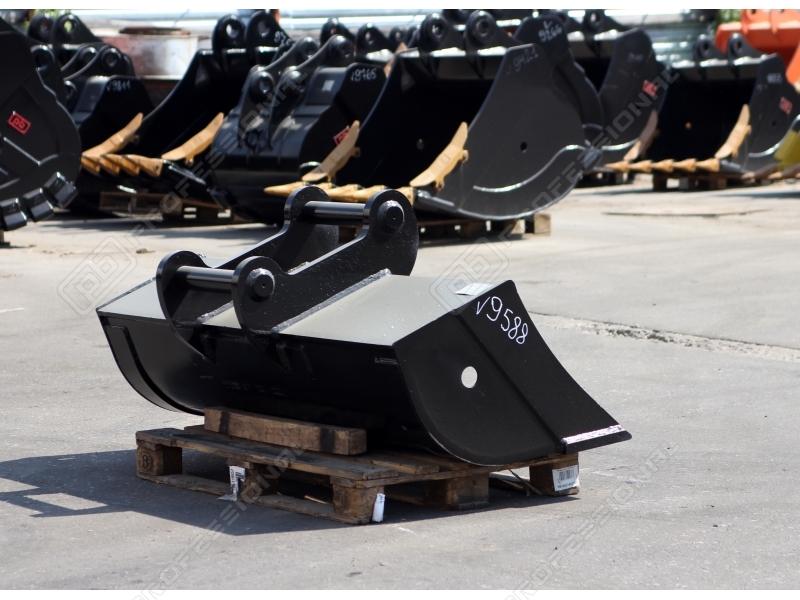

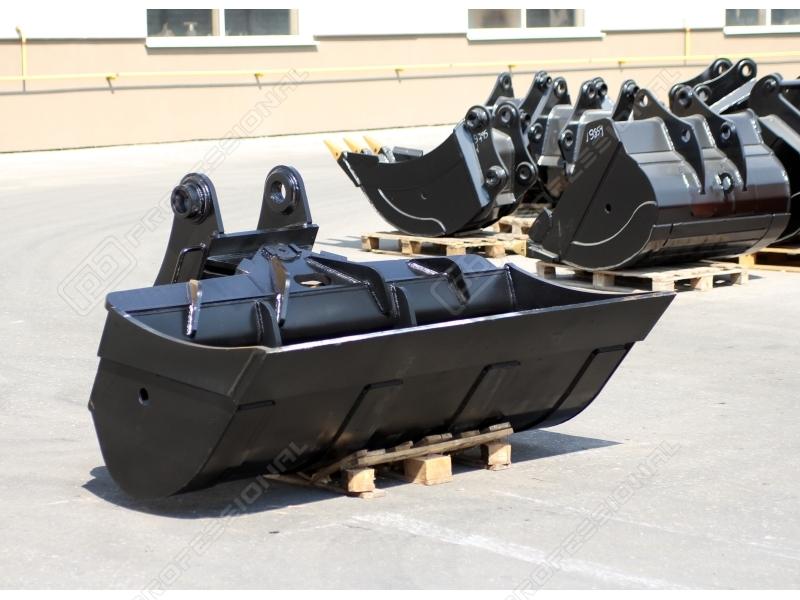

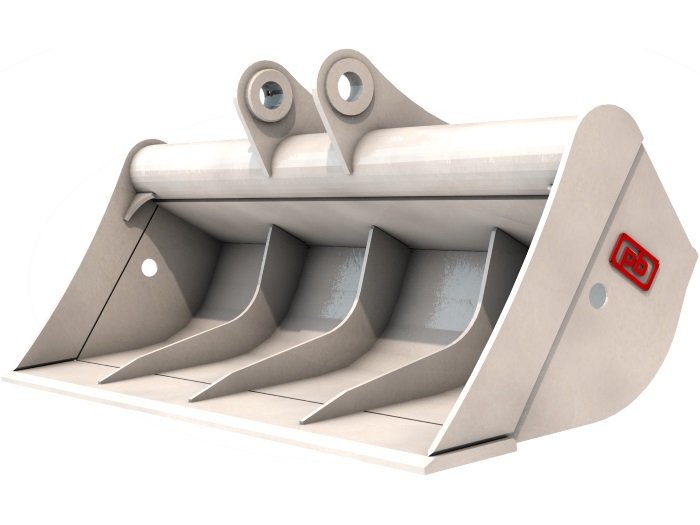

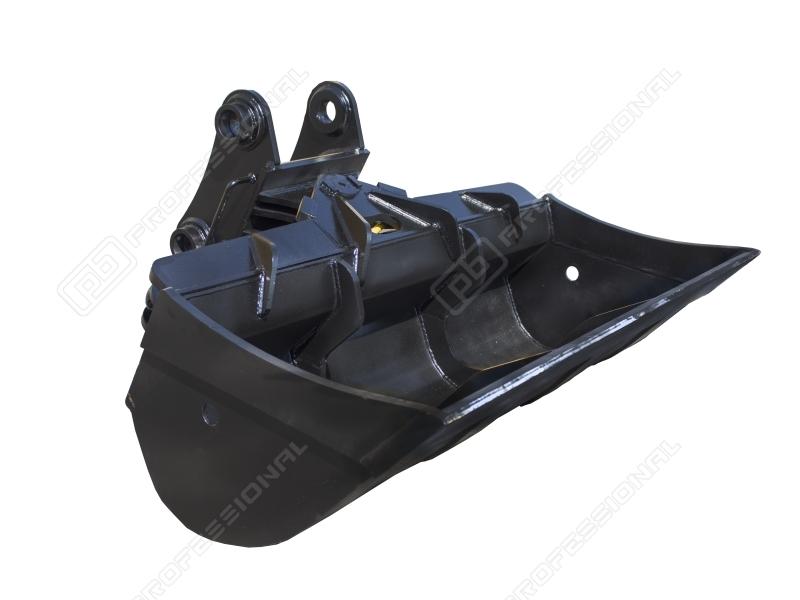

Grading bucket DC-27.23 - used to light bulk materials handling with density up to 1100 kgs/m3 (turf, burnouts, topsoil, etc).
| Class of excavator | 24-30 t |
| Height H | 1120 mm |
| Length | 1090 mm |
| R | 910 mm |
| Width L | 2300 mm |
| Capacity | 1,11 m3 |
| Weight | 985 kg |

Applied materials and components
| 1. Bottom | 09Г2С | 10 mm |
| 2. Blade | 09Г2С | 36 mm |
| 3. Side wall | 09Г2С | 10 mm |
| 4. Wing | 09Г2С | 25 mm |
| 5. Ребро | 09Г2С | 16 mm |
| 6. Runner | 09Г2С | 10 mm |
| 7. Pipe | 180х16 mm | |
| 8. Beam | 09Г2С | 16 mm |
| 9. Eye (Lifting eye / Lifting lug) | 09Г2С | 30 mm |
