Price: call us or send an enquiry
Availability: in stock
| Class of excavator | 16-25 t |
| Weight | 590 kg |
| Capacity | 0,5 m3 |
| Width at the base | 400 |
| Inclination | 75° |
| Bucket teeth quantity | 2 pcs. |
| Height, H | 1400 mm |
| Length, B | 1480 mm |
| L1 | 680 mm |
| L2 | 1050 mm |
| H1 | 1500 mm |

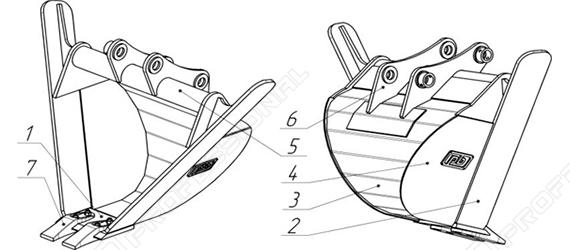

Applied materials and components
| 1. Blade | 09Г2С | 40 mm |
| 2. Wing | 09Г2С | 25 mm |
| 3. Bottom | 09Г2С | 8 mm |
| 4. Side wall | 09Г2С | 8 mm |
| 5. Beam | 09Г2С | 16 mm |
| 6. Eye (Lifting eye / Lifting lug) | 09Г2С | 25 mm |
| 7. Teeth | J350 |
