Price: call us or send an enquiry
Availability: in stock

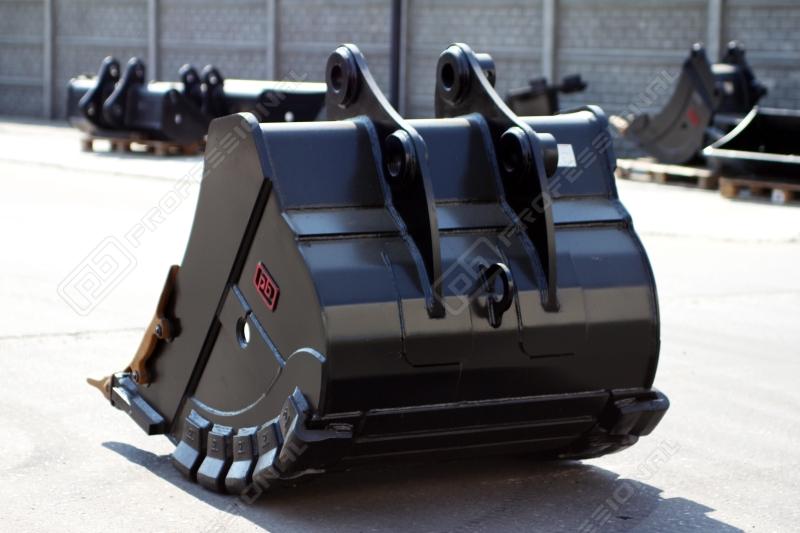

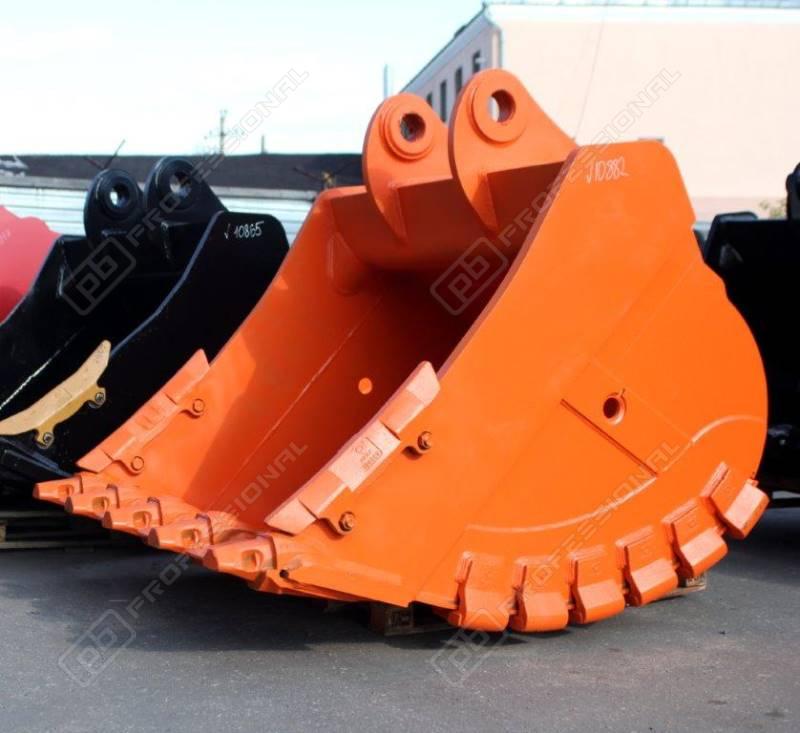

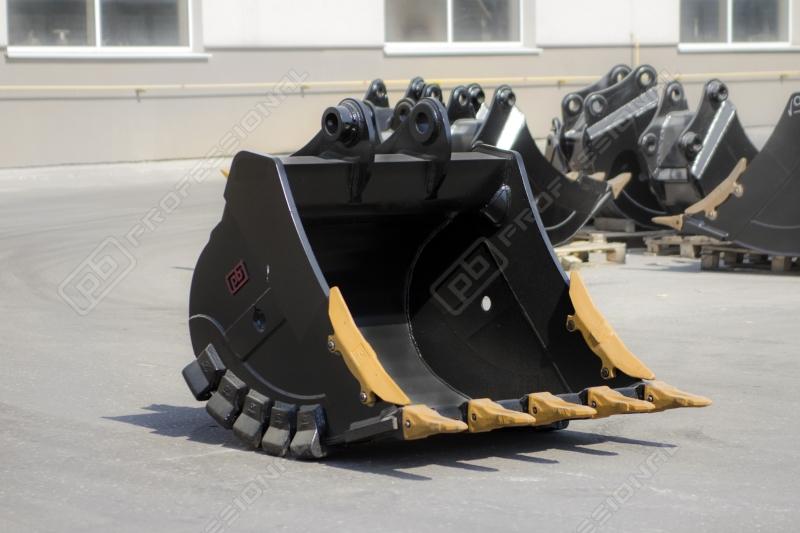

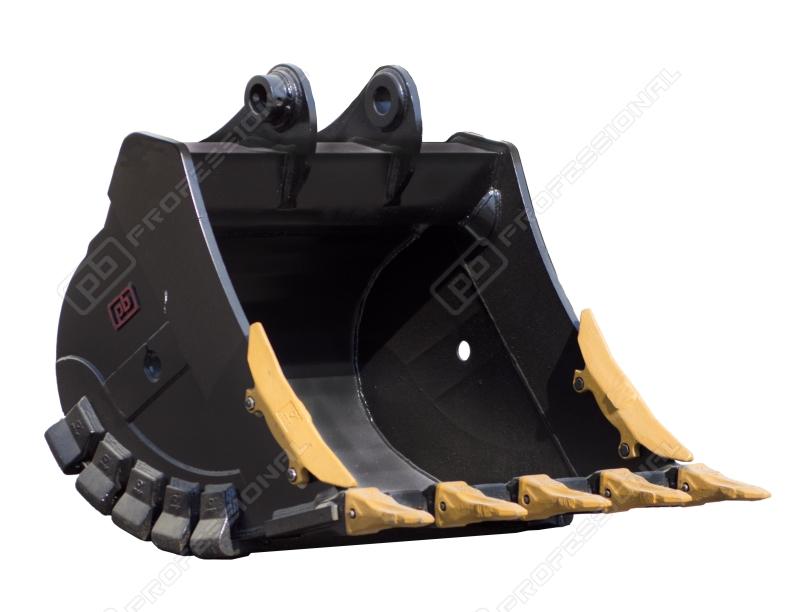

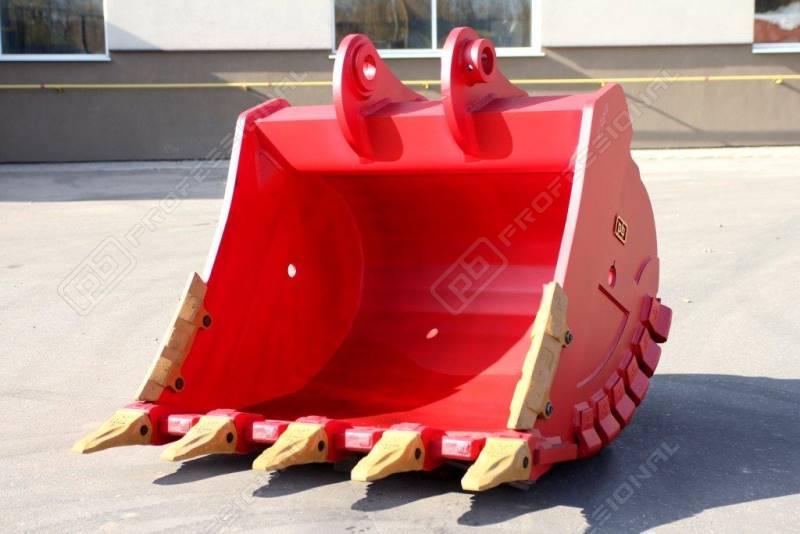

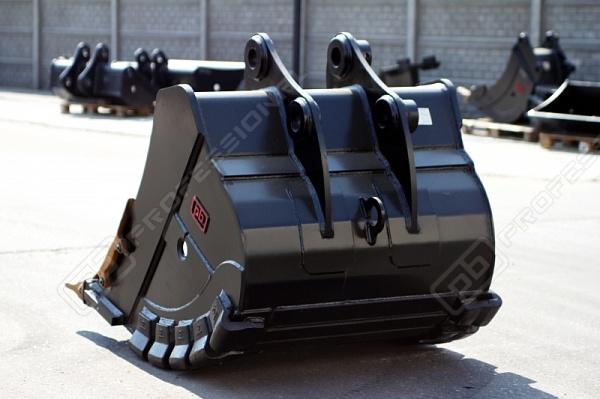

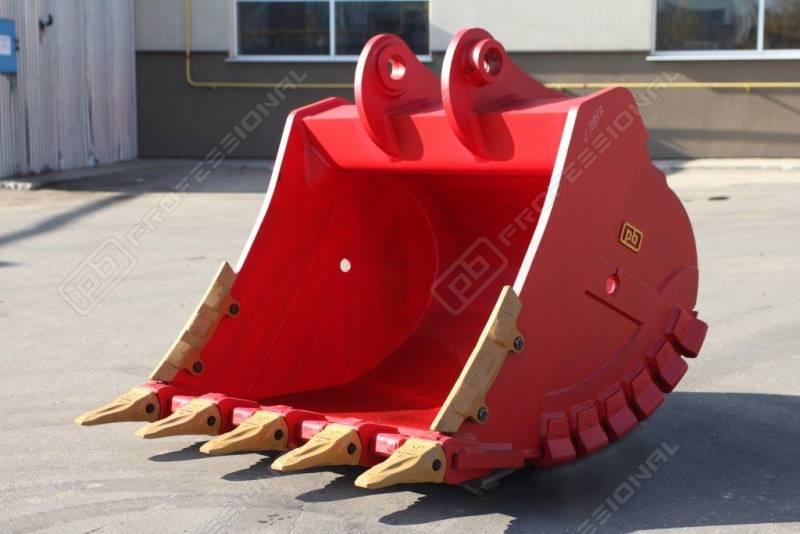

Standart rock-duty bucket RD-16.10 – used in soil excavation with density up to 2000kgs/m3 and I-II abrasion class.
Applicability к технике:
Class of excavator | 12-18 t |
Height H | 1250 mm |
Length | 1500 mm |
R | 1070 mm |
Width L | 1000 mm |
Capacity | 0,7 m3 |
Weight | 750 kg |
Bucket teeth quantity | 4 pcs. |
Applied materials and components
1. Bottom | HB-450 | 8 mm |
2. Blade | HT-400 | 35 mm |
3. Side wall | 10ХСНД | 8 mm |
4. Wing | HB-400 | 25 mm |
5. Side reinforcing plate | HB-450 | 8 mm |
6. Runner | HB-450 | 10 mm |
7. Beam | 10ХСНД | 12 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 20 mm |
9. Heel | HS175-140 | 8 pcs. |
10. Протектор/бокорез | 9J9600 | 2 pcs. |
11. Teeth | Esco U30C, Hehsley, XS20RC, 1U3302RC, 61N4-31210, 61N6-31310 | |
12. Межзуб. защита | 208-934-2170-110 |
