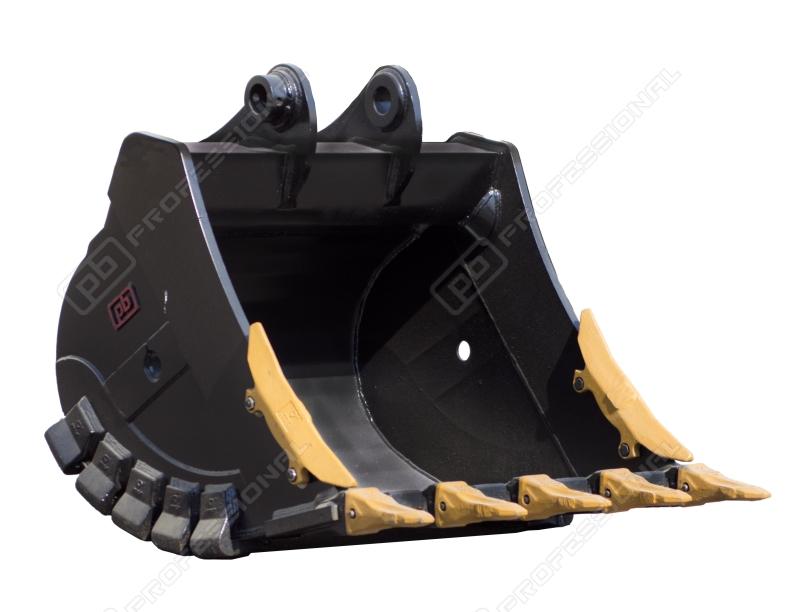

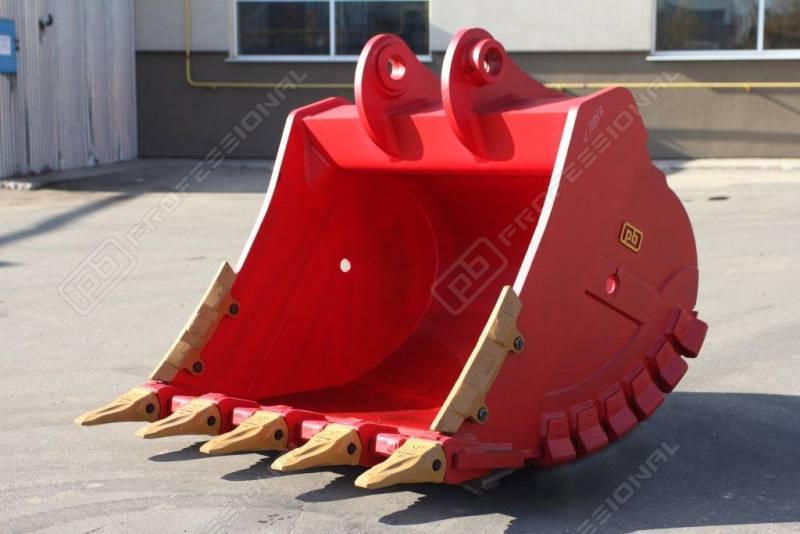

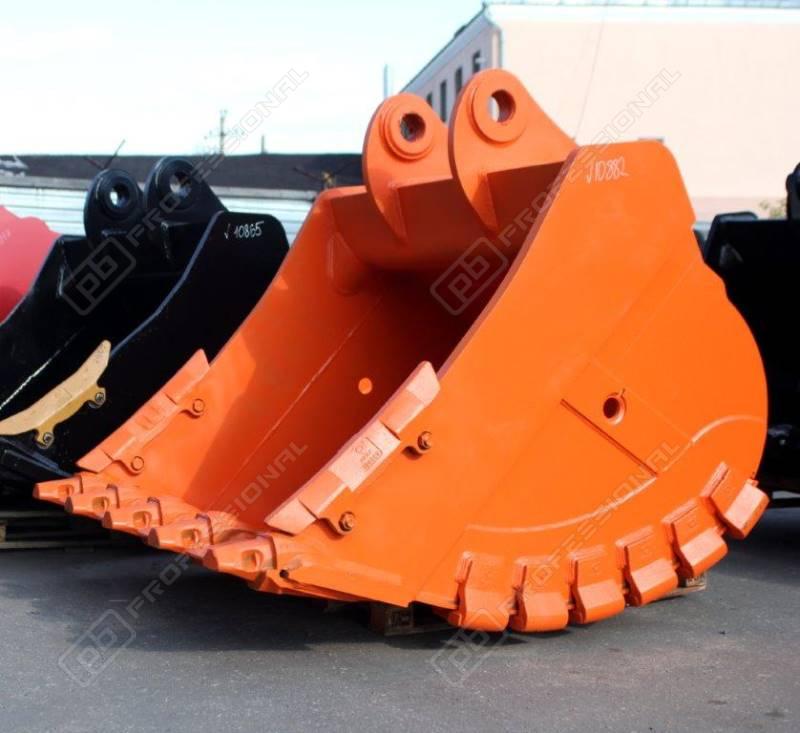

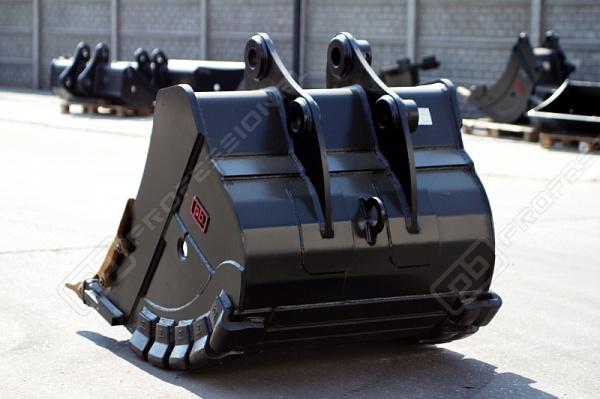

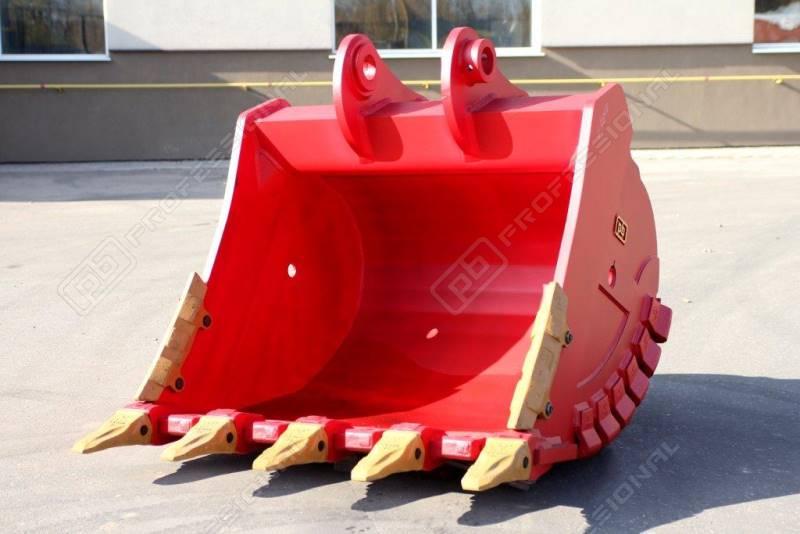

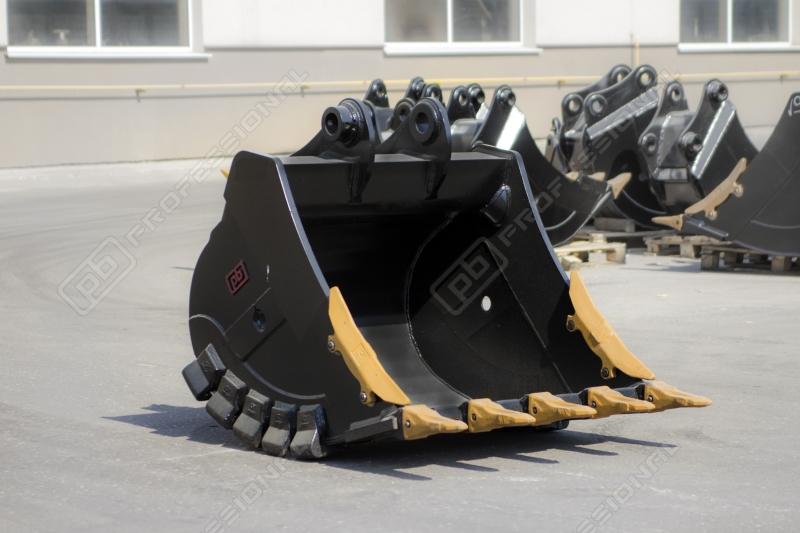

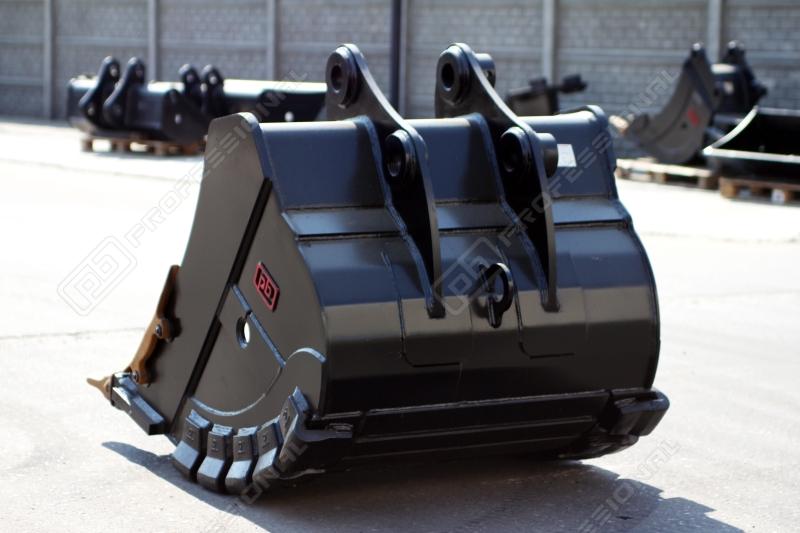

Standart rock-duty bucket RD-41.14

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

Standart rock-duty bucket RD-41.14 – used in soil excavation with density up to 2000kgs/m3 and I-II abrasion class.

Applicability к технике:

  • KomatsuPC-400, PC-450
  • HyundaiR-380, D-450
  • Hitachi EX-400, ZX-450
  • DoosanDX-420, S-420
  • VolvoEC-360, EC-380

Basic technical characteristics
Class of excavator39-45 t
Height H1700 mm
Length1950 mm
R1400 mm
Width L1400 mm
Capacity1,65 m3
Weight2060 kg
Bucket teeth quantity4 (5шт при адаптерах LC450 или 208-939-3120) pcs.

Applied materials and components

1. BottomHB-450 12 mm
2. BladeHT-36050 mm
3. Side wall10ХСНД12 mm
4. WingHB-40040 mm
5. Side reinforcing plateHB-45012 mm
6. RunnerHB-50015 mm
7. Beam10ХСНД25 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД40 mm
9. HeelHS175-14012 pcs.
10. Протектор/бокорез1U07402 pcs.
11. TeethEsco U45C, Hehsley XS40RC, 9W8452RC, MG55E, 208-70-14152RC
12. Межзуб. защитаZ170-110 или 4ML50UC
RD4114
