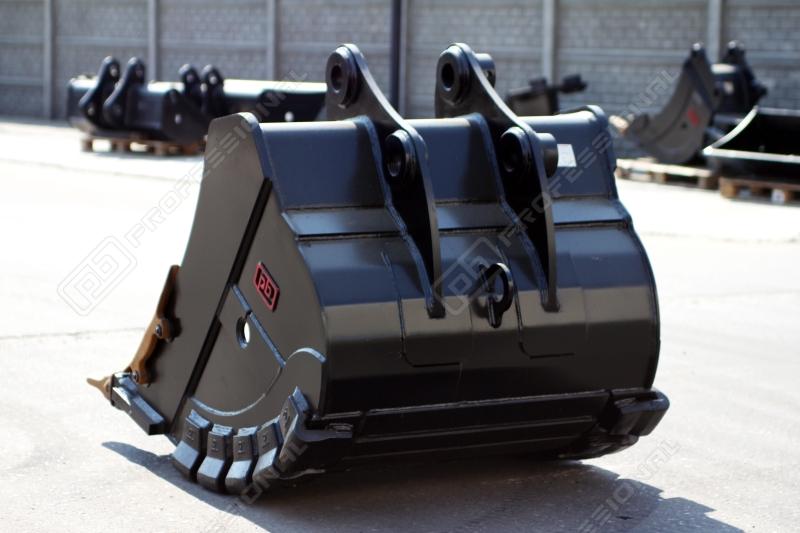

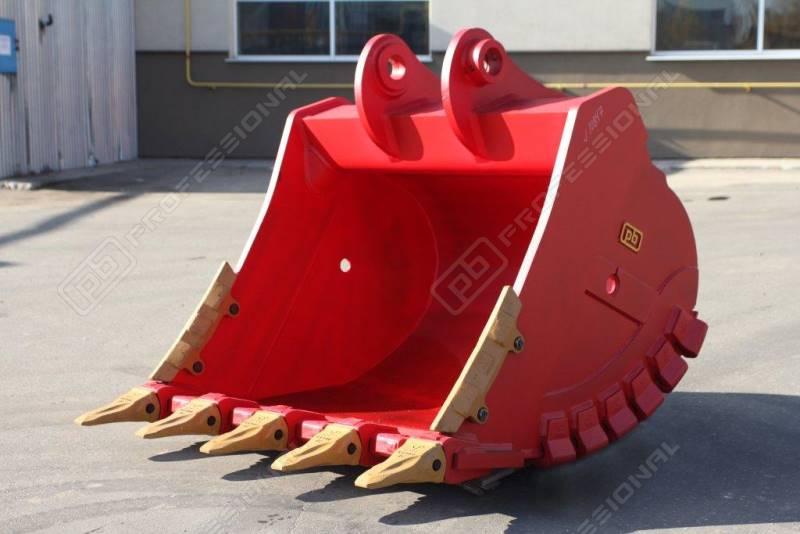

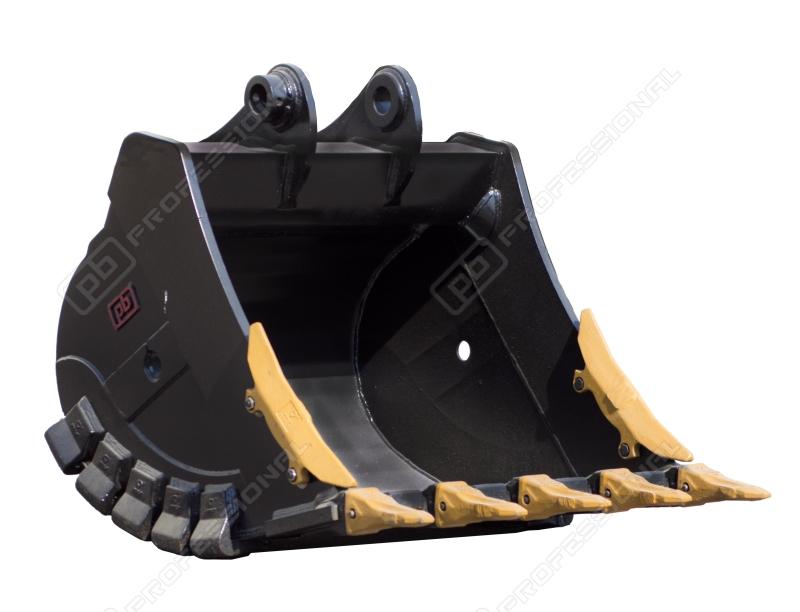

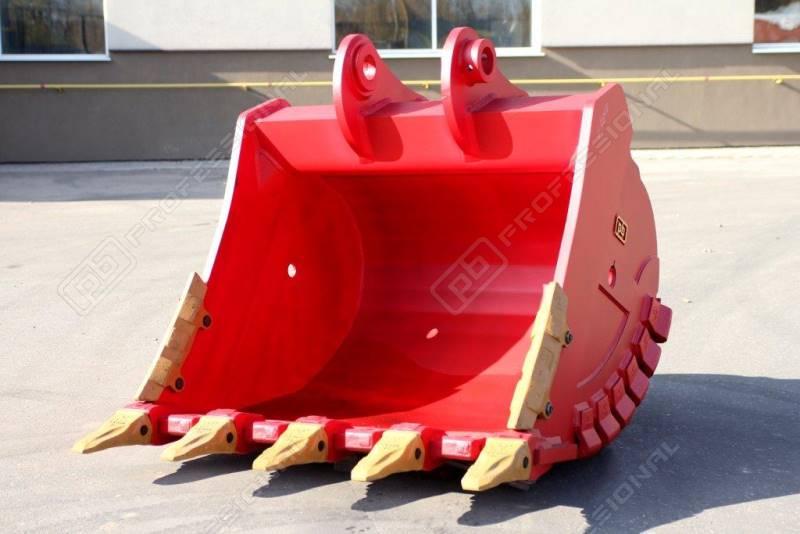

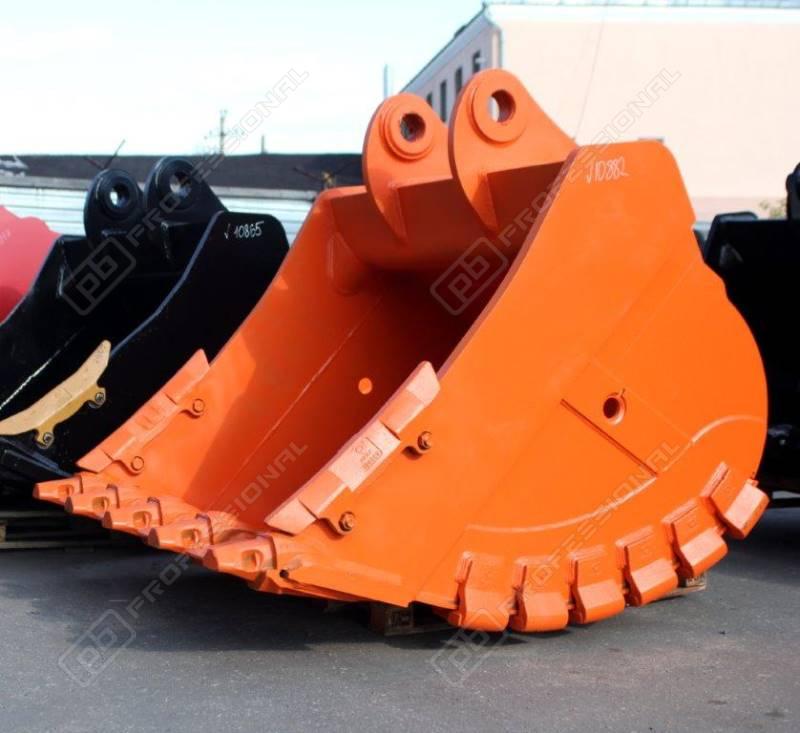

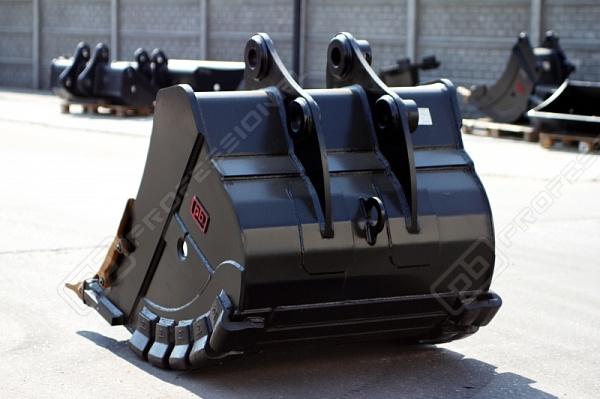

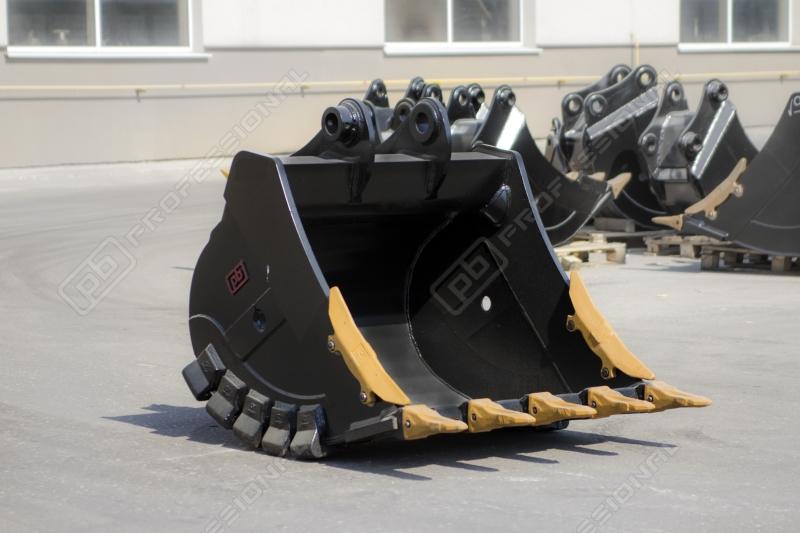

Standart rock-duty bucket RD-51.15

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

Standart rock-duty bucket RD-51.15 – used in soil excavation with density up to 2000kgs/m3 and I-II abrasion class.

Applicability к технике:

  • KomatsuPC-450
  • HyundaiR-480, R-500, R-520
  • DoosanS-500, S-520
  • VolvoEC-460, EC-480
  • CAT CAT-345DL, CAT-365

Basic technical characteristics
Class of excavator45-55 t
Height H1800 mm
Length2100 mm
R1500 mm
Width L1500 mm
Capacity2,05 m3
Weight2550 kg
Bucket teeth quantity4 pcs.

Applied materials and components

1. BottomHB-450 15 mm
2. BladeHT-36060 mm
3. Side wall10ХСНД12 mm
4. WingHB-40040 mm
5. Side reinforcing plateHB-45015 mm
6. RunnerHB-50015 mm
7. Beam10ХСНД25 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД40 mm
9. HeelHS230-19010 pcs.
10. Протектор/бокорез1U07402 pcs.
11. TeethEsco U55C, Hehsley XS50RC, 9W8552RC, MG55E
12. Межзуб. защитаZ170-110 или 4ML50UC
RD5115
