Price: call us or send an enquiry
Availability: in stock

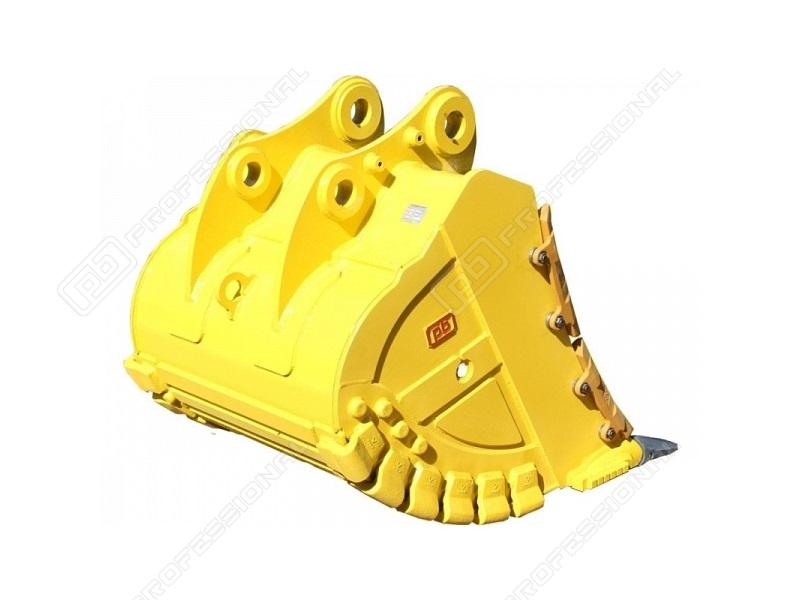

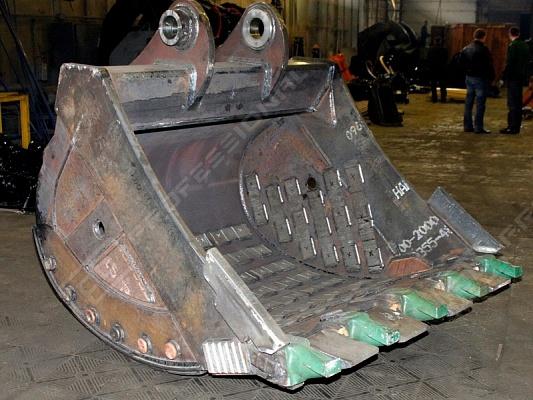

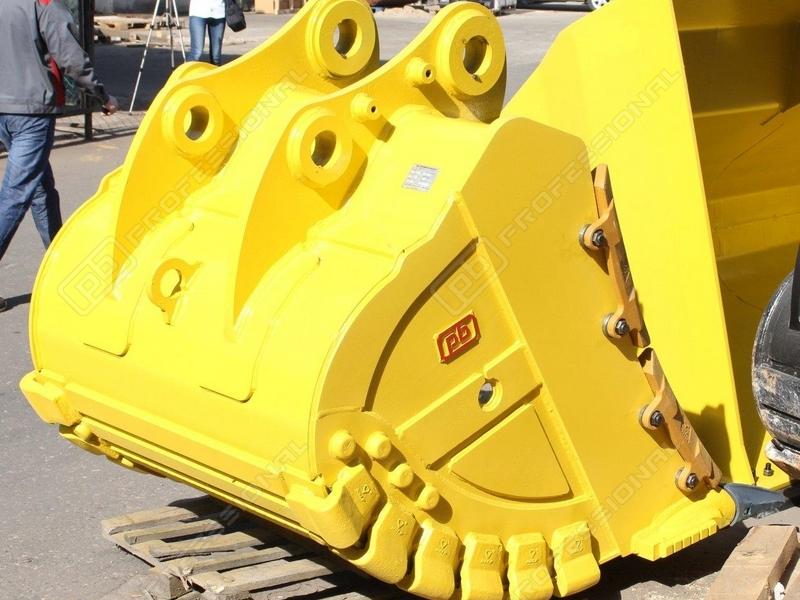

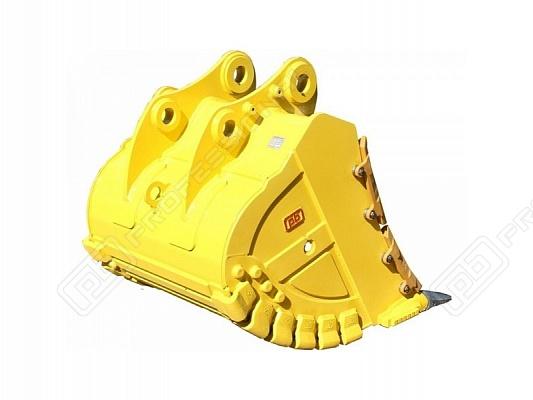

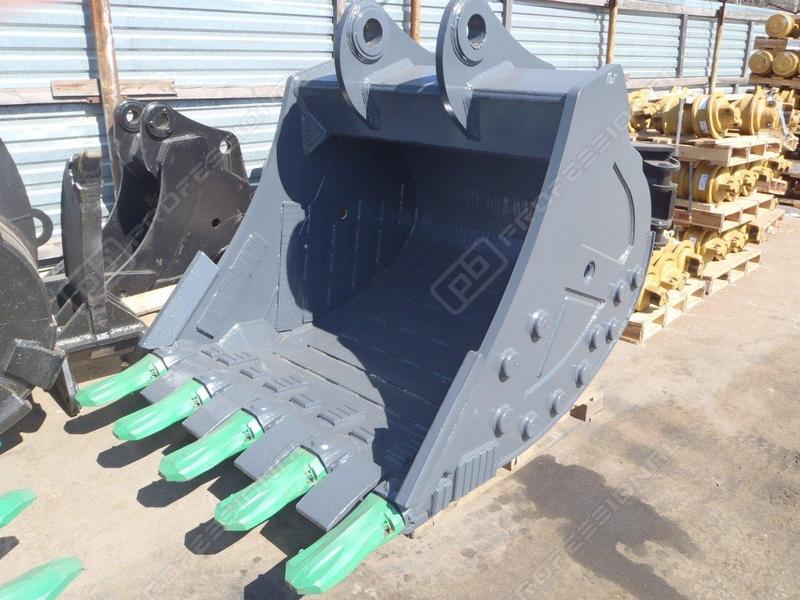

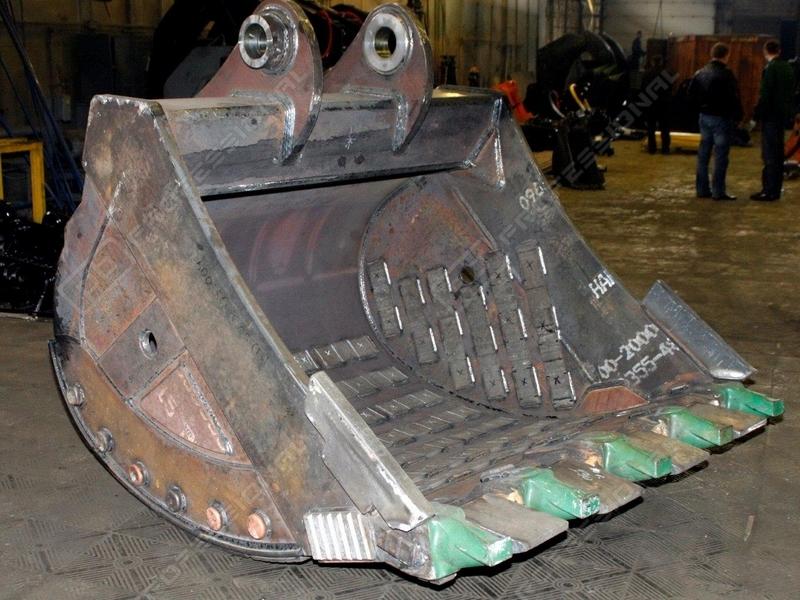

Extreme rock bucket Extra RDE-31.18 – used in soil excavation with density up to 2800kgs/m3 and VII abrasion class.
Class of excavator | 39-45 t |
Height H | 1700 mm |
Length | 1950 mm |
R | 1400 mm |
Width L | 1800 mm |
Capacity | 2,3 m3 |
Weight | 2640 kg |
Bucket teeth quantity | 5 pcs. |
Applied materials and components
1. Bottom | HB-450 | 12 mm |
2. Blade | HB-360 | 50 mm |
3. Side wall | 10ХСНД | 12 mm |
4. Wing | HB-400 | 40 mm |
5. Side reinforcing plate | HB-450 | 12 mm |
6. Runner | HB-500 | 15 мм Overlay 6+4 |
7. Beam | 10ХСНД | 25 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 40 mm |
9. Heel | HS175-140 | 12 pcs. |

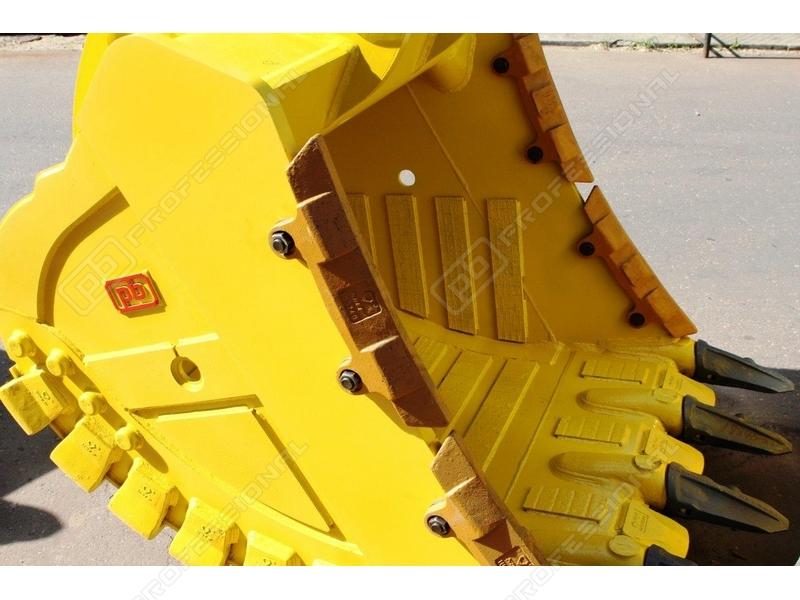

10. Протектор/бокорез | 1U0740 | 4 pcs. |
11. Teeth | ||
12. Межзуб. защита | ||
13. Side reinforcing plate | HB-450 | 12 mm |

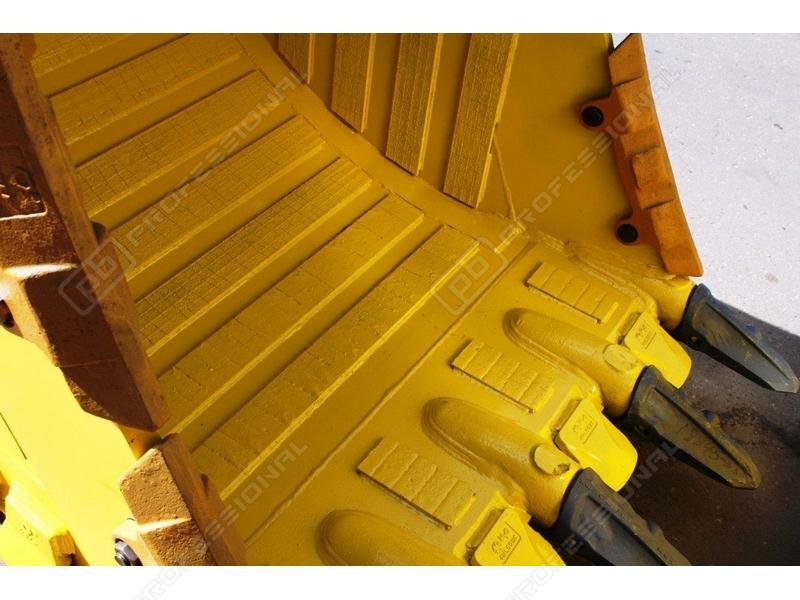

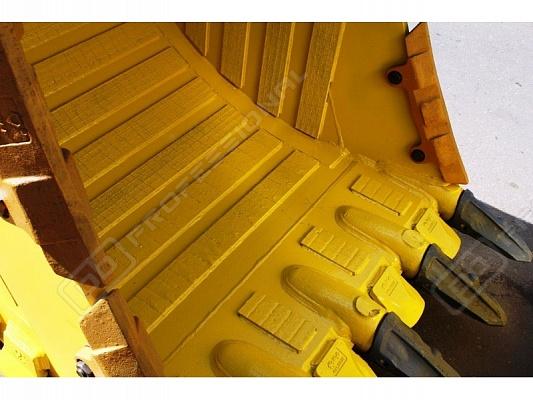

14. Liner внутренняя | Overlay | 6+4 mm |
15. Side reinforcing plate | Overlay | 6+4 mm |
16. Защита БХЧ | h | 25 mm |
17. Side reinforcing plate | HB-450 | 15 mm |
18. Side reinforcing plate | Overlay | 6+4 mm |
19. Защита БХЧ | ∅ | 60 mm |
20. Защита БХЧ | ∅ | 60 mm |
