Price: call us or send an enquiry
Availability: in stock

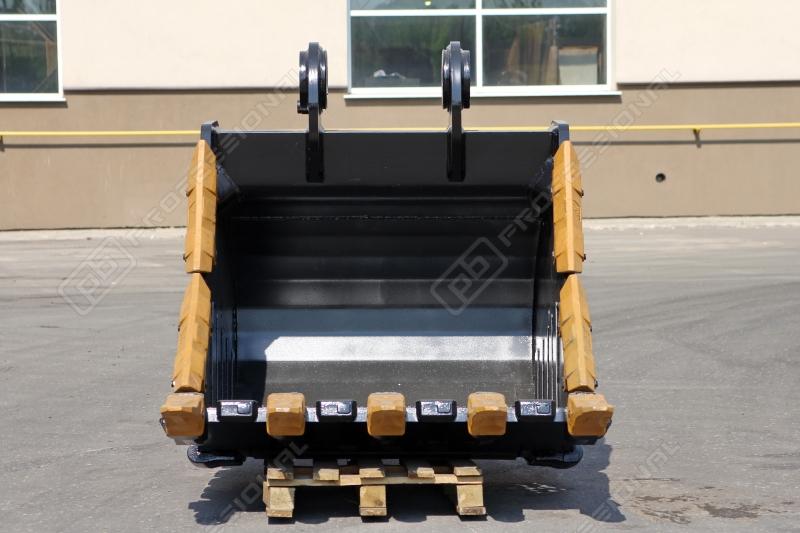

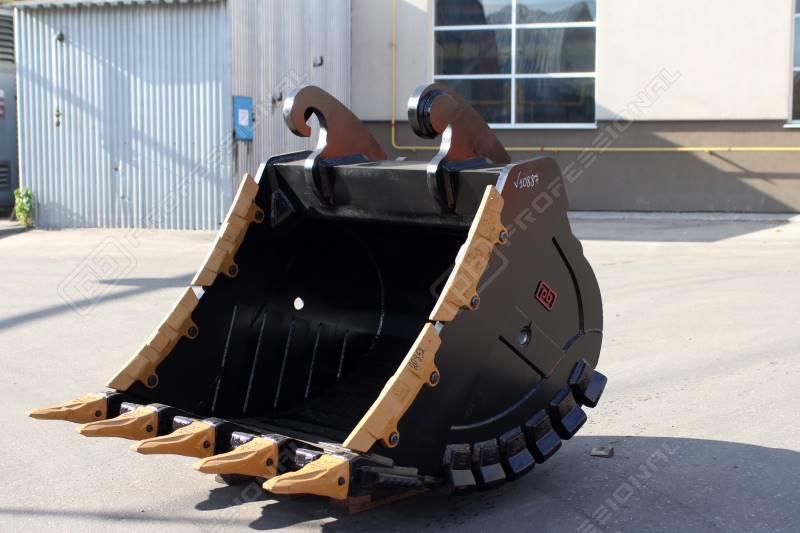

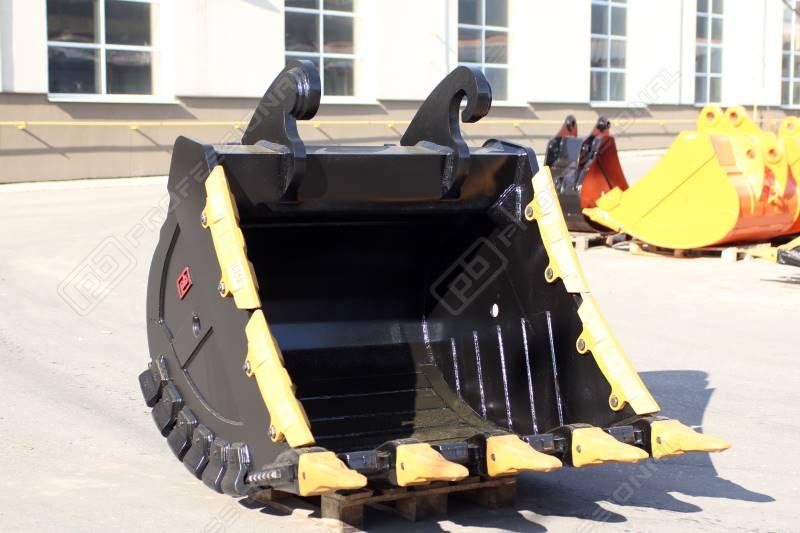

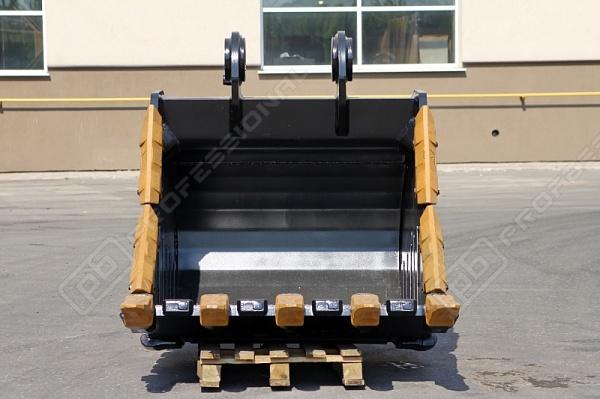

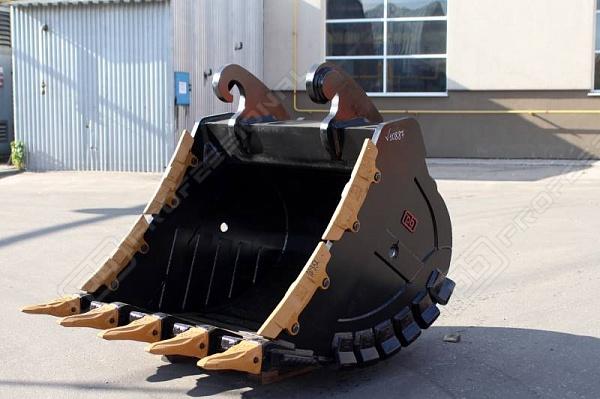

Super reinforced bucket RDX-41.14 – used in soil excavation with density up to 2500kgs/m3 and V-VI abrasion class.
Applicability к технике:
Class of excavator | 39-45 t |
Height H | 1700 mm |
Length | 1950 mm |
R | 1400 mm |
Width L | 1400 mm |
Capacity | 1,65 m3 |
Weight | 2260 kg |
Bucket teeth quantity | 4 (5 шт при адаптерах LC450 или 208-939-3120) pcs. |
Applied materials and components
1. Bottom | HB-450 | 12 mm |
2. Blade | HB-360 | 50 mm |
3. Side wall | 10ХСНД | 12 mm |
4. Wing | HB-400 | 40 mm |
5. Side reinforcing plate | HB-450 | 12 mm |
6. Runner | HB-500 | 20 mm |
7. Beam | 10ХСНД | 25 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 40 mm |
9. Heel | HS175-140 | 12 pcs. |
10. Протектор/бокорез | 1U0740 | 4 pcs. |
11. Teeth | Esco U45C, Hehsley XS40RC, 9W8452RC, MG55E 208 | |
12. Межзуб. защита | 209-939-5170-140 или 4ML50UC | |
13. Side reinforcing plate | HB-450 | 12 mm |
14. Liner внутренняя | HB-450 | 8 mm |
15. Side reinforcing plate | HB-450 | 8 mm |
16. Защита БХЧ | h | 25 mm |
17. Side reinforcing plate | HB-450 | 12 mm |
