Price: call us or send an enquiry
Availability: in stock

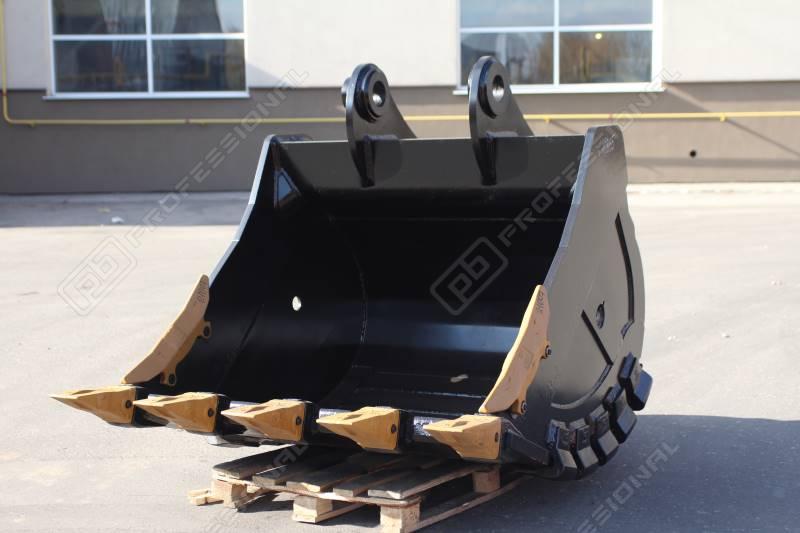

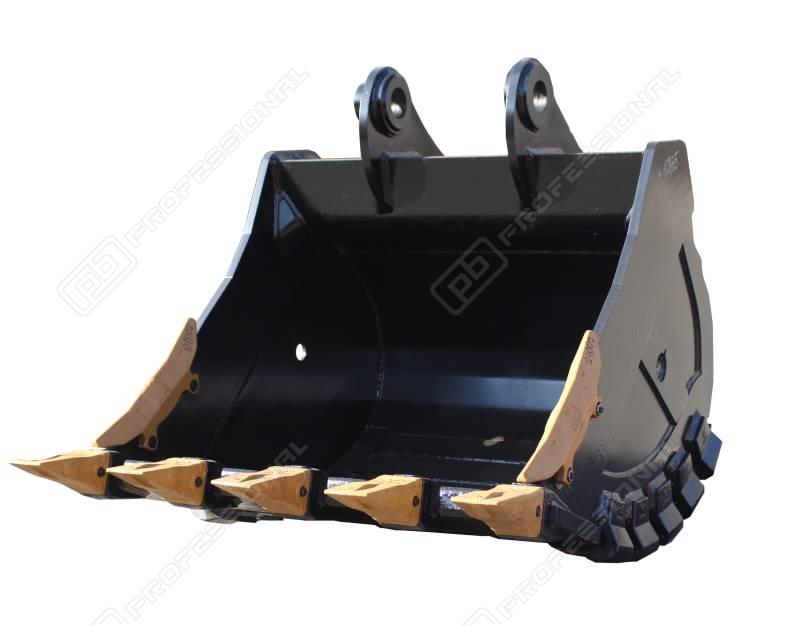

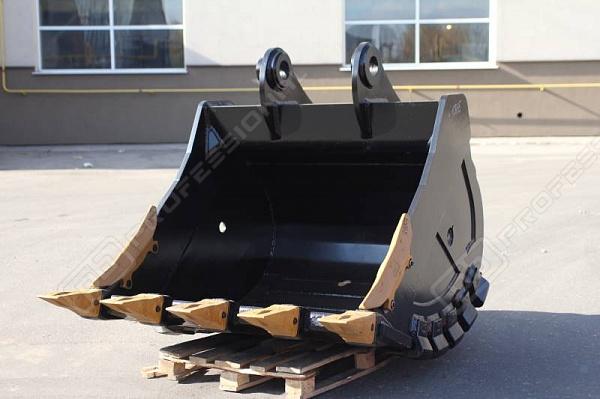

Heavy rock-duty bucket RDH-51.18 – used in soil excavation with density up to 2200kg/m3 and III-IV abrasion class.
Applicability к технике:
Class of excavator | 45-55 t |
Height H | 1800 mm |
Length | 2100 mm |
R | 1500 mm |
Width L | 1800 mm |
Capacity | 2,6 m3 |
Weight | 2950 kg |
Bucket teeth quantity | 5 pcs. |
Applied materials and components
1. Bottom | HB-450 | 12 mm |
2. Blade | HT-360 | 60 mm |
3. Side wall | 10ХСНД | 12 mm |
4. Wing | HB-400 | 40 mm |
5. Side reinforcing plate | HB-450 | 15 mm |
6. Runner | HB-500 | 15 mm |
7. Beam | 10ХСНД | 25 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 40 mm |
9. Heel | HS230-190 | 10 pcs. |
10. Протектор/бокорез | 1U0740 | 2 pcs. |
11. Teeth | Esco U55C, Hehsley XS50RC, 9W8552RC, MG55E | |
12. Межзуб. защита | S-50-150 или 4ML70UC | |
13. Side reinforcing plate | HB-450 | 15 mm |
14. Liner внутренняя | HB-450 | 8 mm |
