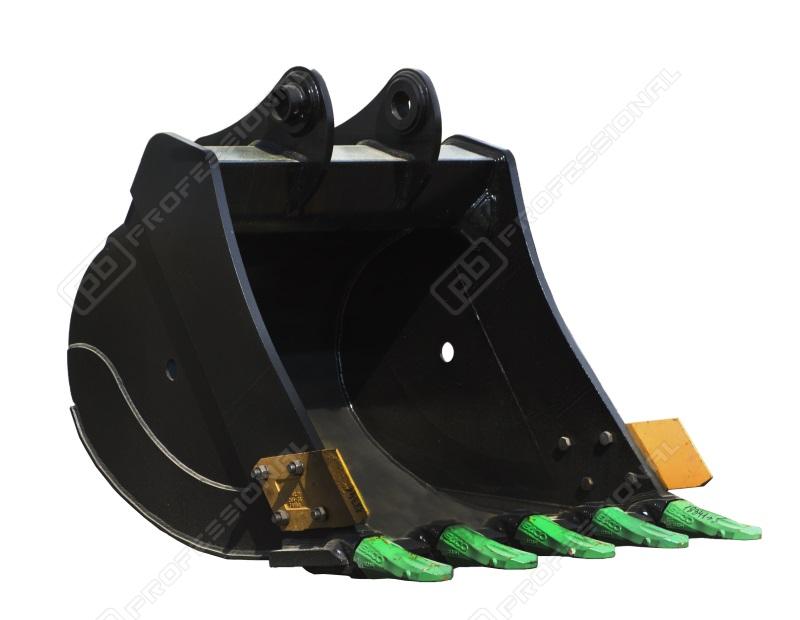

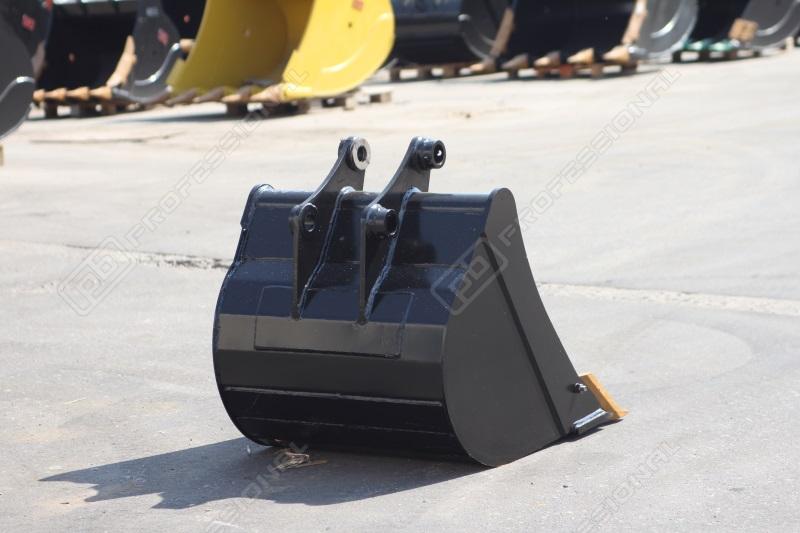

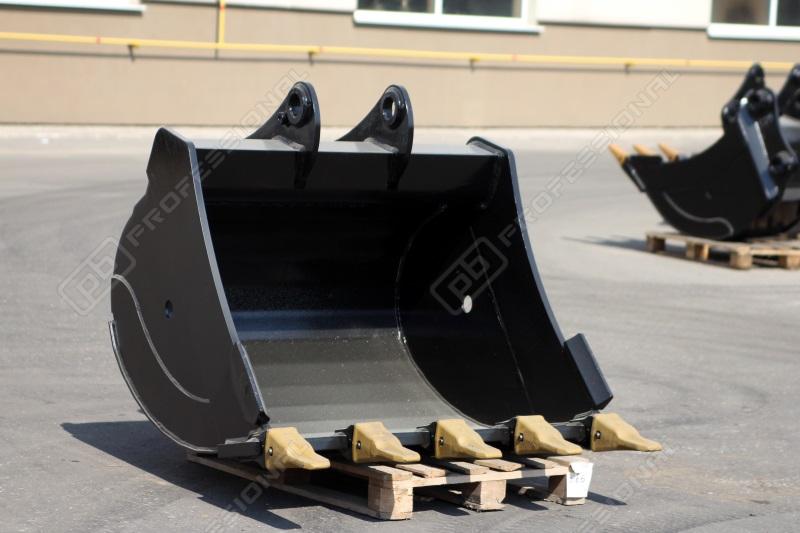

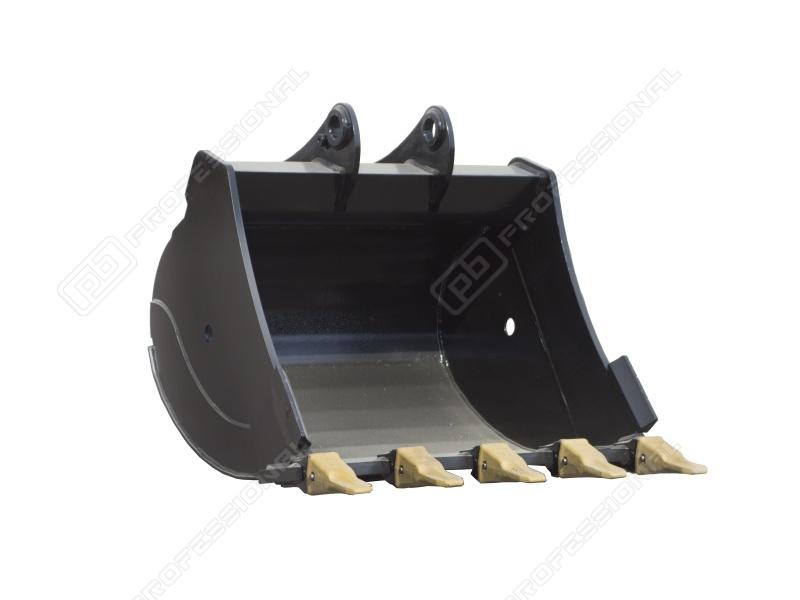

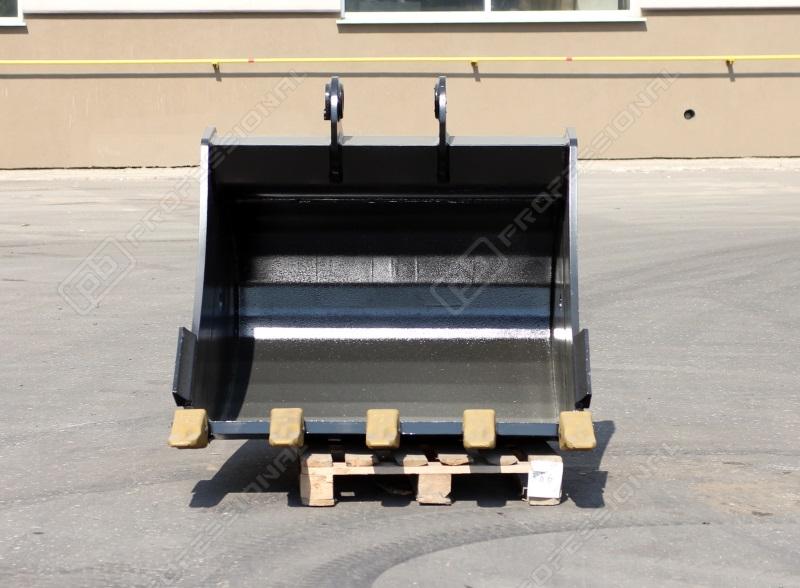

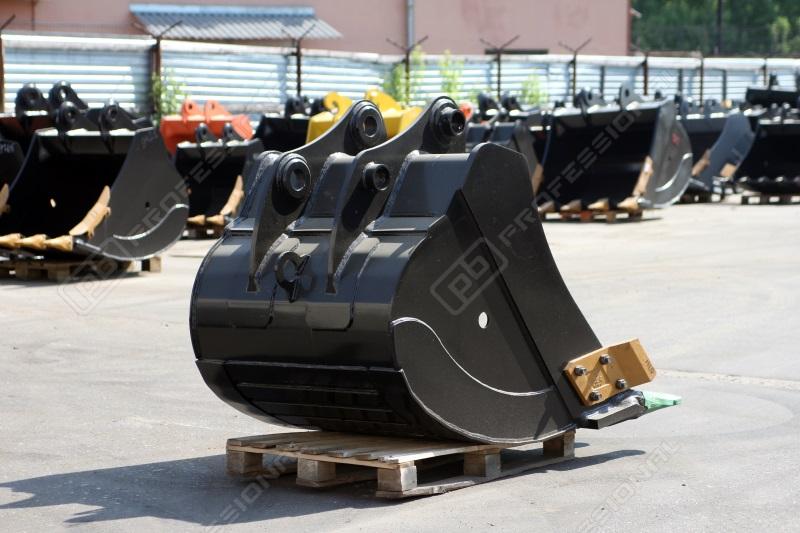

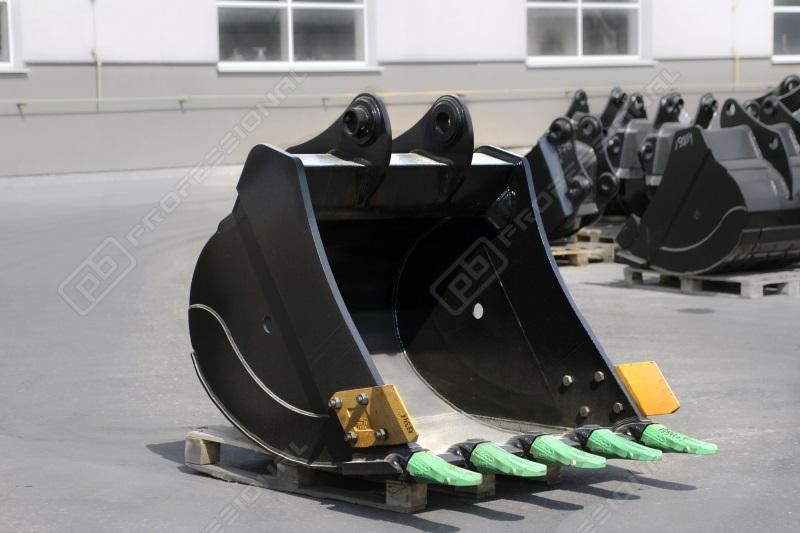

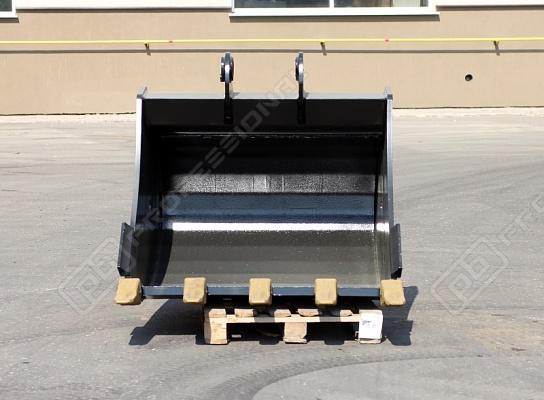

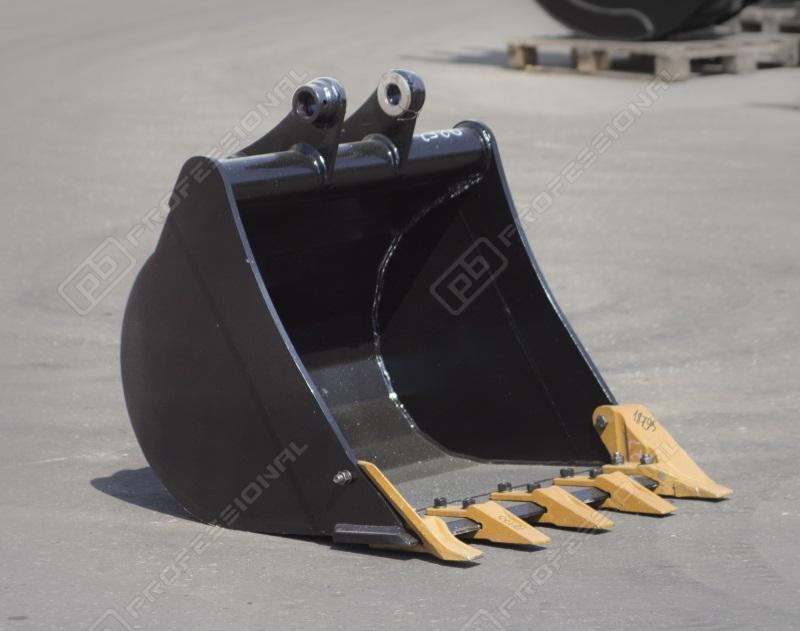

Standard bucket GP-16.08

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

General description:

Standard bucket GP-16.08 used in pit excavation in soil class I-IV and bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).

Applicability к технике:

  • KomatsuPC-120, PC-180
  • HyundaiR-130, R-140, R-1300, R-160, R-170, R-180
  • HitachiZX-130, ZX-140, EX-120, ZX-160, EX-165, ZX-180
  • DoosanS-140, DX-160, S-170, DX-140
  • VolvoEC-145, EC-160
  • JCBJS-160, JS-175W, JS-130W, JS-145W
  • CATCAT-312, CAT-313, CAT-315

Basic technical characteristics
Class of excavator12-18 t
Height H1250 mm
Length1500 mm
R1070 mm
Width L800 mm
Capacity0,5 m3
Weight550 kg
Bucket teeth quantity4 pcs.

Applied materials and components

1. Bottom10ХСНД 8 mm
2. Blade09Г2С36 mm
3. Side wall10ХСНД8 mm
4. Wing10ХСНД25 mm
5. Side reinforcing plate09Г2С8 mm
6. Runner09Г2С8 mm
7. Beam10ХСНД12 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД20 mm
10. Протектор/бокорезi-130
11. TeethEsco U30C, Hehsley XS20RC, 1U3302RC, 61N4-31210, 61N6-31310
GP1608
