Price: call us or send an enquiry
Availability: in stock

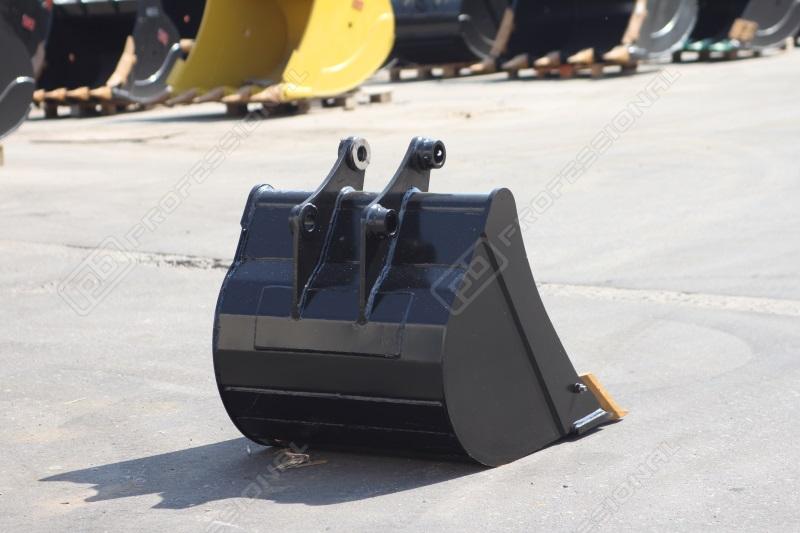

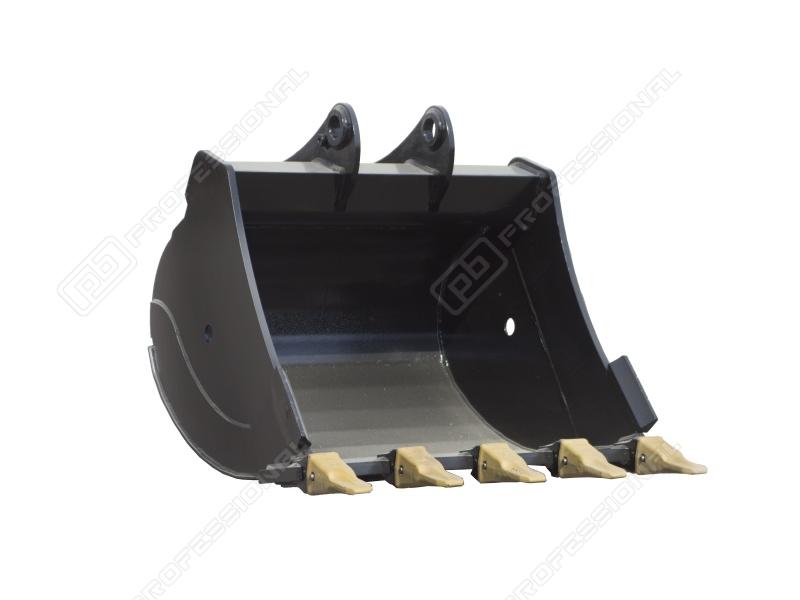

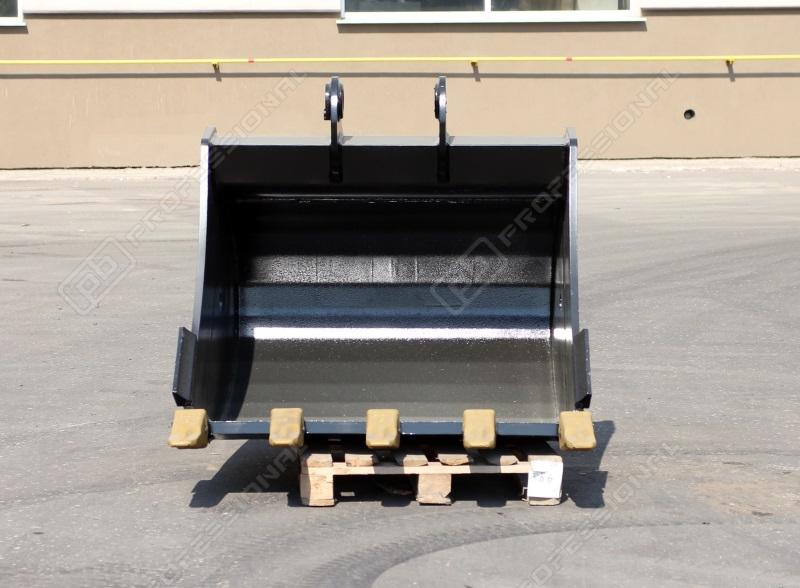

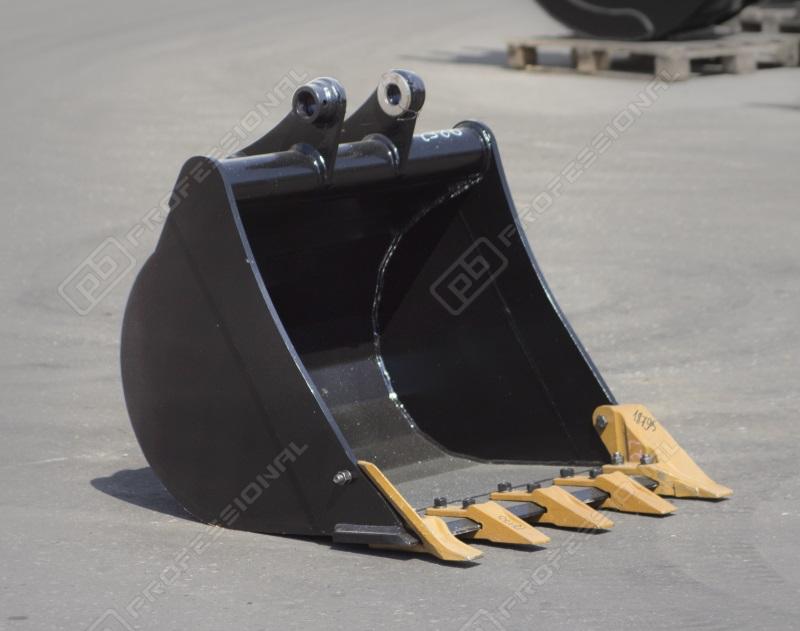

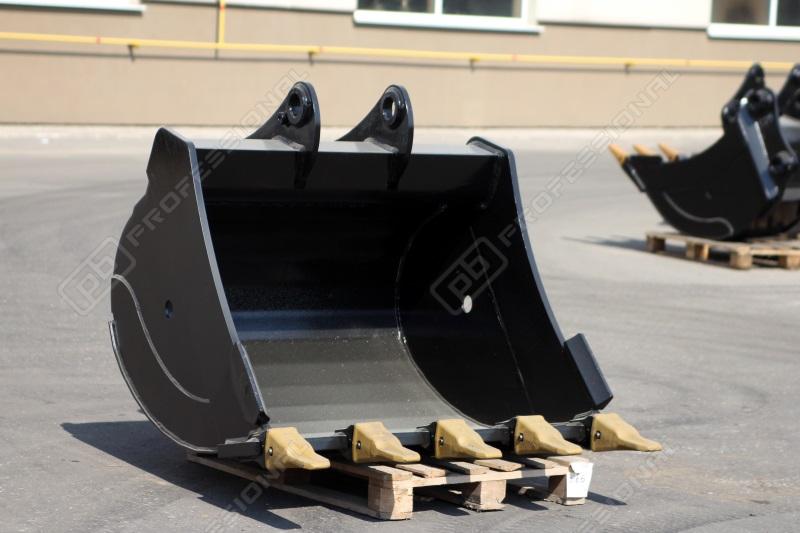

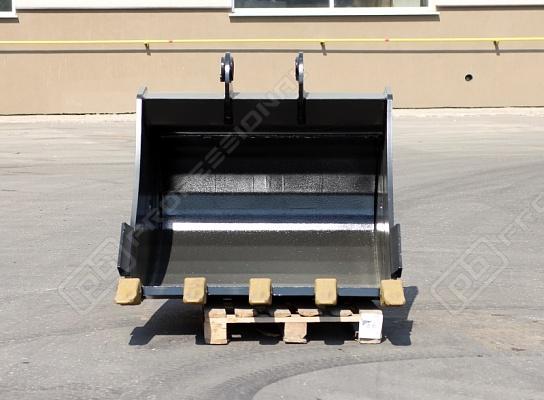

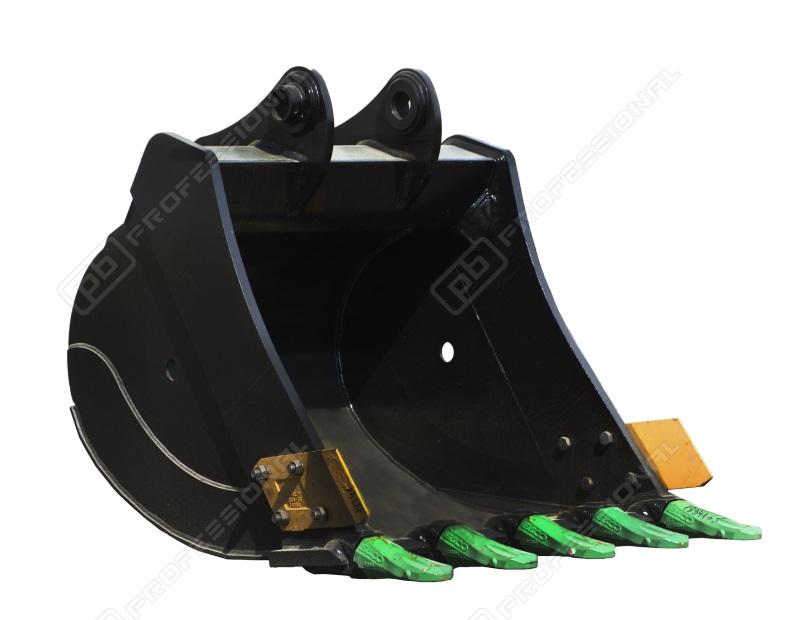

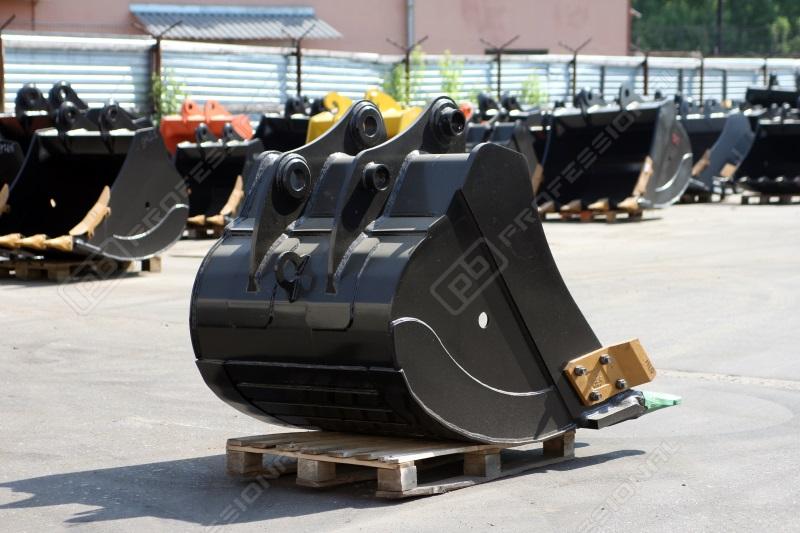

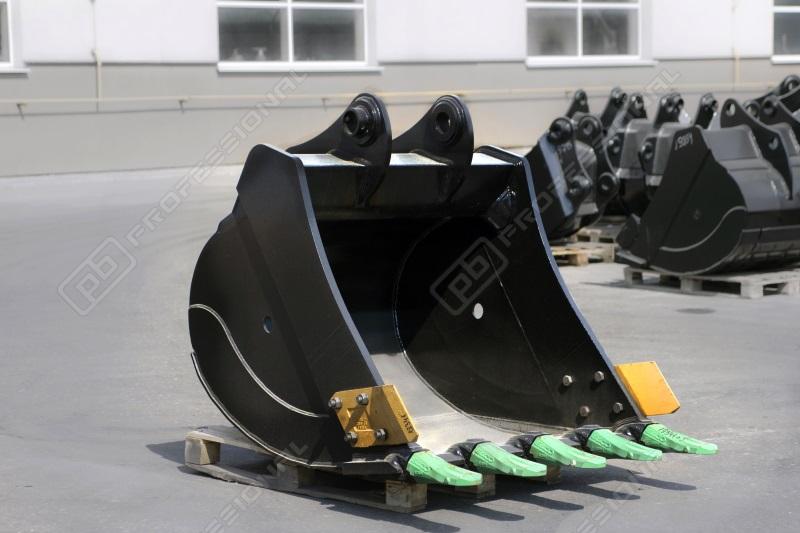

Standard bucket GP-21.13 used in pit excavation in soil class I-IV and bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).
Applicability к технике:
Class of excavator | 19-28 t |
Height H | 1400 mm |
Length | 1650 mm |
R | 1200 mm |
Width L | 1300 mm |
Capacity | 1,2 m3 |
Weight | 1070 kg |
Bucket teeth quantity | 5 pcs. |
Applied materials and components
1. Bottom | 10ХСНД | 10 mm |
2. Blade | 09Г2С | 40 mm |
3. Side wall | 10ХСНД | 10 mm |
4. Wing | 10ХСНД | 25 mm |
5. Side reinforcing plate | 09Г2С | 10 mm |
6. Runner | 09Г2С | 10 mm |
7. Beam | 10ХСНД | 16 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 25 mm |
10. Протектор/бокорез | i-130, 2014503 (2014504), 205-70-74180 (205-70-74190) | |
11. Teeth | Hehsley XS25RC, 1U3352, 205-70-19570, 61N8-31310, 2713-1219 |
