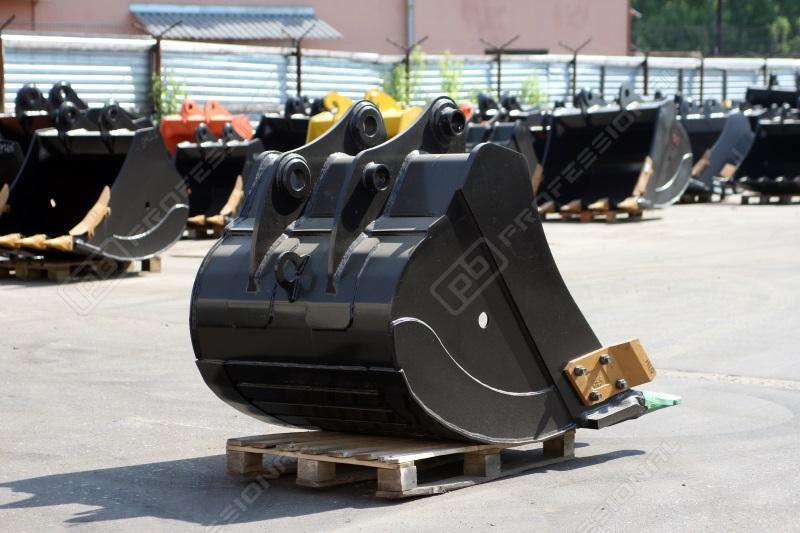

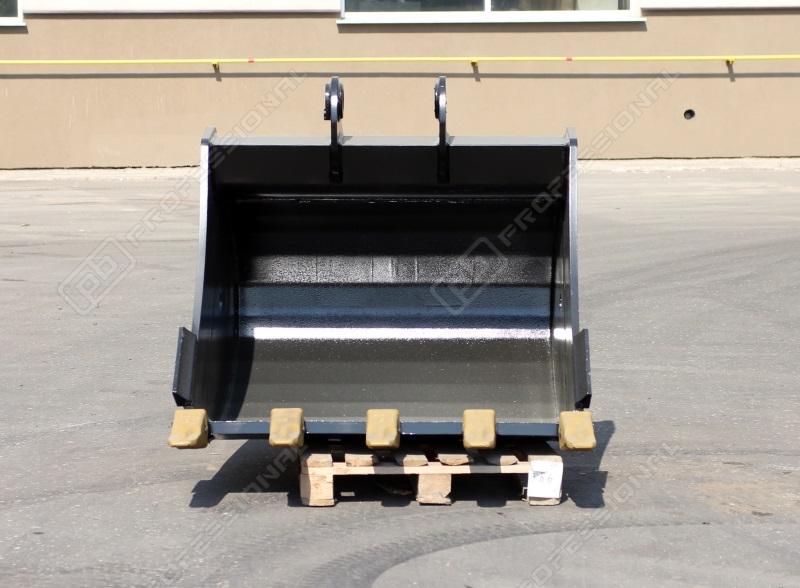

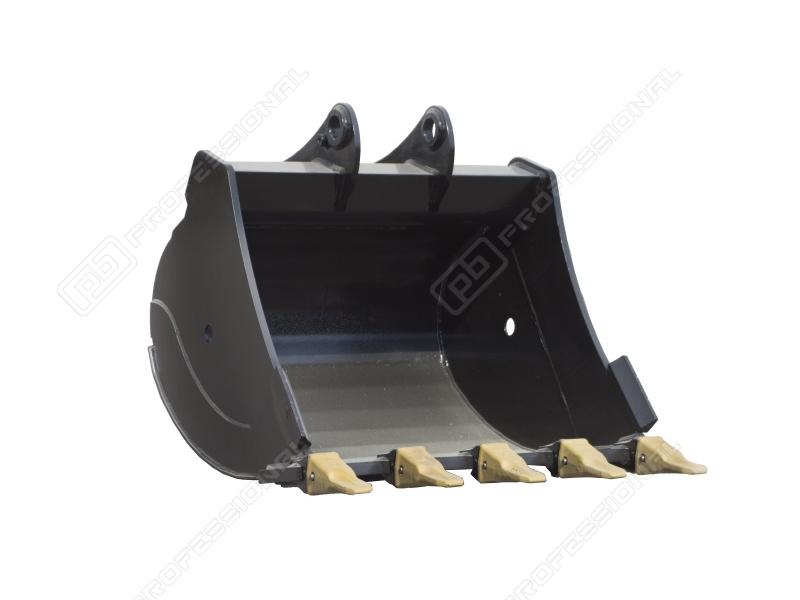

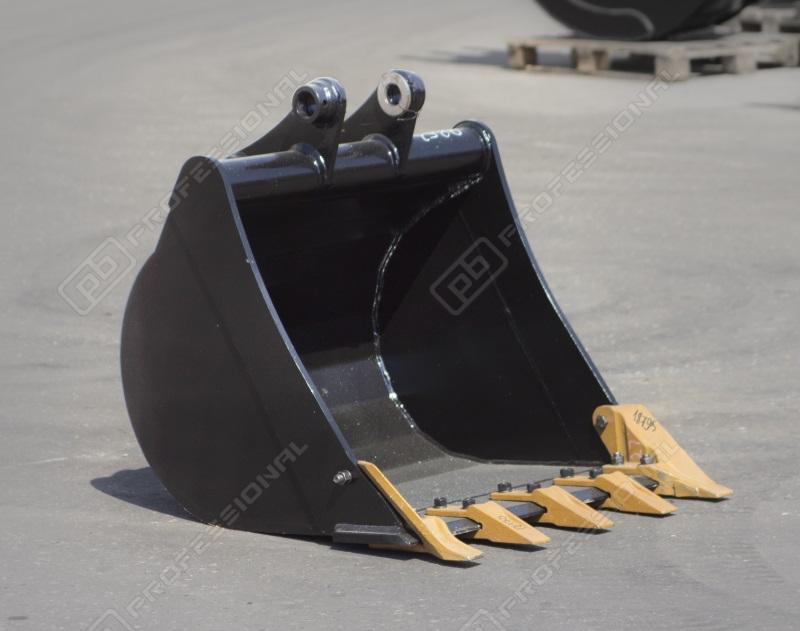

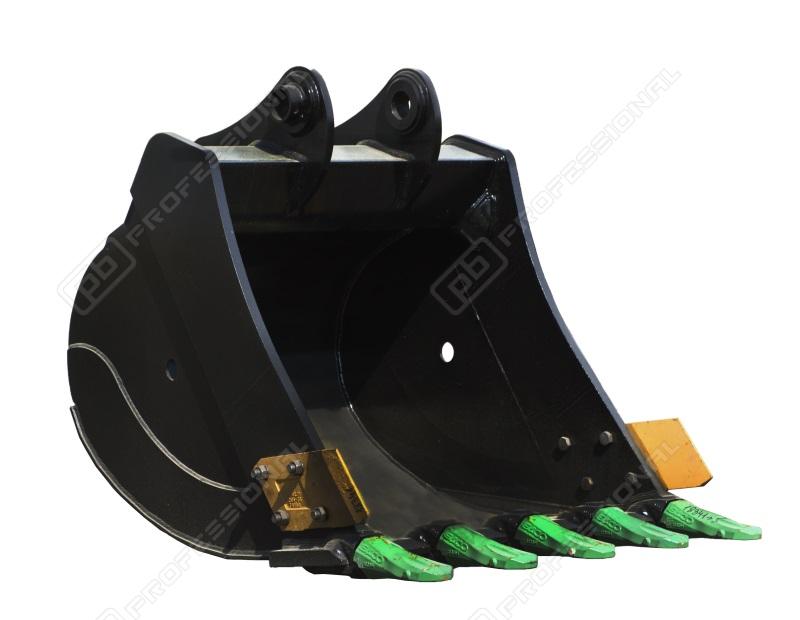

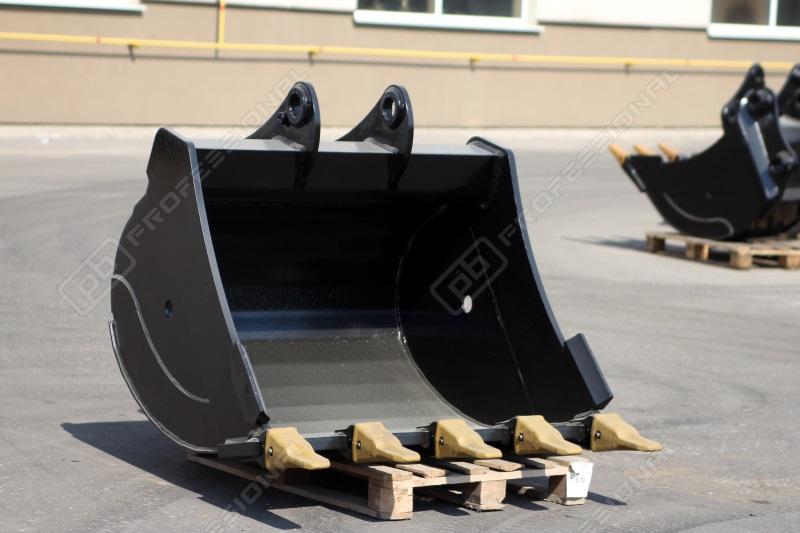

Standard bucket GP-21.14

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

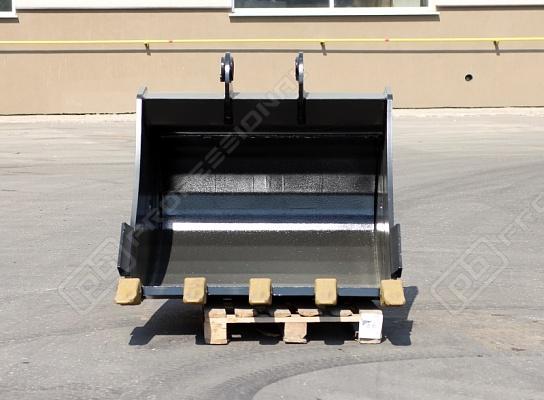

Standard bucket GP-21.14 used in pit excavation in soil class I-IV and bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).

Applicability к технике:

  • KomatsuPC-200, PC-210, PC-220, PC-240, PC-290
  • HyundaiR-200, R-210, R-220, R-250, R-260
  • HitachiZX-200, ZX-210, ZX-230, ZX-240, ZX-250
  • CASECASE CX-210, CX-240
  • DoosanS-180, S-210, DX-225, S-225, S-255, DX-255
  • VolvoEC-180, EC-210, EC-240, EC-250
  • JCBJS-240, JS-260
  • CATCAT-318, CAT-320, CAT-322, CAT-324

Basic technical characteristics
Class of excavator19-28 t
Height H1400 mm
Length1650 mm
R1200 mm
Width L1400 mm
Capacity1,3 m3
Weight1100 kg
Bucket teeth quantity5 pcs.

Applied materials and components

1. Bottom10ХСНД 10 mm
2. Blade09Г2С40 mm
3. Side wall10ХСНД10 mm
4. Wing10ХСНД25 mm
5. Side reinforcing plate09Г2С10 mm
6. Runner09Г2С10 mm
7. Beam10ХСНД16 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД25 mm
10. Протектор/бокорезi-130, 2014503 (2014504),
205-70-74180 (205-70-74190)
11. TeethHehsley XS25RC, 1U3352, 205-70-19570, 61N8-31310, 2713-1219
GP2114
