Price: call us or send an enquiry
Availability: in stock

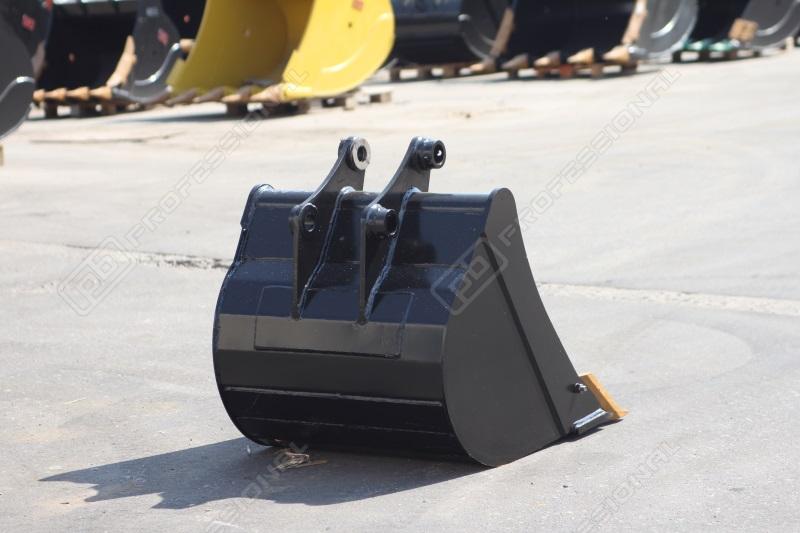

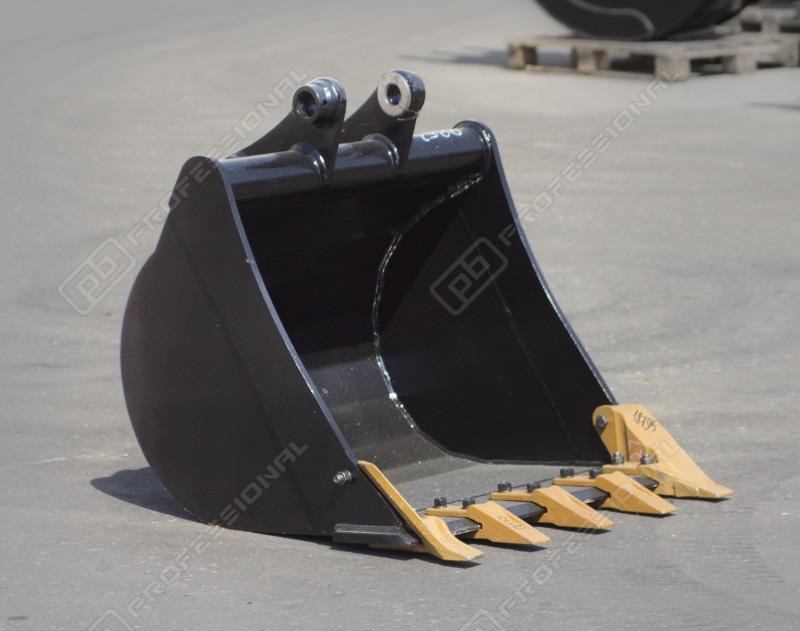

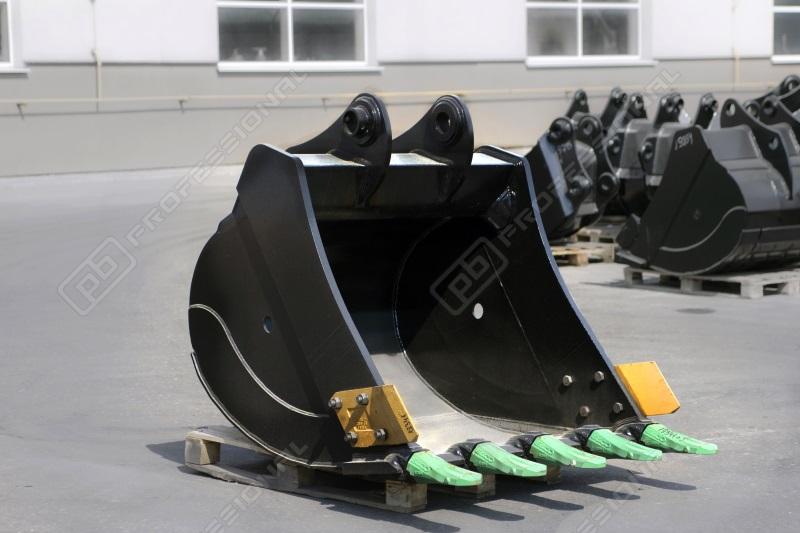

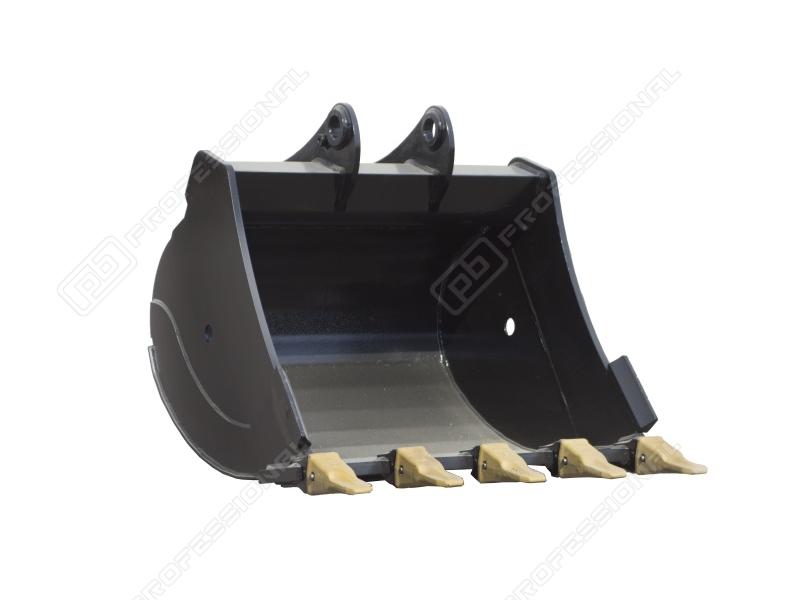

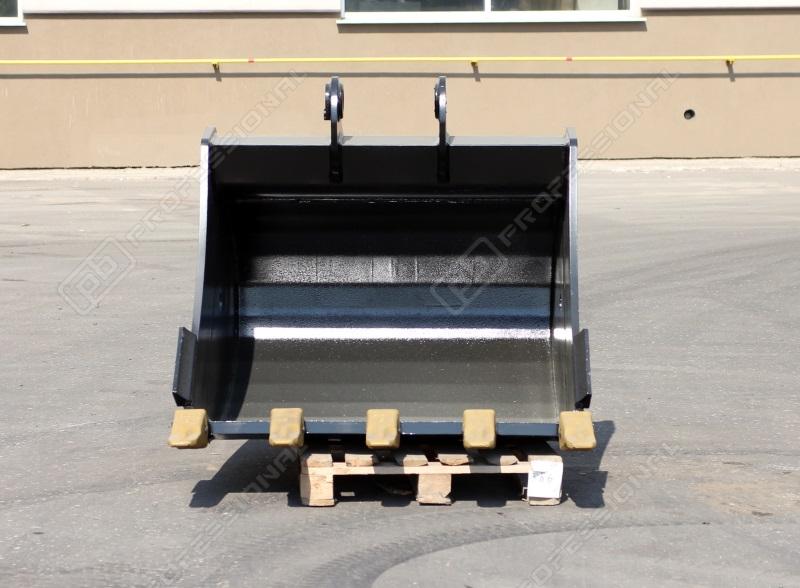

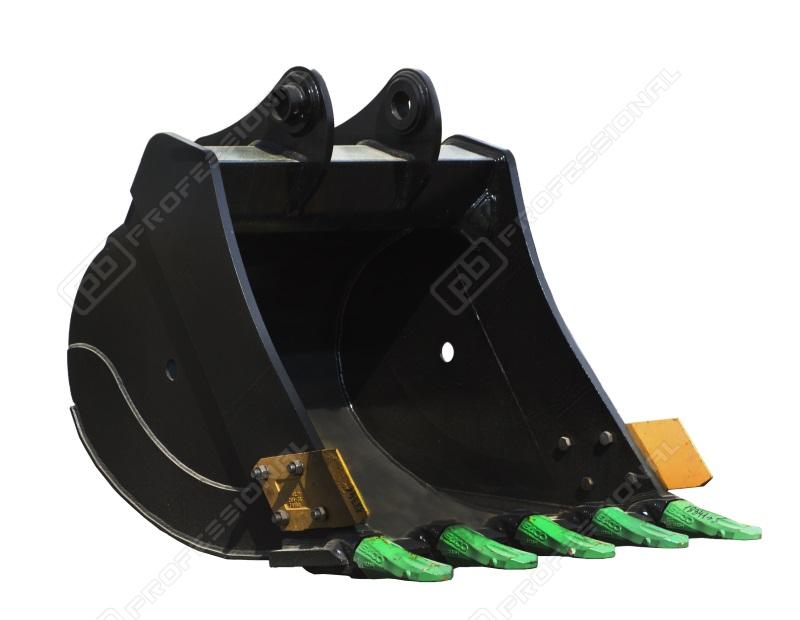

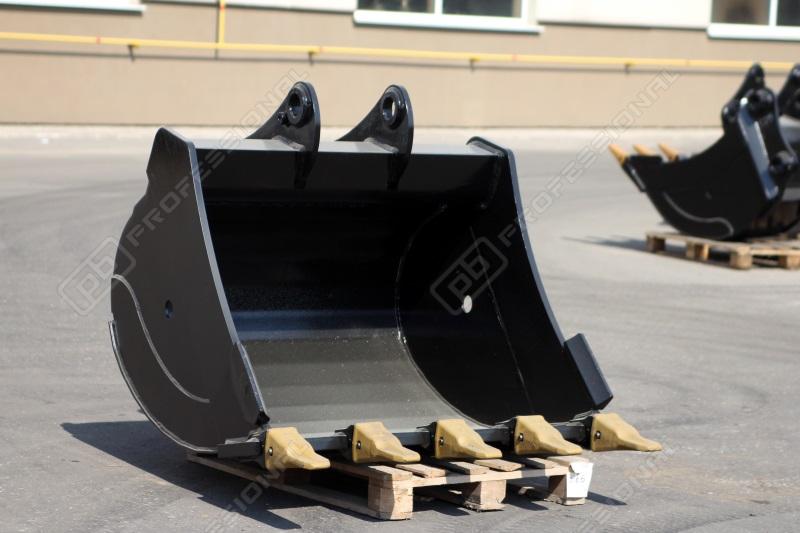

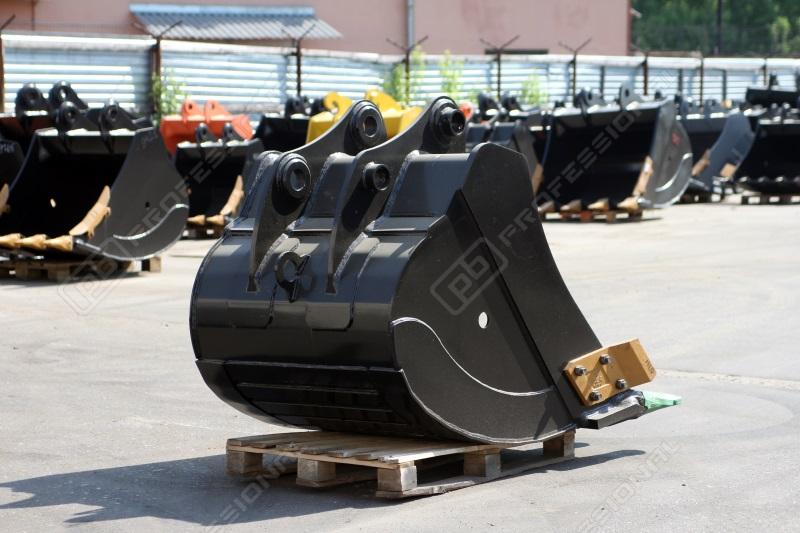

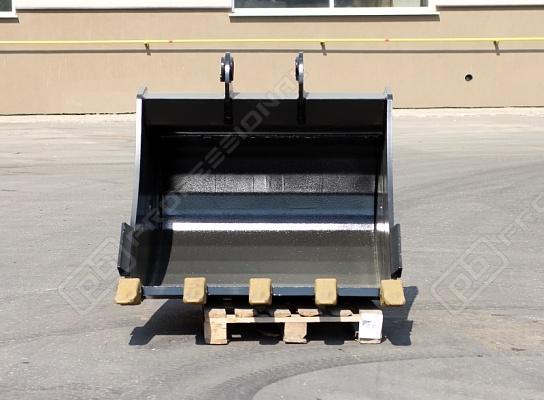

Standard bucket GP-31.14 used in pit excavation in soil class I-IV and bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).
Applicability к технике:
Class of excavator | 29-38 t |
Height H | 1500 mm |
Length | 1800 mm |
R | 1330 mm |
Width L | 1400 mm |
Capacity | 1,5 m3 |
Weight | 1450 kg |
Bucket teeth quantity | 5 pcs. |
Applied materials and components
1. Bottom | 10ХСНД | 12 mm |
2. Blade | 10ХСНД | 50 mm |
3. Side wall | 10ХСНД | 12 mm |
4. Wing | 10ХСНД | 30 mm |
5. Side reinforcing plate | 10ХСНД | 12 mm |
6. Runner | 10ХСНД | 12 mm |
7. Beam | 10ХСНД | 20 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 30 mm |
10. Протектор/бокорез | i-160 | |
11. Teeth | Esco U40C, Hehsley XS30RC, 7T3402RC, MG40E, 207-70-14151RC |
