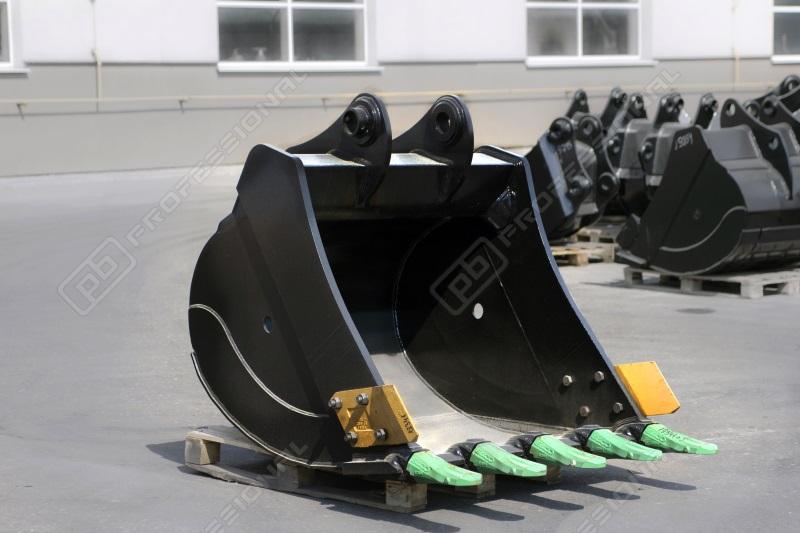

Standard bucket GP-31.16

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

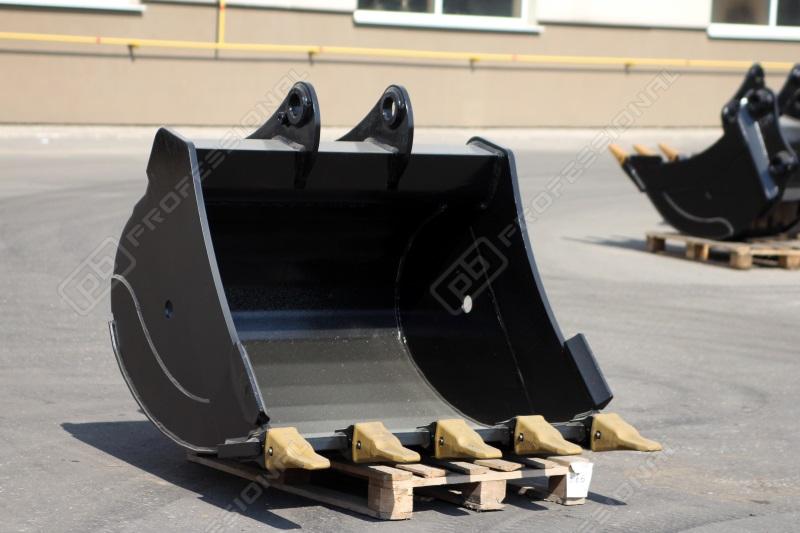

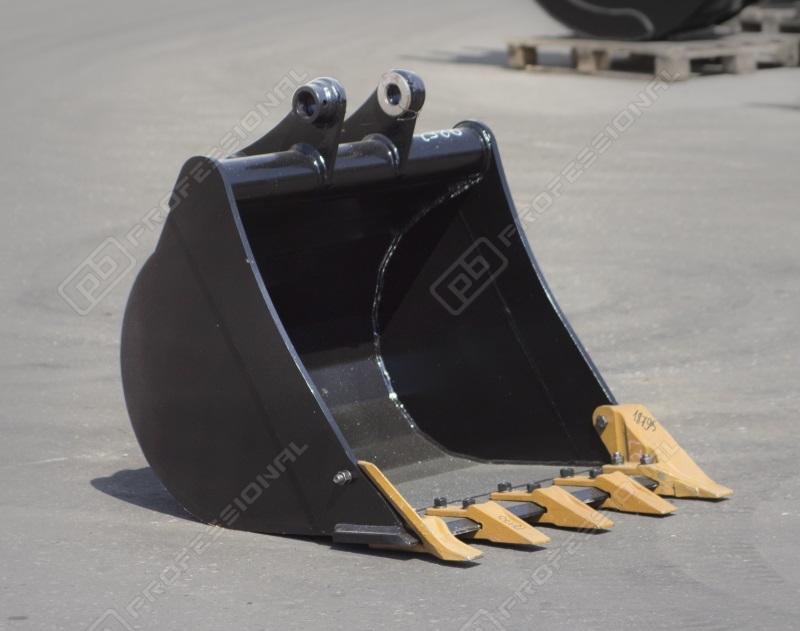

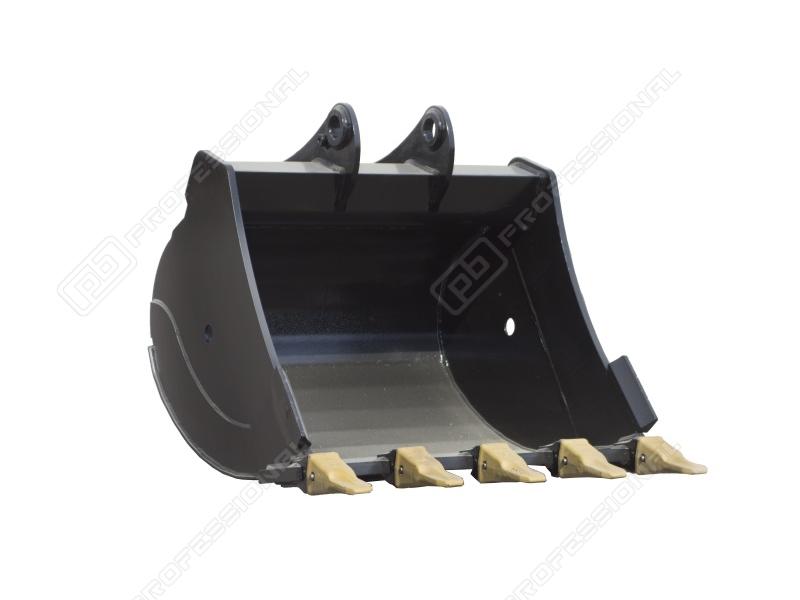

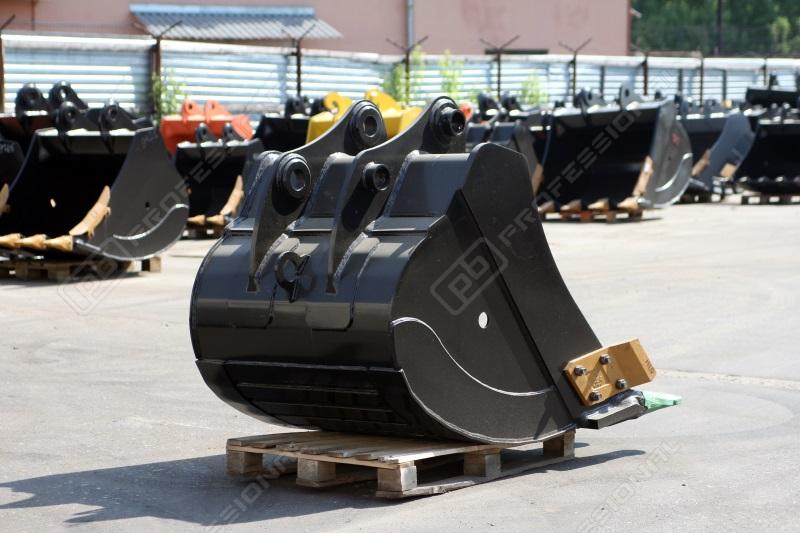

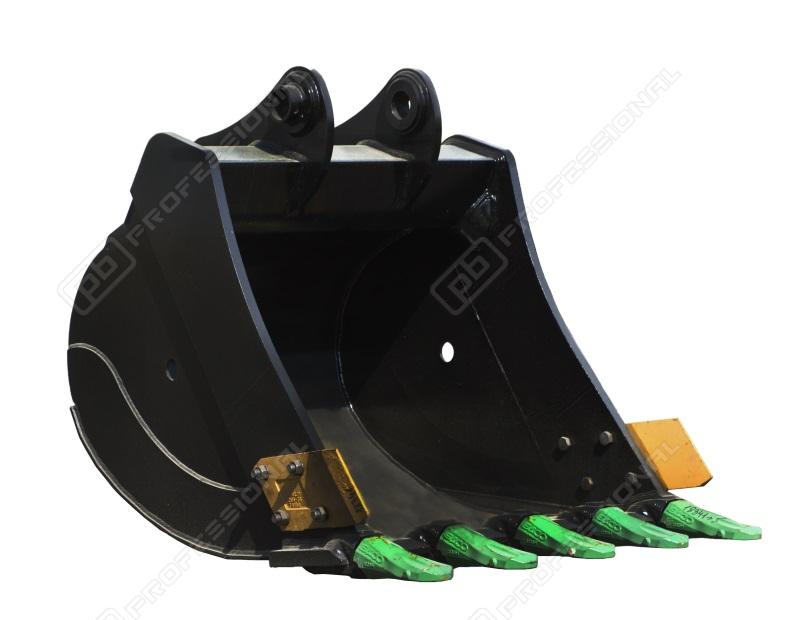

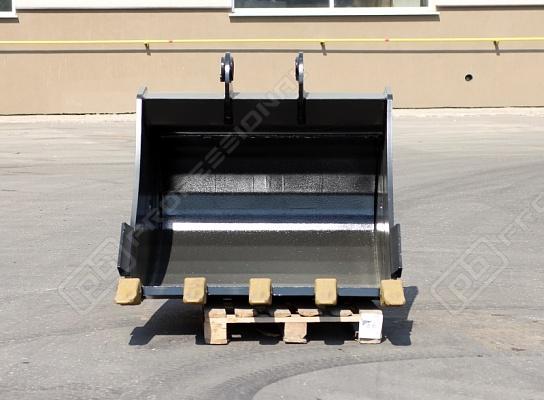

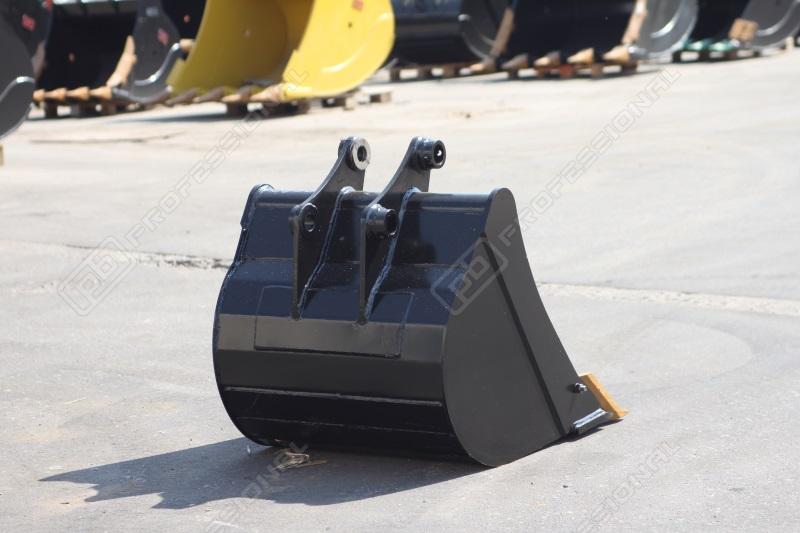

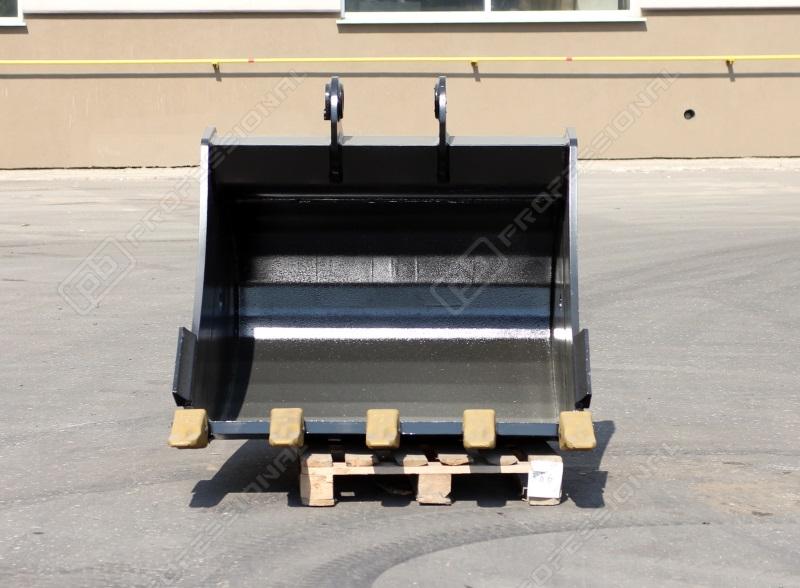

Standard bucket GP-31.16 used in pit excavation in soil class I-IV and bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).

Applicability к технике:

  • KomatsuPC-290, PC-300, PC-340, PC-350, PC-360
  • HyundaiR-250, R-260, R-290, R-300, R-320, R-360, R-380, R-305, R-330
  • HitachiZX-330, ZX-350, EX-300, ZX-240
  • CASECX-290, CX-330
  • DoosanDX-300, S-340, S-300, DX-340, DX-380
  • VolvoEC-290, EC-360
  • JCBJS-330, JC-360
  • CATCAT-325, CAT-329, CAT-330DL, CAT-336DL

Basic technical characteristics
Class of excavator29-38 t
Height H1500 mm
Length1800 mm
R1330 mm
Width L1600 mm
Capacity1,8 m3
Weight1570 kg
Bucket teeth quantity5 pcs.

Applied materials and components

1. Bottom10ХСНД 12 mm
2. Blade10ХСНД50 mm
3. Side wall10ХСНД12 mm
4. Wing10ХСНД30 mm
5. Side reinforcing plate10ХСНД12 mm
6. Runner10ХСНД12 mm
7. Beam10ХСНД20 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД30 mm
10. Протектор/бокорезi-160
11. TeethEsco U40C, Hehsley XS30RC, 7T3402RC, MG40E, 207-70-14151RC
GP3116
