Standard bucket GP-41.14

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

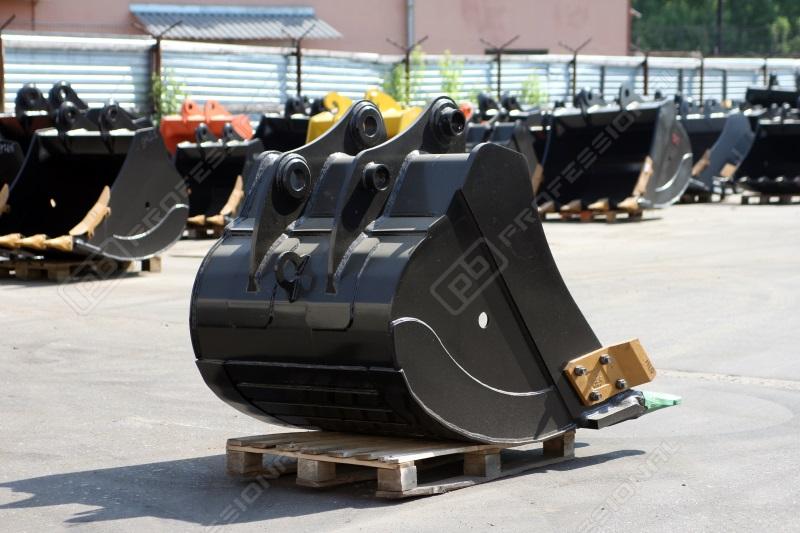

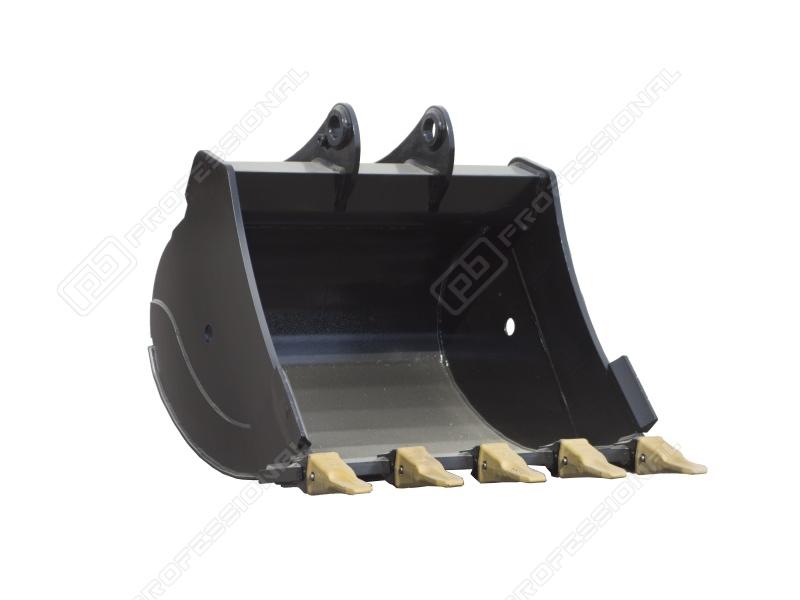

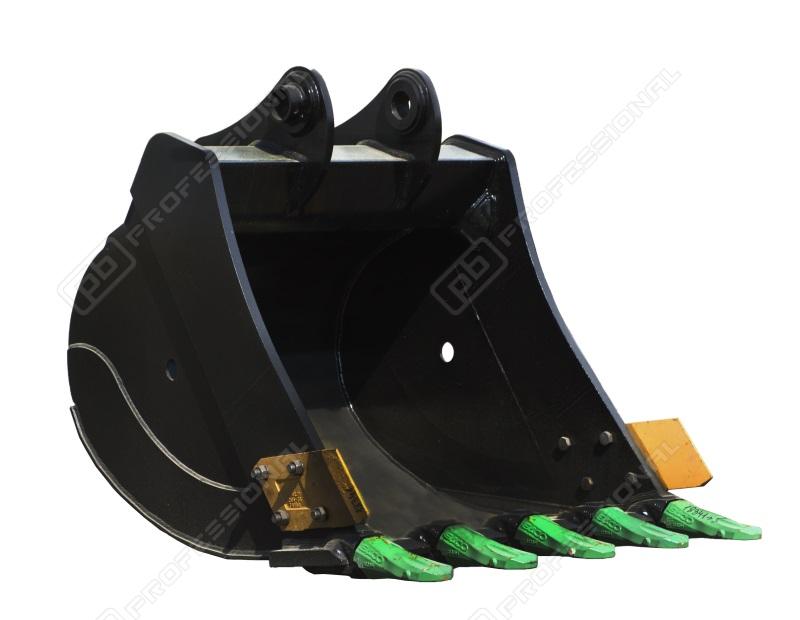

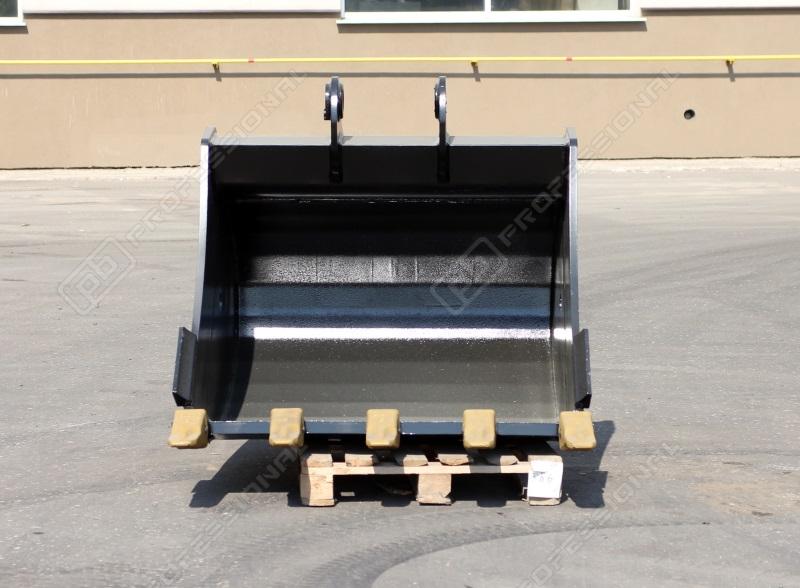

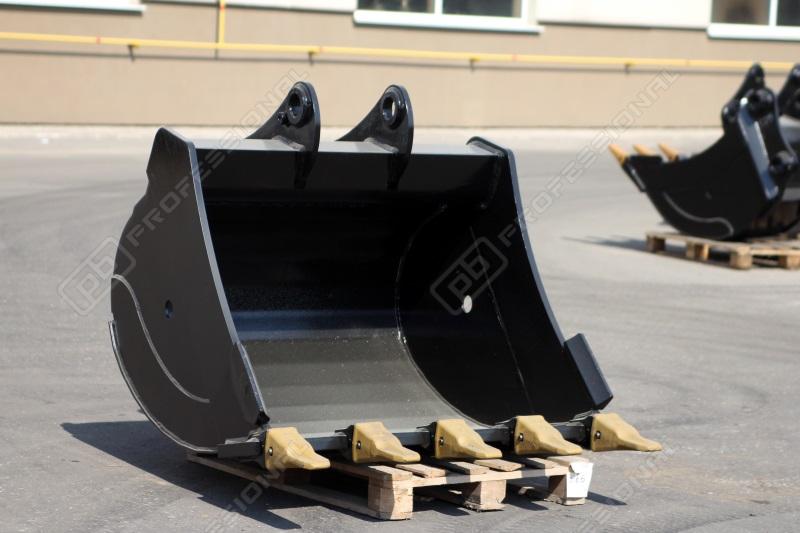

Standard bucket GP-41.14 used in pit excavation in soil class I-IV and bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).

Applicability к технике:

  • KomatsuPC-400, PC-450
  • HyundaiR-360, R-380, R-450
  • HitachiEX-400, ZX-450
  • CASECX-290, CX-330
  • DoosanDX-420, S-420
  • VolvoEC-360, EC-380
  • Caterpillar CAT-330DLME, 336DLME

Basic technical characteristics
Class of excavator 39-45 t
Height H1700 mm
Length1950 mm
R1400 mm
Width L1400 mm
Capacity1,65 m3
Weight1860 kg
Bucket teeth quantity4 (5 при адаптерах LC450 или 208-939-3120) pcs.

Applied materials and components

1. Bottom10ХСНД 12 mm
2. Blade10ХСНД50 mm
3. Side wall10ХСНД12 mm
4. Wing10ХСНД40 mm
5. Side reinforcing plate10ХСНД12 mm
6. Runner10ХСНД12 mm
7. Beam10ХСНД25 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД40 mm
10. Протектор/бокорезi-160
11. TeethEsco U45C, Hehsley XS40RC, 9W8452RC, MG55E, 208-70-14152RC
GP4114
