Ditch cleaning bucket TB-16.40

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

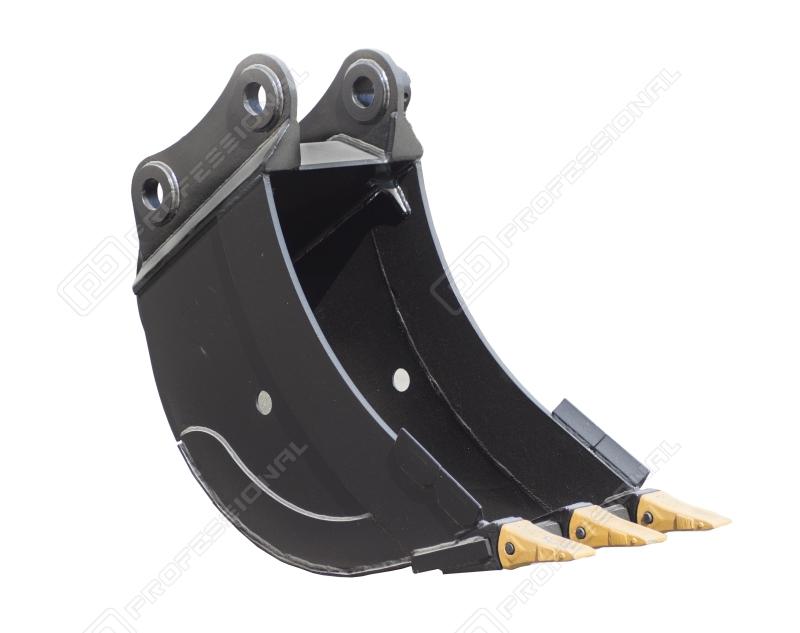

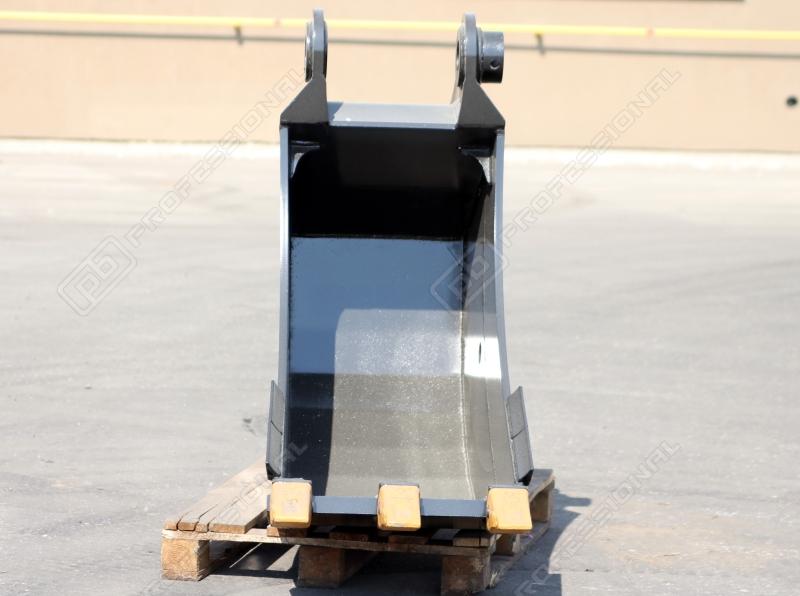

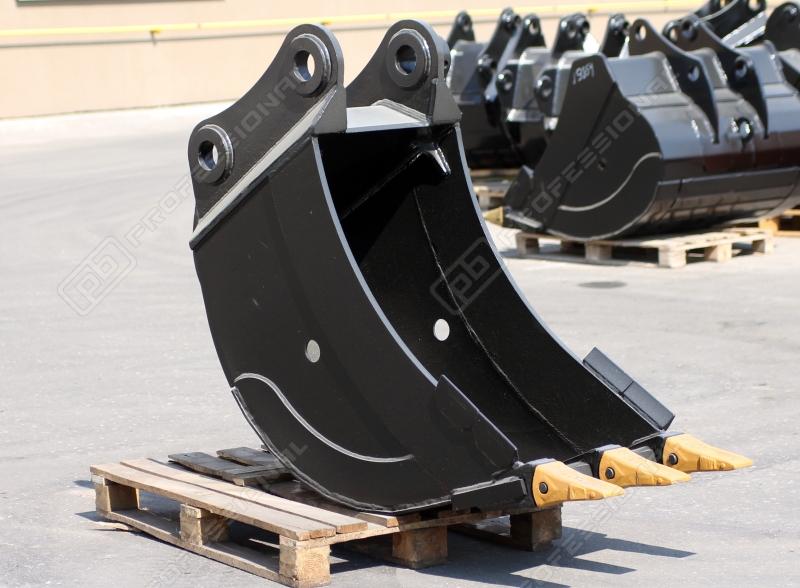

Ditch cleaning bucket TB-16.40 used in trench and general excavations in soils with I-III class, bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).

Basic technical characteristics
Class of excavator12-18 t
Height H1190 mm
Length1170 mm
R970 mm
Width L400 mm
Capacity0,17 m3
Weight275 kg
Bucket teeth quantity2 pcs.

Applied materials and components

1. Bottomsteel 09Г2С 8 mm
2. Bladesteel 09Г2С36 mm
3. Side wallsteel 09Г2С8 mm
4. Wingsteel 09Г2С20 mm
5. Side reinforcing platesteel 09Г2С8 mm
6. Runnersteel 09Г2С8 mm
7. Basesteel 09Г2С16 mm
8. Beamsteel 09Г2С12 mm
9. Eye (Lifting eye / Lifting lug)steel 09Г2С20 mm
10. Wing shroudi-85 4 шт. (i-130 2 шт.)
11. Teeth1U3302RC 205-70-195RC U30C
TB1640
