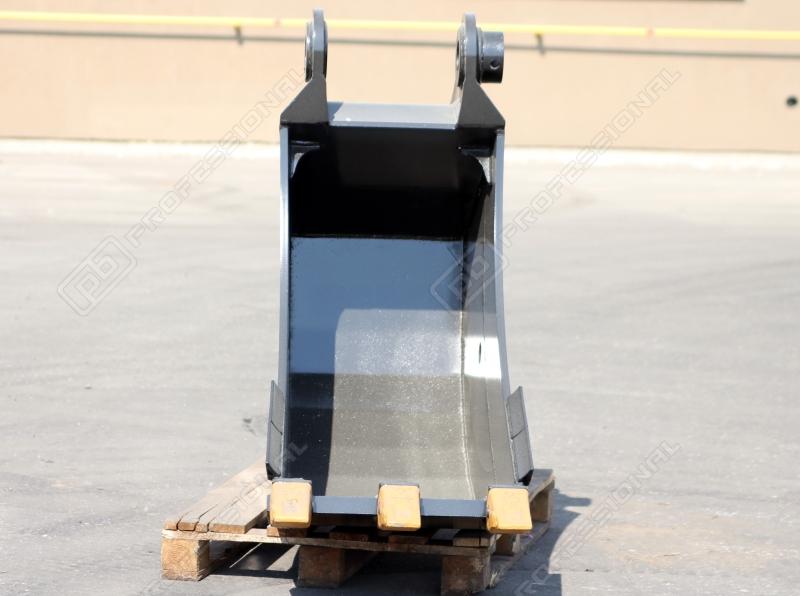

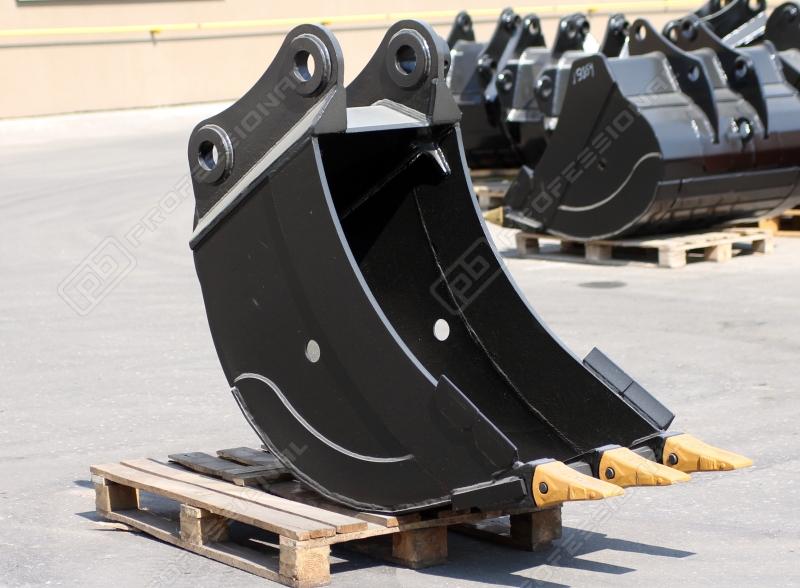

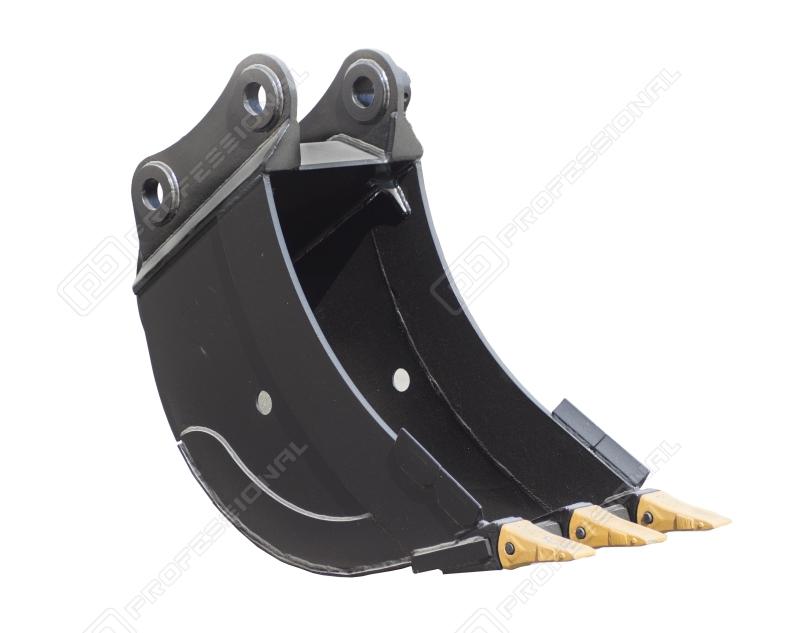

Ditch cleaning bucket TB-31.65

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Add to Favorites
Compare
Download specifications.pdf
General descriptionTechnical Characteristics

Ditch cleaning bucket TB-31.65 used in trench and general excavations in soils with I-III class, bulk material handling with density up to 1600 kgs/m3 (sand, clay loam, topsoil, crushed rock).

Basic technical characteristics
Class of excavator24-30 t
Height H1540 mm
Length1580 mm
R1250 mm
Width L650 mm
Capacity0,52 m3
Weight495 kg
Bucket teeth quantity3 pcs.

Applied materials and components

1. Bottomsteel 09Г2С 10 mm
2. BladeHT-36045 mm
3. Side wallsteel 09Г2С10 mm
4. Wingsteel 09Г2С30 mm
5. Side reinforcing platesteel 09Г2С10 mm
6. Runnersteel 09Г2С10 mm
7. Basesteel 09Г2С20 mm
8. Beamsteel 09Г2С20 mm
9. Eye (Lifting eye / Lifting lug)steel 09Г2С30 mm
10. Wing shroudi-85 4 шт. (i-130 2 шт.)
11. Teeth7T3402RC 207-70-14151RC U40C
TB3165
