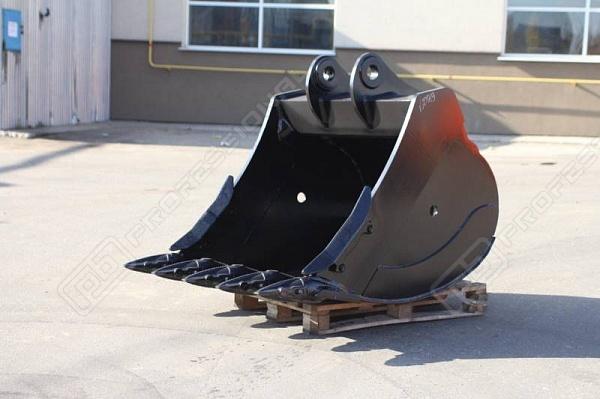

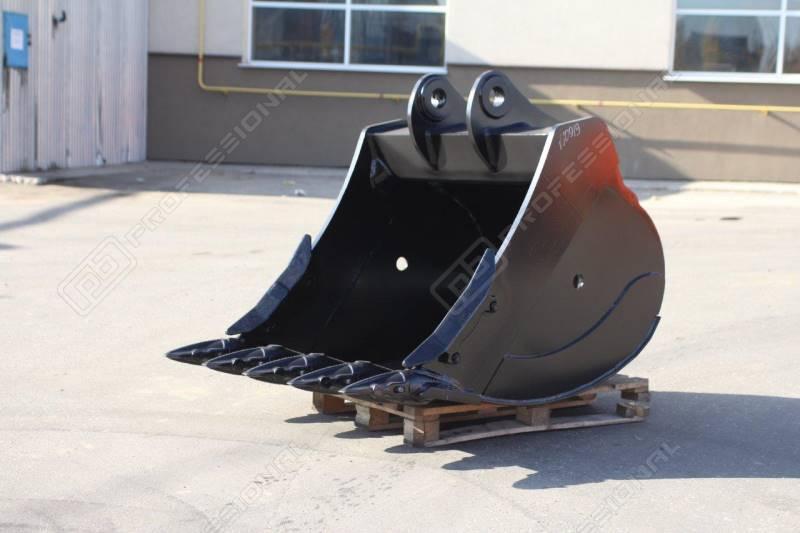

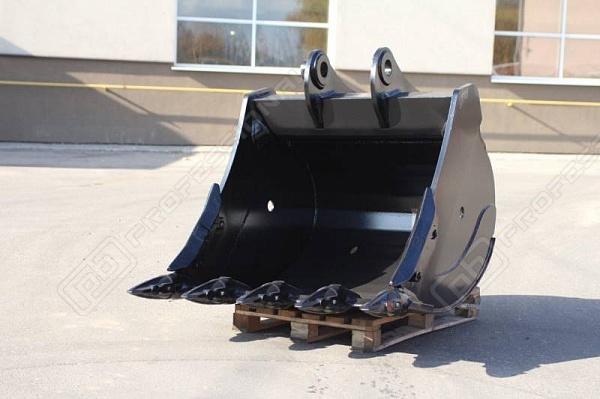

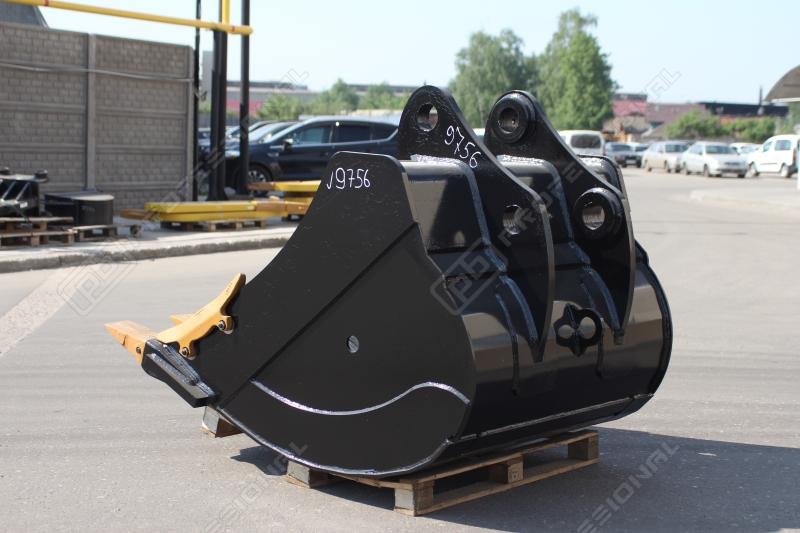

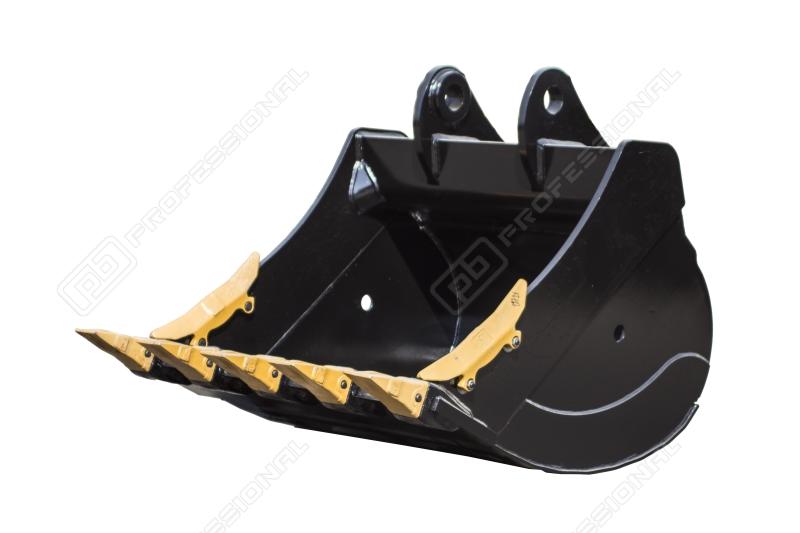

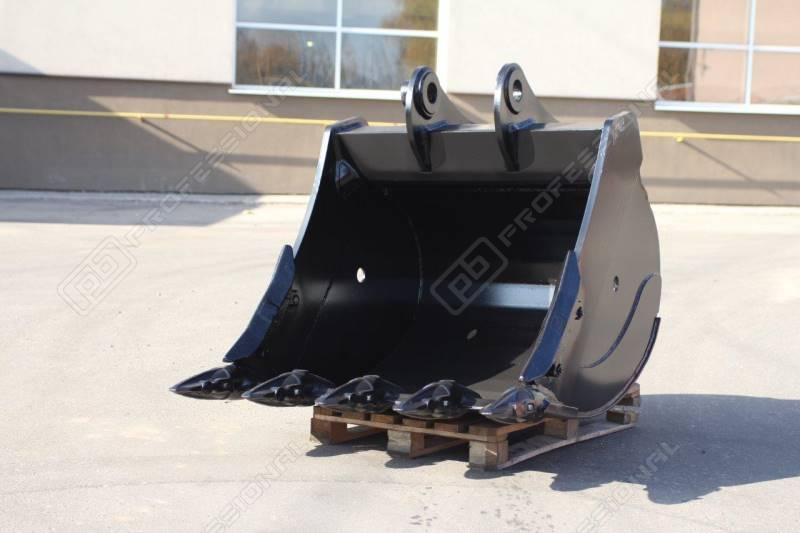

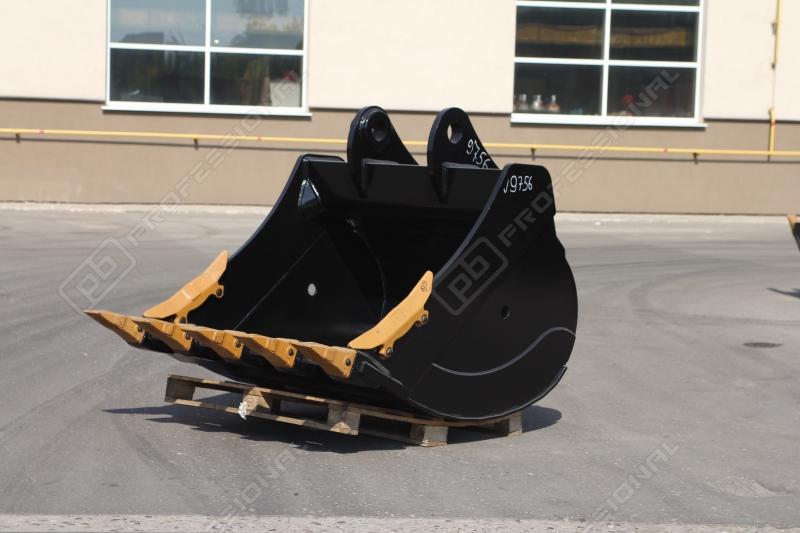

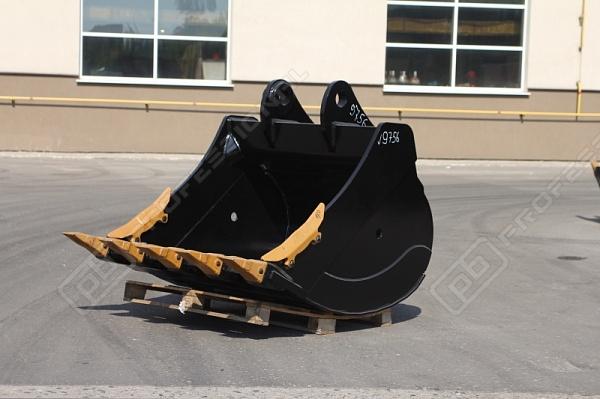

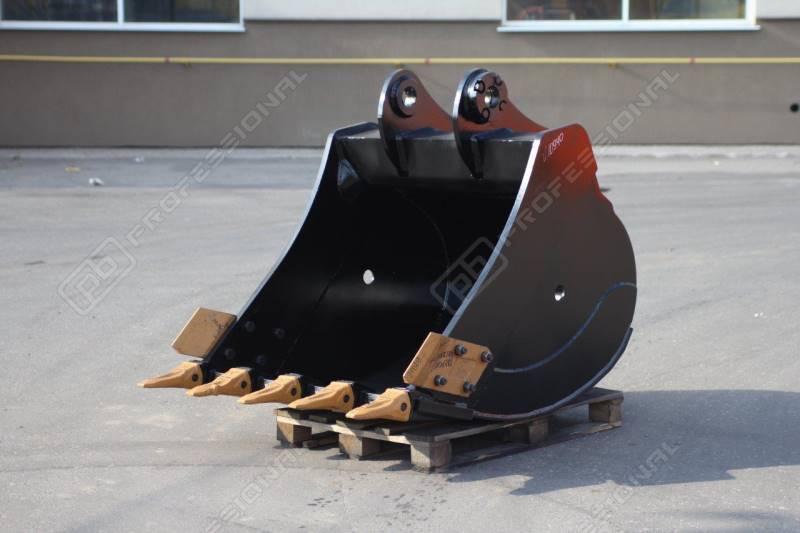

Heavy-duty bucket HD-16.11

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Heavy-duty bucket HD-16.11used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.

Applicability к технике:

  • KomatsuPC-120, PC-180
  • HyundaiR-130, R-140, R-1300, R-160, R-180
  • HitachiZX-130, ZX-140, EX-120, ZX-160, DX-165, ZX-180
  • DoosanS-140, DX-160, S-170
  • VolvoEC-145, EC-160

Basic technical characteristics
Class of excavator 12-18 t
Height H1250 mm
Length1500 mm
R1070 mm
Width L1100 mm
Capacity0,8 m3
Weight700 kg
Bucket teeth quantity5 pcs.

Applied materials and components

1. Bottom10ХСНД 8 mm
2. BladeHB-40035 mm
3. Side wall10ХСНД8 mm
4. Wing10ХСНД25 mm
5. Side reinforcing plateHB-4508 mm
6. RunnerHB-4508 mm
7. Beam10ХСНД12 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД20 mm
10. Протектор/бокорез9J96002 pcs.
11. TeethEsco U30C, Hehsley, XS20RC, 1U3302RC, 61N4-31210, 61N6-31310
HD1611
