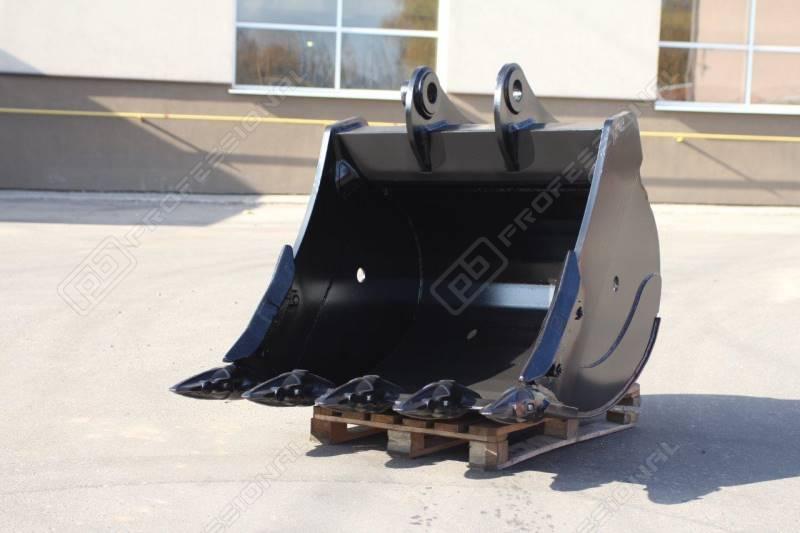

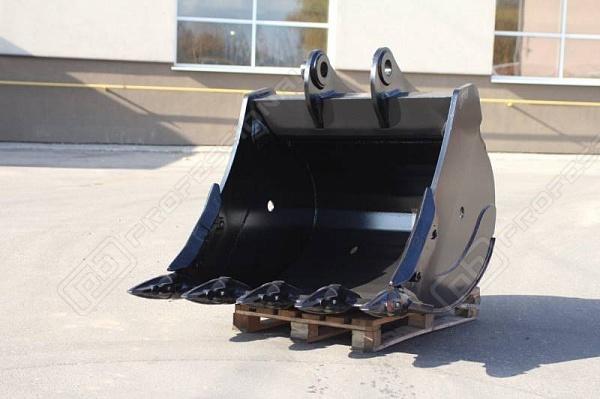

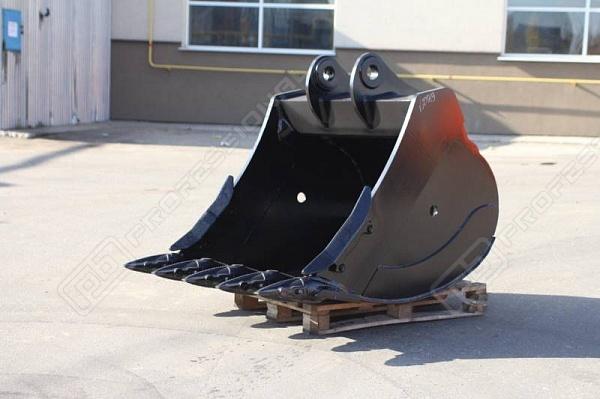

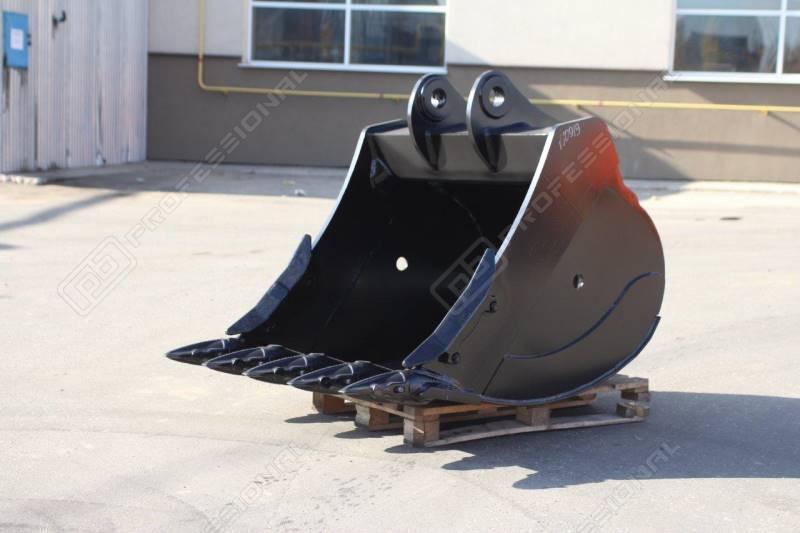

Heavy-duty bucket HD-21.14

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Heavy-duty bucket HD-21.14used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.

Applicability к технике:

  • KomatsuPC-200, PC-210, PC-220, PC-240, PC-290
  • HyundaiR-200, R-210, R-220, R-250
  • HitachiZX-200, ZX-210, ZX-230, ZX-240, ZX-250
  • CASE CASE CX-210
  • DoosanS-175, S-210, DX-225, S-225, S-255
  • VolvoEC-180, EC-210, EC-240, EC-250
  • JCB JCB-200, JCB-220
  • СAT CAT-318, CAT-320, CAT-322, CAT-324

Basic technical characteristics
Class of excavator 19-28 t
Height H1400 mm
Length1650 mm
R1200 mm
Width L1400 mm
Capacity1,3 m3
Weight1130 kg
Bucket teeth quantity5 pcs.

Applied materials and components

1. Bottom10ХСНД 10 mm
2. BladeHB-40040 mm
3. Side wall10ХСНД10 mm
4. Wing10ХСНД30 mm
5. Side reinforcing plateHB-45010 mm
6. RunnerHB-45010 mm
7. Beam10ХСНД16 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД25 mm
10. Протектор/бокорез9J9600, 2014503 (2014504),
205-70-74180 (205-70-74190)
11. TeethHehsley XS25RC, 1U3352, 205-70-19570, 61N8-31310, 2713-1219

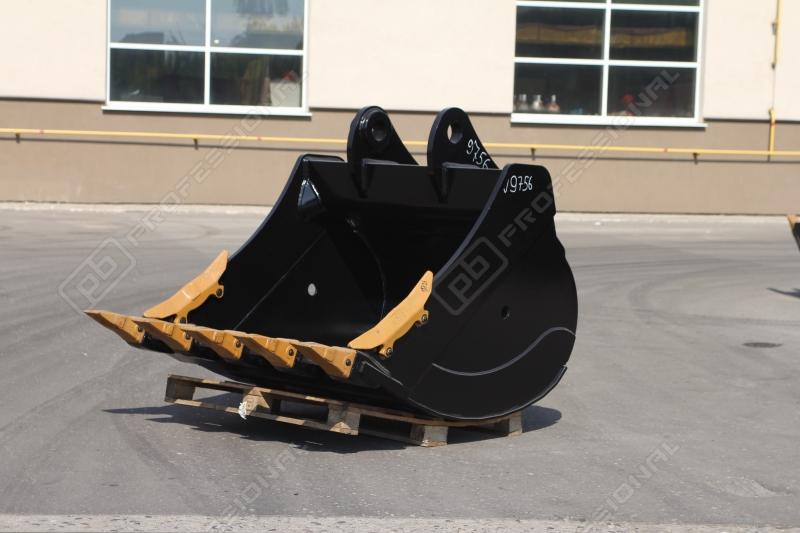

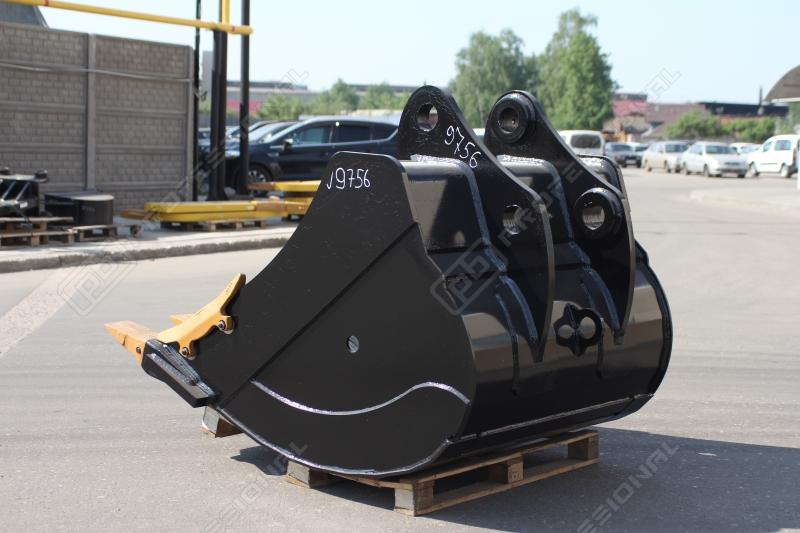

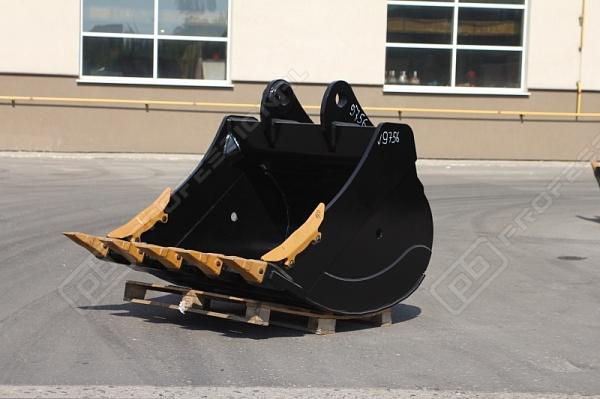

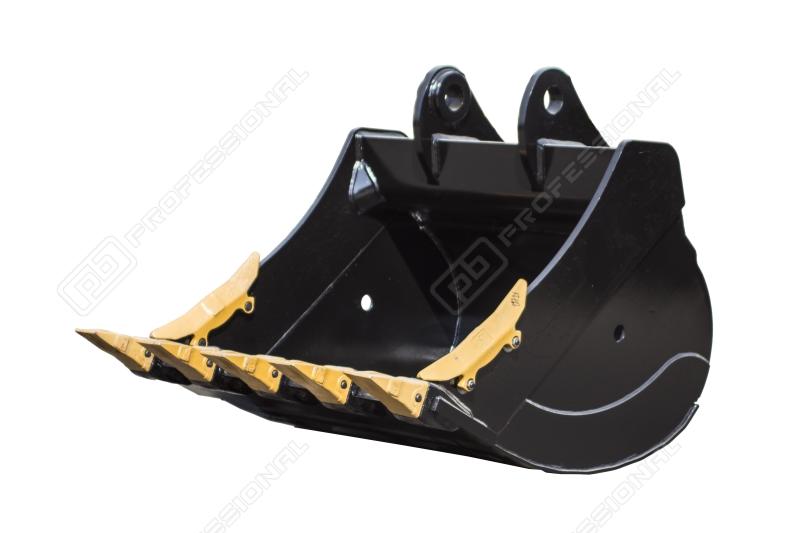

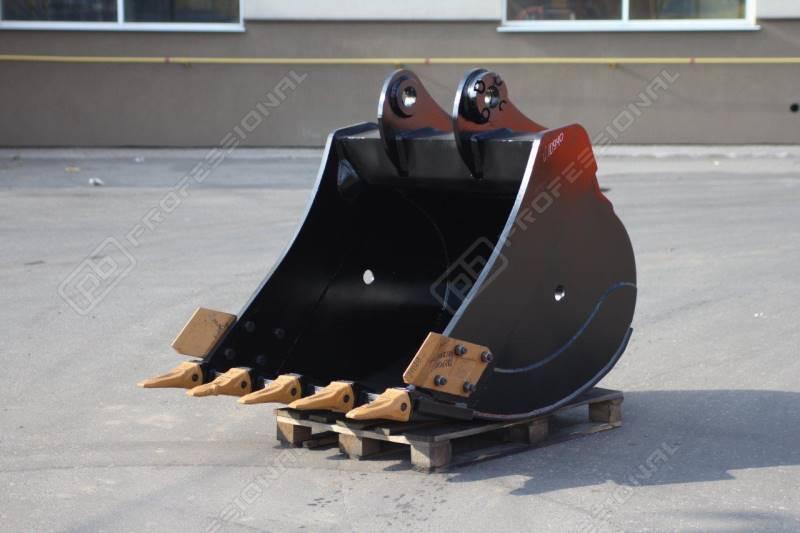

Изображен ковш с протекторами

HD2114
