Price: call us or send an enquiry
Availability: in stock

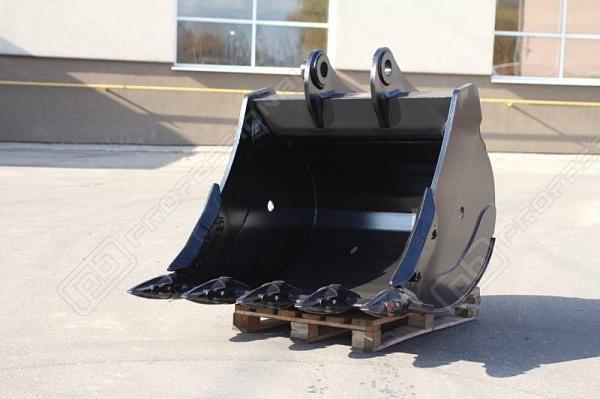

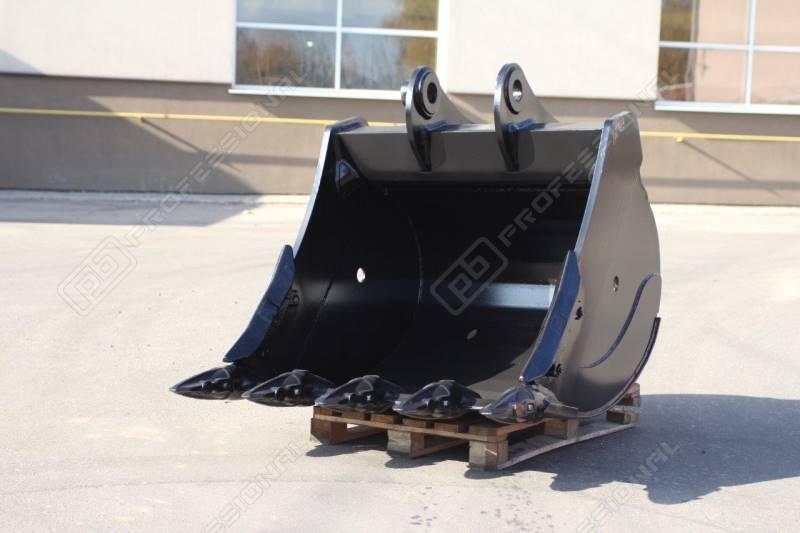

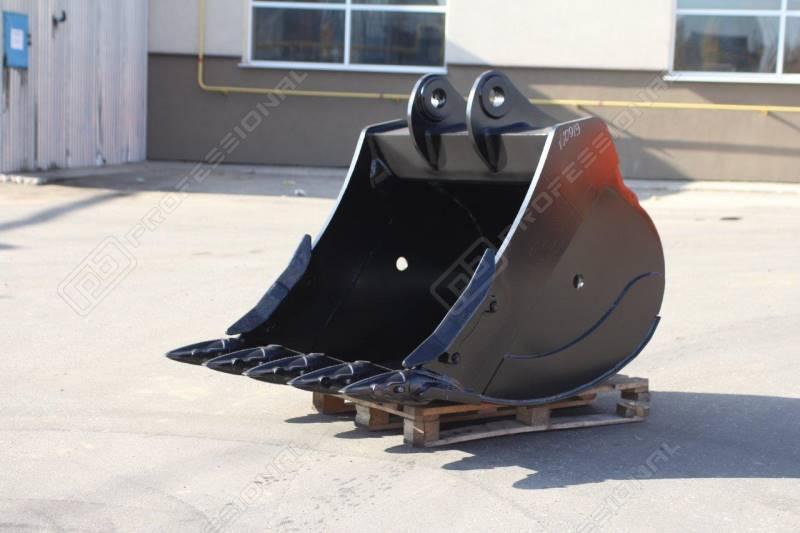

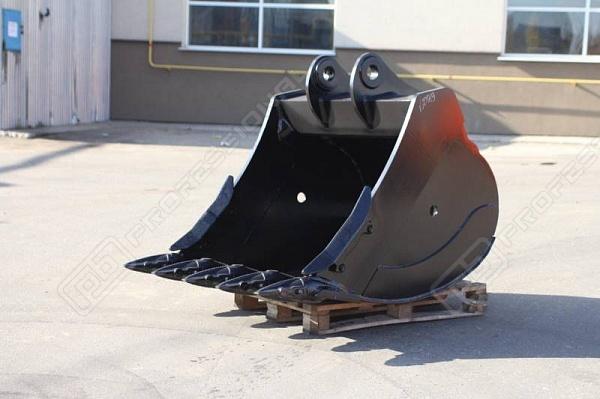

Heavy-duty bucket HD-21.15used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.
Applicability к технике:
| Class of excavator | 19-28 t |
| Height H | 1400 mm |
| Length | 1650 mm |
| R | 1200 mm |
| Width L | 1500 mm |
| Capacity | 1,4 m3 |
| Weight | 1170 kg |
| Bucket teeth quantity | 5 pcs. |

Applied materials and components
| 1. Bottom | 10ХСНД | 10 mm |
| 2. Blade | HB-400 | 40 mm |
| 3. Side wall | 10ХСНД | 10 mm |
| 4. Wing | 10ХСНД | 30 mm |
| 5. Side reinforcing plate | HB-450 | 10 mm |
| 6. Runner | HB-450 | 10 mm |
| 7. Beam | 10ХСНД | 16 mm |
| 8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 25 mm |
| 10. Протектор/бокорез | 9J9600, 2014503 (2014504), 205-70-74180 (205-70-74190) | |
| 11. Teeth | Hehsley XS25RC, 1U3352, 205-70-19570, 61N8-31310, 2713-1219 | |

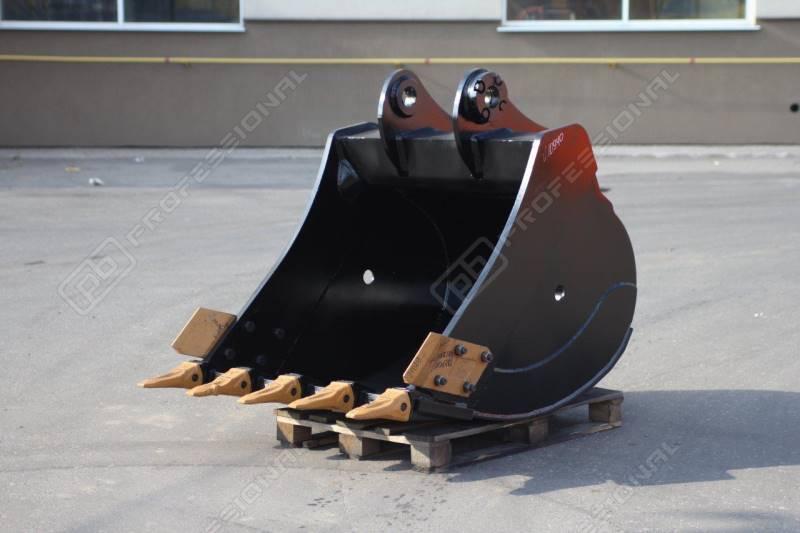

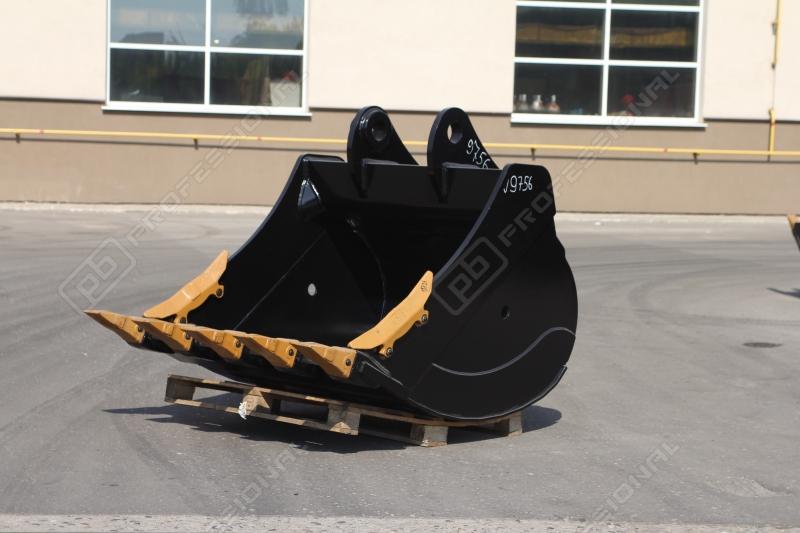

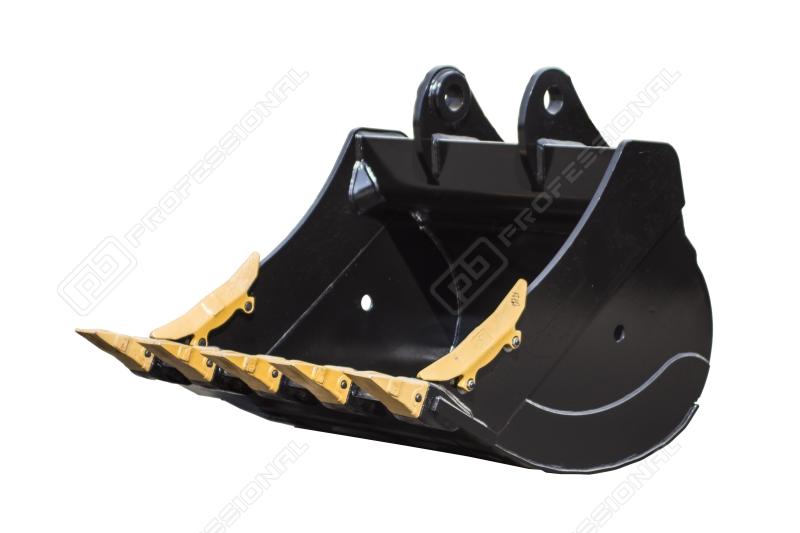

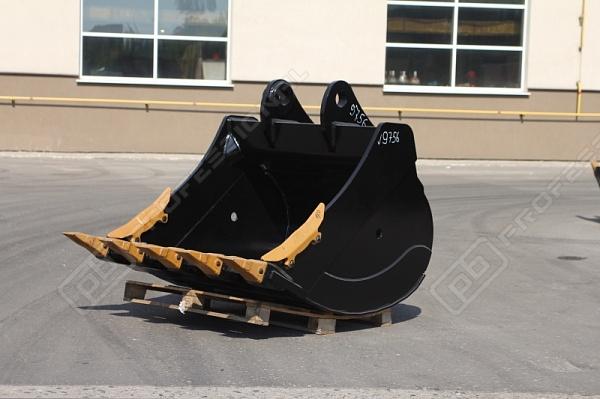

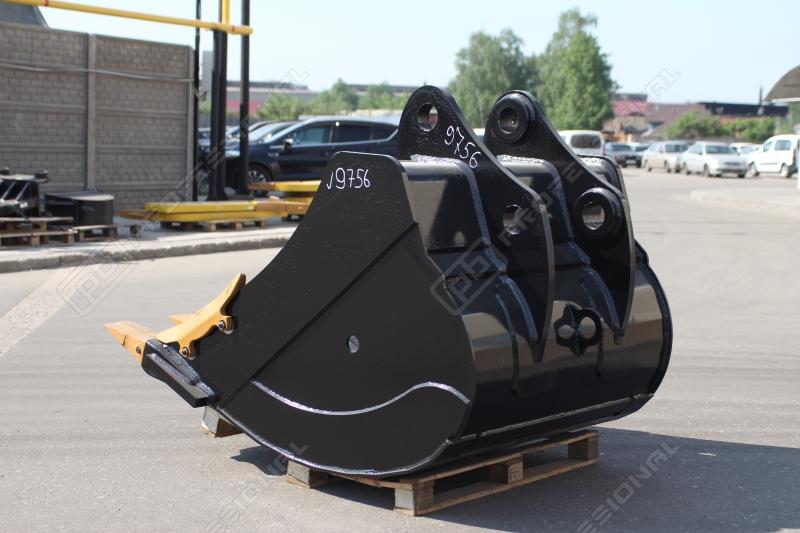

Изображен ковш с протекторами
