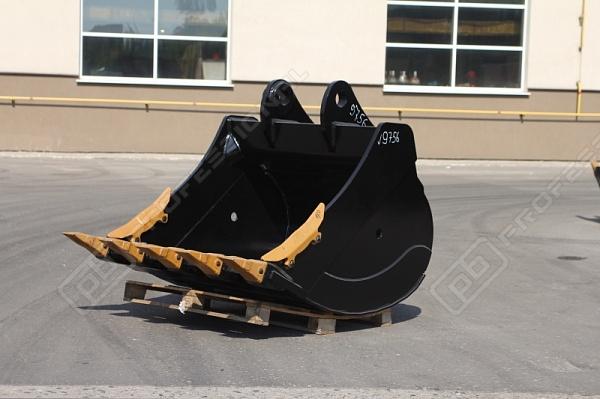

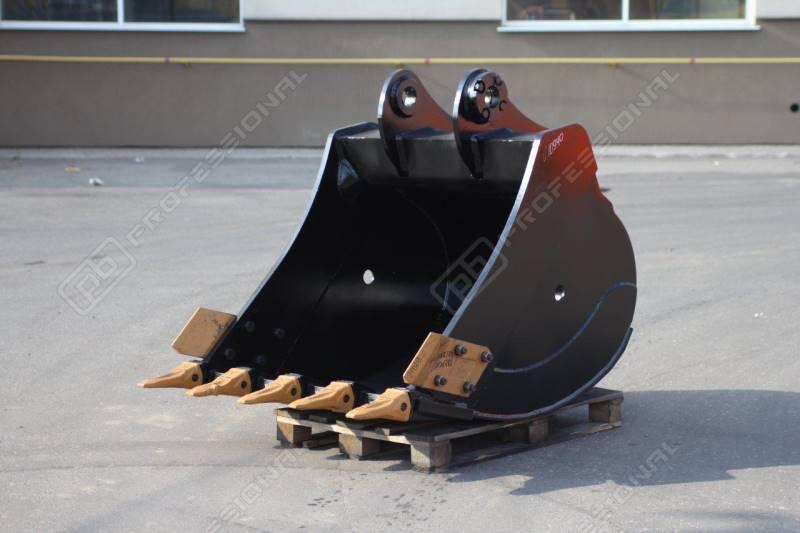

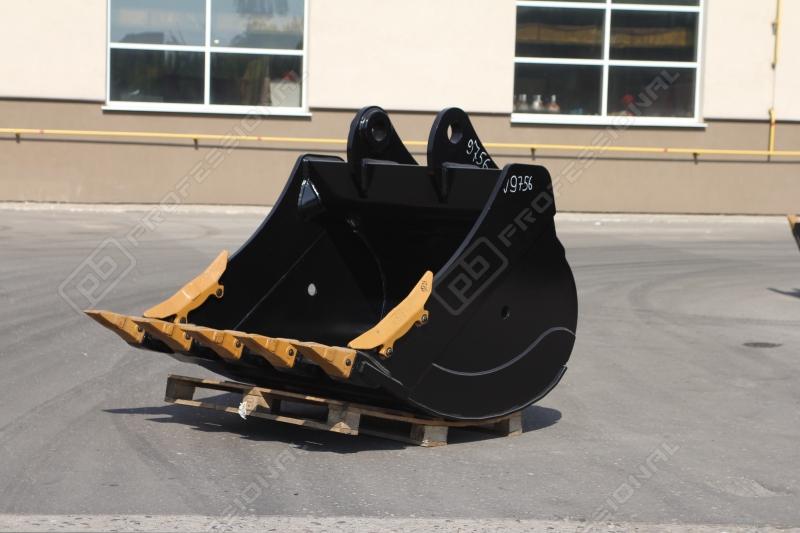

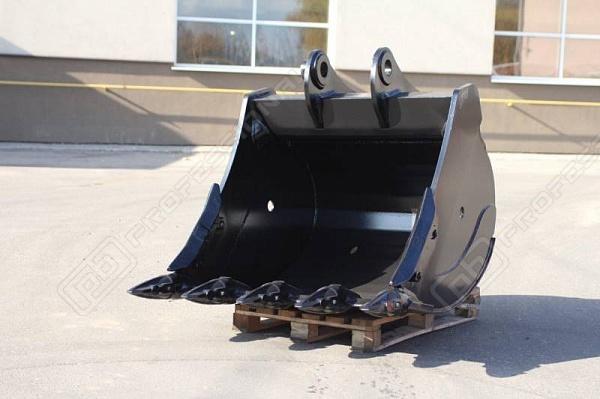

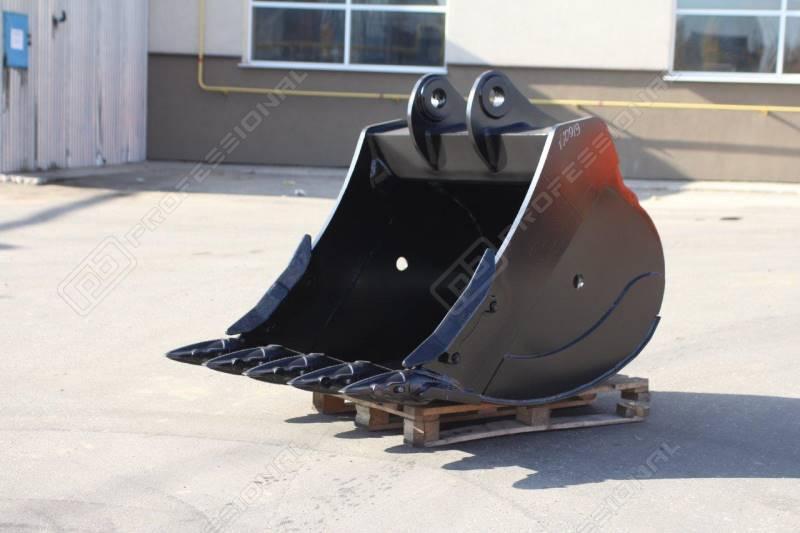

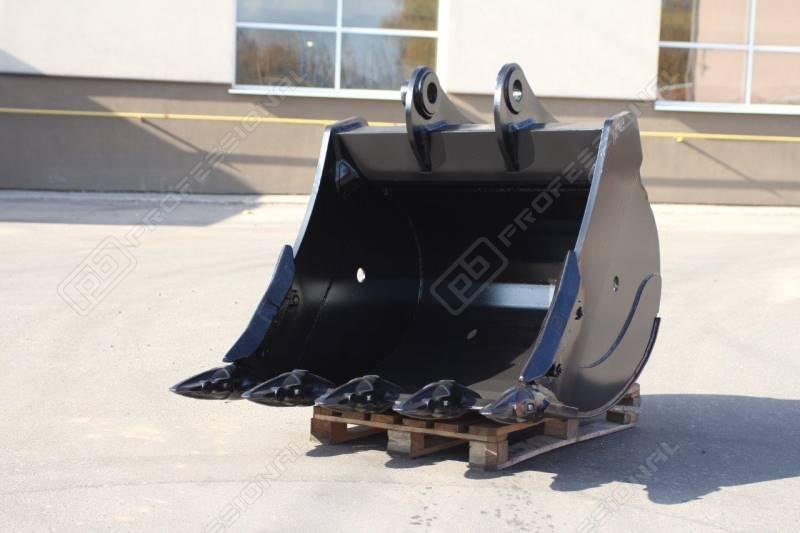

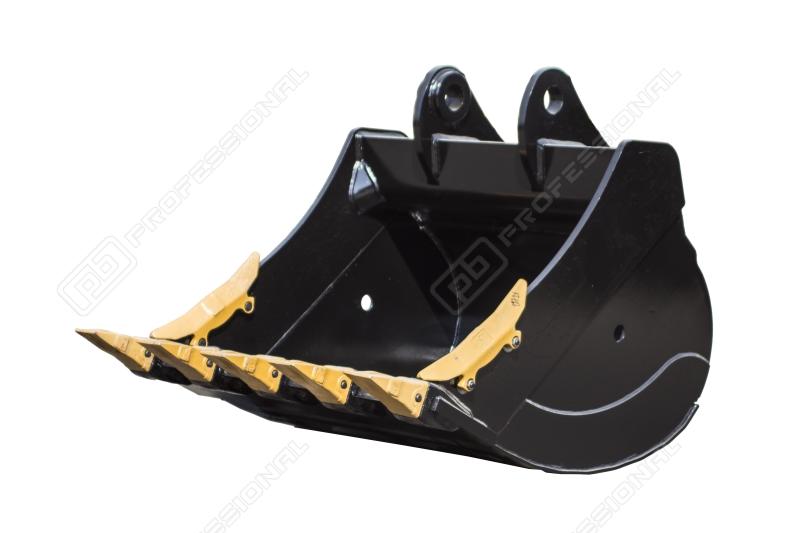

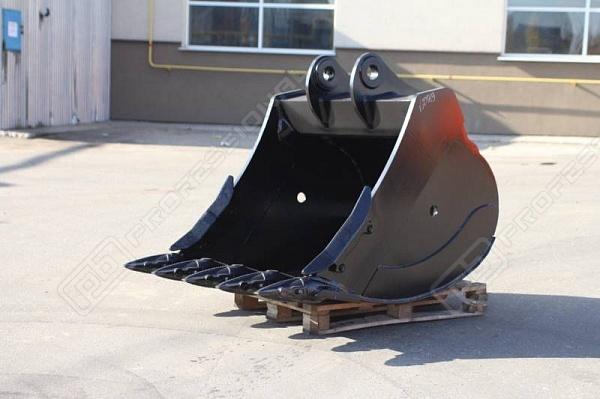

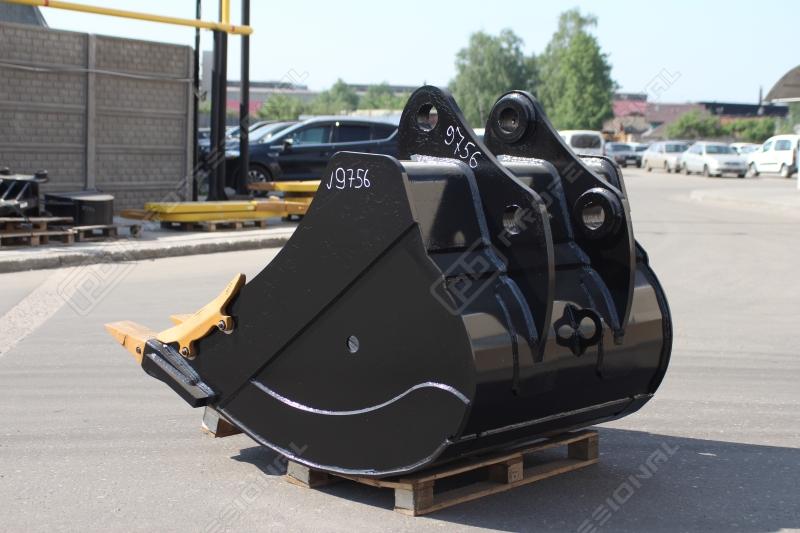

Heavy-duty bucket HD-31.14

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Heavy-duty bucket HD-31.14used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.

Applicability к технике:

  • KomatsuPC-290, PC-300, PC-330, PC-340, PC-350
  • HyundaiR-250, R-260, R-290, R-300, R-320, R-360, R-380
  • HitachiZX-330
  • CASE EC-290, EC-330
  • DoosanDX-300, S-340
  • VolvoEC-290, EC-360
  • JCB JS-330
  • СAT CAT-325, CAT-329, CAT-330, CAT-336

Basic technical characteristics
Class of excavator29-38 t
Height H1500 mm
Length1800 mm
R1330 mm
Width L1400 mm
Capacity1,5 m3
Weight1480 kg
Bucket teeth quantity5 pcs.

Applied materials and components

1. Bottom10ХСНД 12 mm
2. BladeHB-40050 mm
3. Side wall10ХСНД12 mm
4. Wing10ХСНД40 mm
5. Side reinforcing plateHB-45012 mm
6. RunnerHB-45012 mm
7. Beam10ХСНД25 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД40 mm
10. Протектор/бокорез1U07402 pcs.
11. TeethEsco U45C, Hehsley XS40RC, 9W8452RC, MG55E, 208-70-14152RC
