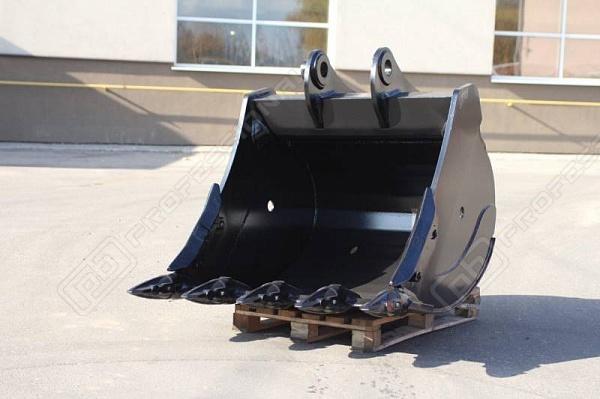

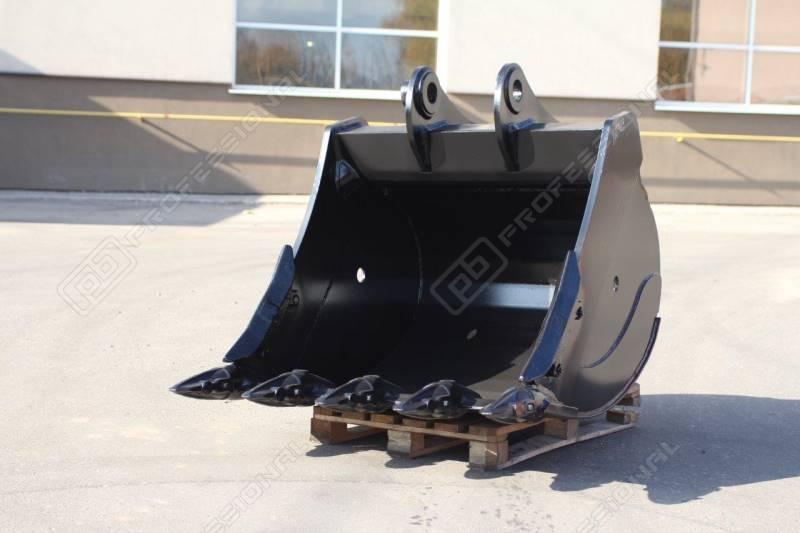

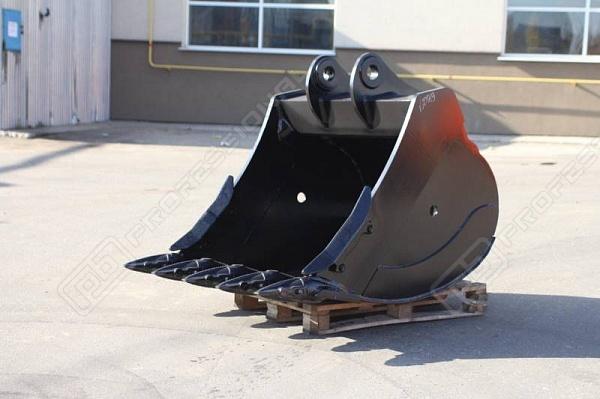

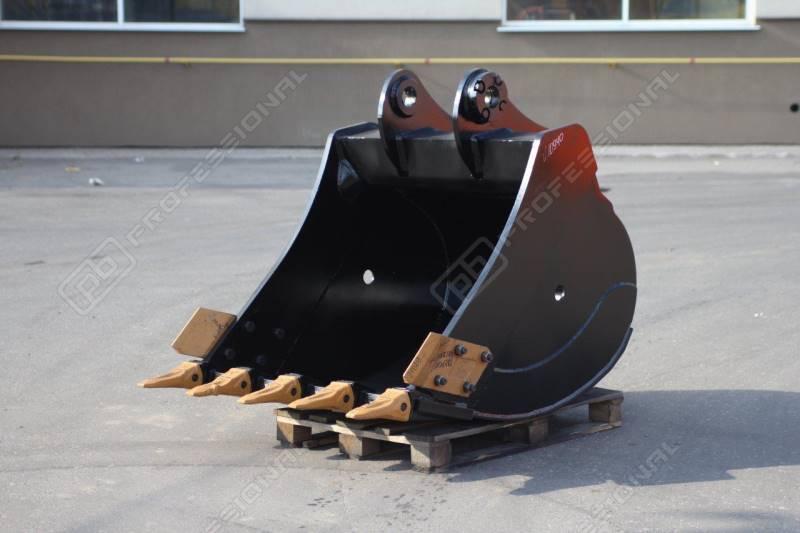

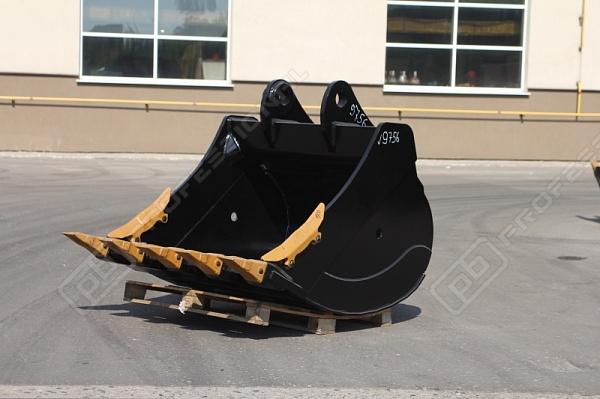

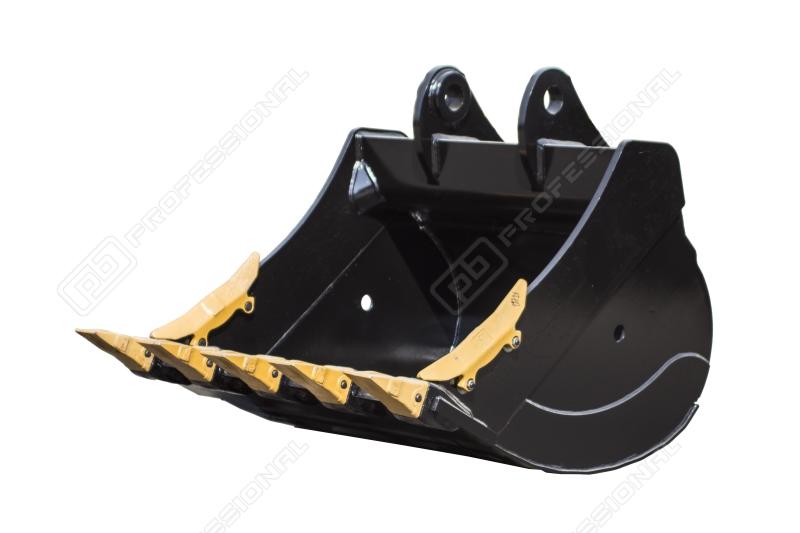

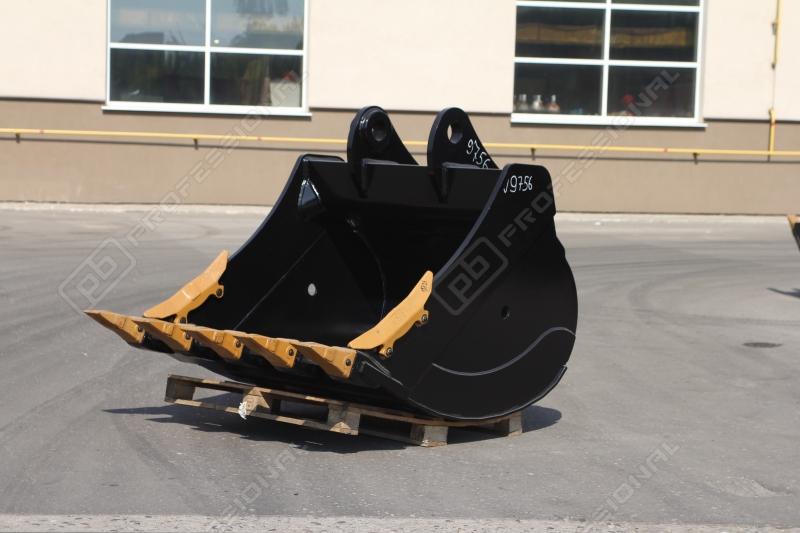

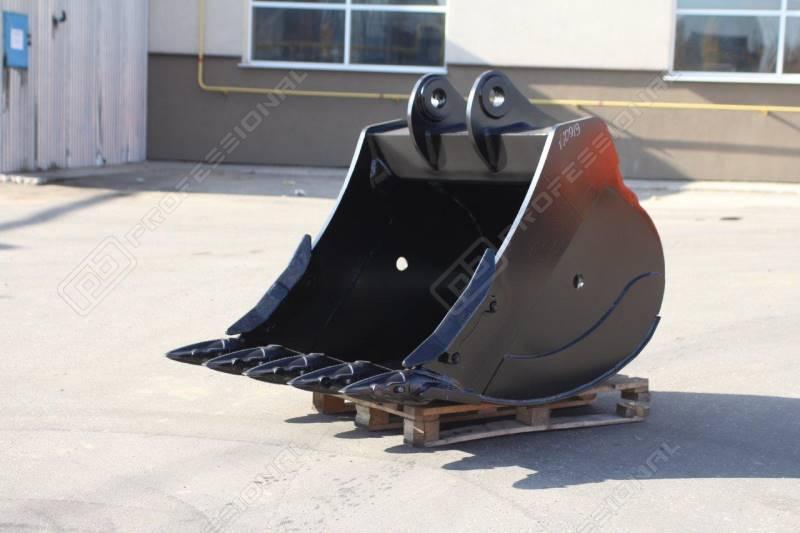

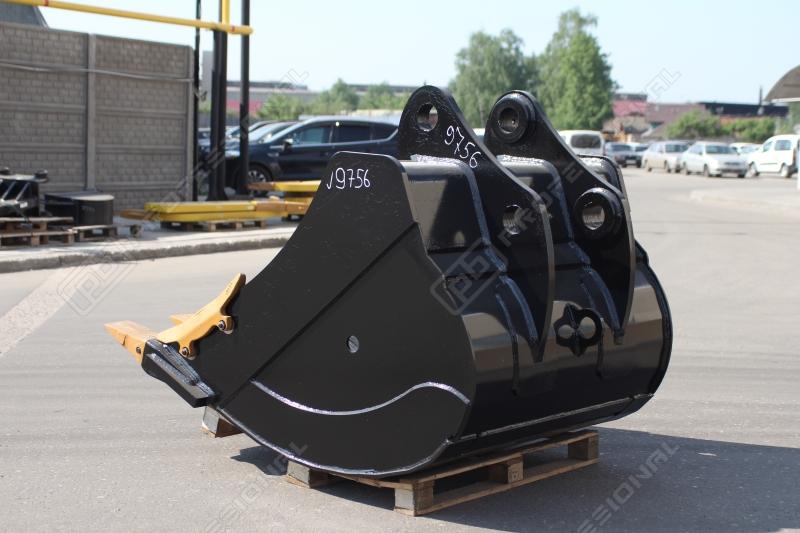

Heavy-duty bucket HD-51.15

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Heavy-duty bucket HD-51.15used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.

Applicability к технике:

  • KomatsuPC-450
  • HyundaiR-480, R-500, R-520
  • DoosanS-500, S-520, DX-480, DX-520, S-470
  • VolvoEC-460, EC-480
  • CAT CAT-345DL, CAT-349

Basic technical characteristics
Class of excavator45-55 t
Height H1800 mm
Length2100 mm
R1500 mm
Width L1500 mm
Capacity2,05 m3
Weight2270 kg
Bucket teeth quantity4 pcs.

Applied materials and components

1. Bottom10ХСНД 16 mm
2. BladeHB-36060 mm
3. Side wall10ХСНД12 mm
4. Wing10ХСНД40 mm
5. Side reinforcing plateHB-45015 mm
6. RunnerHB-45015 mm
7. Beam10ХСНД25 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД40 mm
10. Протектор/бокорез1U07402 pcs.
11. TeethEsco U45C, Hehsley XS50RC, 9W8552RC, MG55E
HD5115
