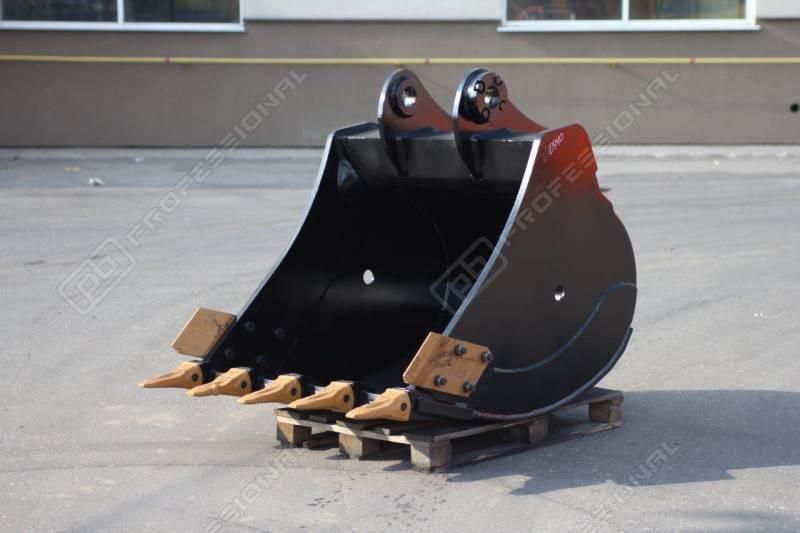

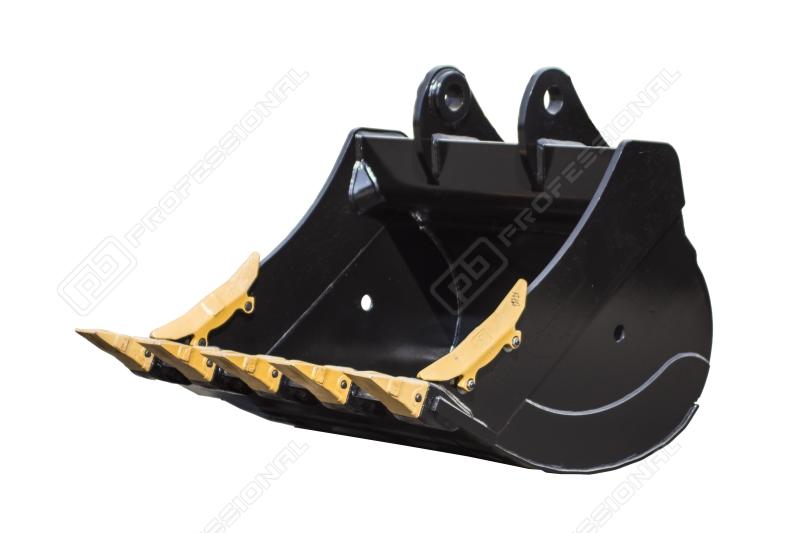

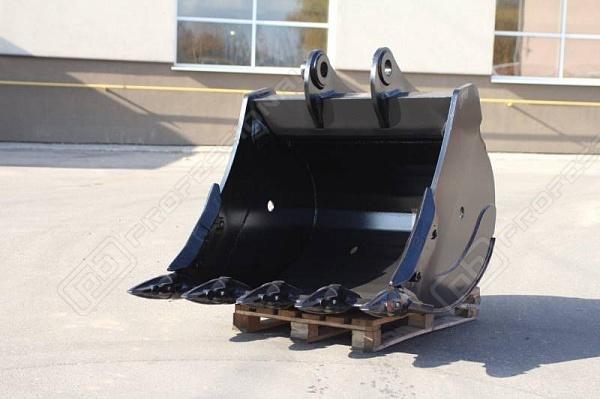

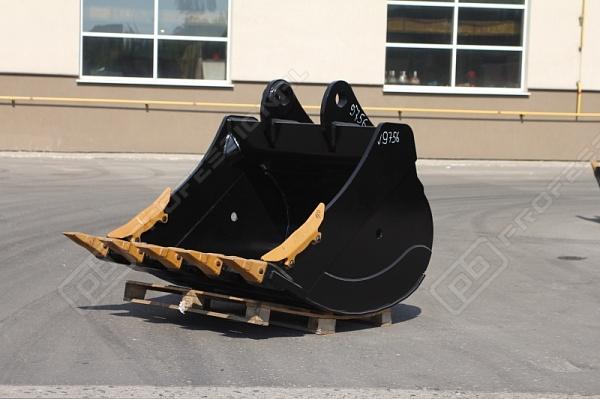

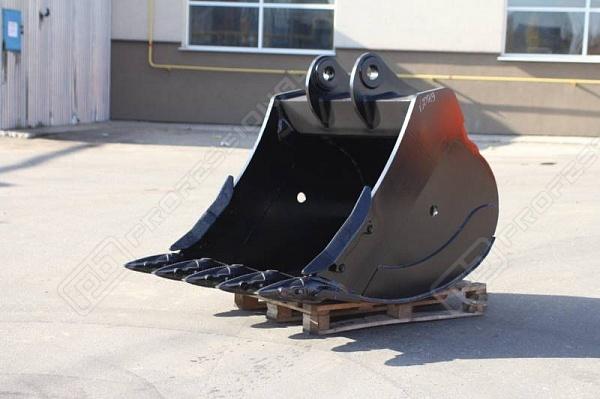

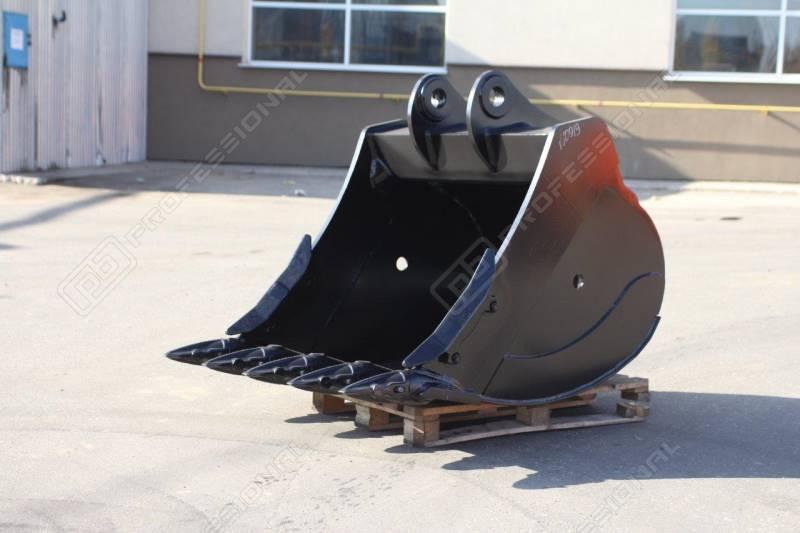

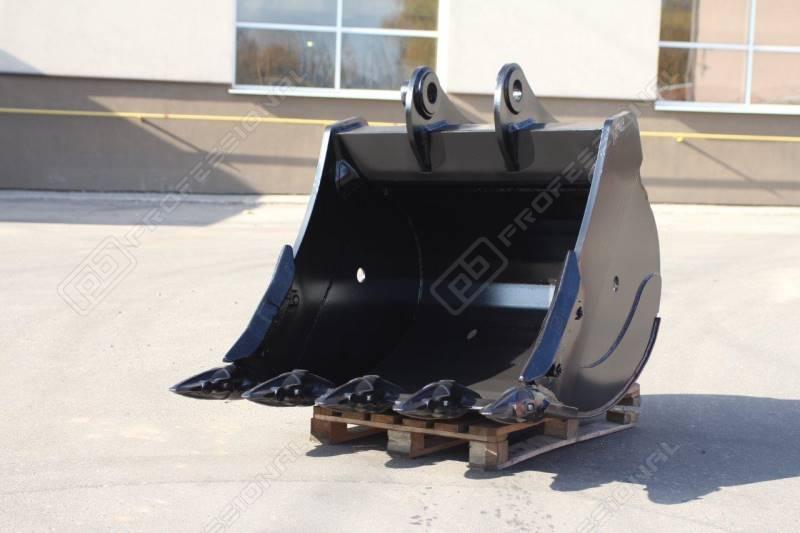

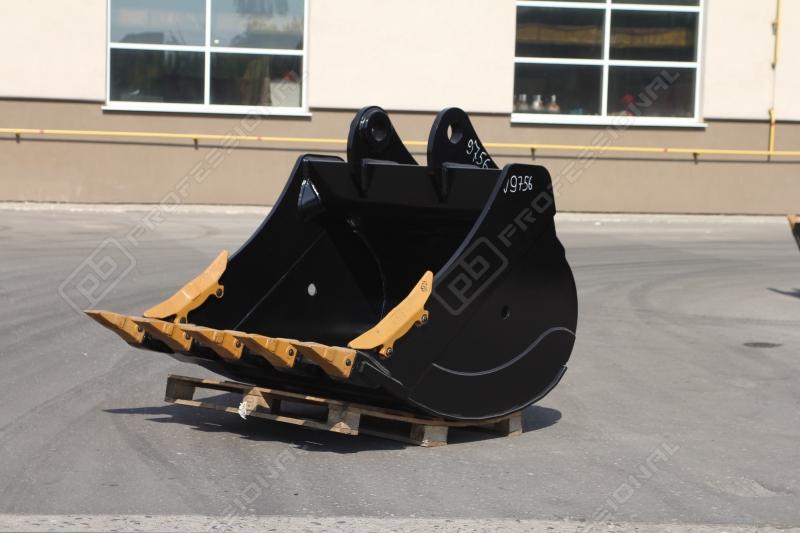

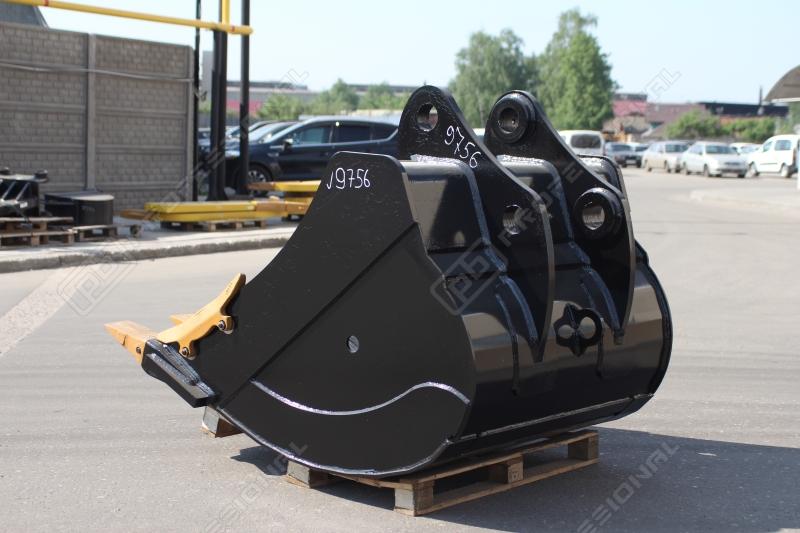

Heavy-duty bucket HD-51.16

Price: call us or send an enquiry

Availability: in stock

Delivery costs are provided upon requestClick here for more information
Send inquiry

Запрос цены



Organization*
Country, City*


Phone number*
Email
Name*
Comment
Модель техники


* - Required fields

Heavy-duty bucket HD-51.16used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.

Applicability к технике:

  • KomatsuPC-450
  • HyundaiR-480, R-500, R-520
  • DoosanS-500, S-520, DX-480, DX-520, S-470
  • VolvoEC-460, EC-480
  • CAT CAT-345DL, CAT-349

Basic technical characteristics
Class of excavator45-55 t
Height H1800 mm
Length2100 mm
R1500 mm
Width L1600 mm
Capacity2,25 m3
Weight2350 kg
Bucket teeth quantity4 (5шт при адаптерах J550) pcs.

Applied materials and components

1. Bottom10ХСНД 16 mm
2. BladeHB-36060 mm
3. Side wall10ХСНД12 mm
4. Wing10ХСНД40 mm
5. Side reinforcing plateHB-45015 mm
6. RunnerHB-45015 mm
7. Beam10ХСНД25 mm
8. Eye (Lifting eye / Lifting lug)10ХСНД40 mm
10. Протектор/бокорез1U07402 pcs.
11. TeethEsco U45C, Hehsley XS50RC, 9W8552RC, MG55E
HD5116
