Price: call us or send an enquiry
Availability: in stock

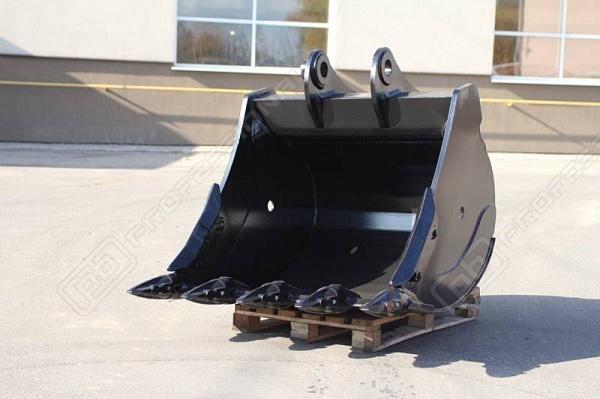

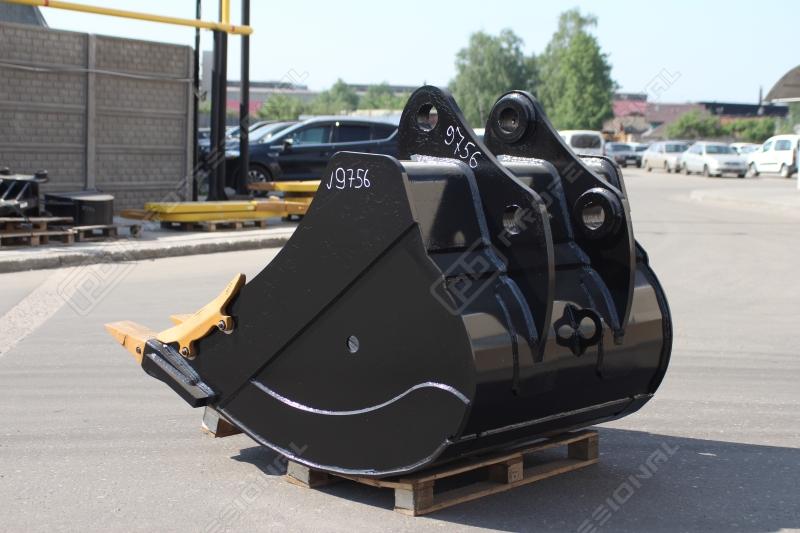

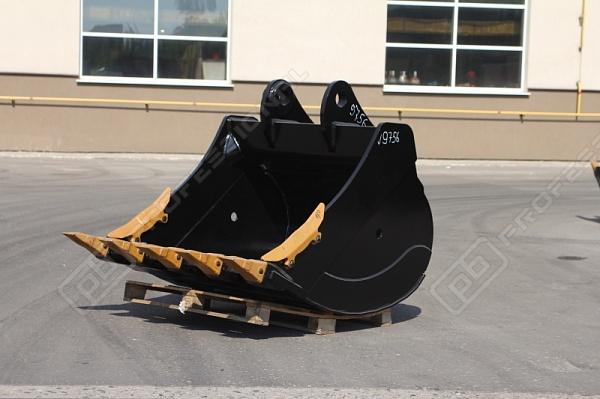

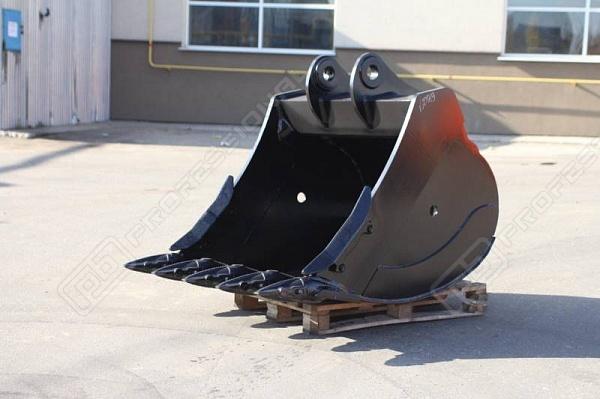

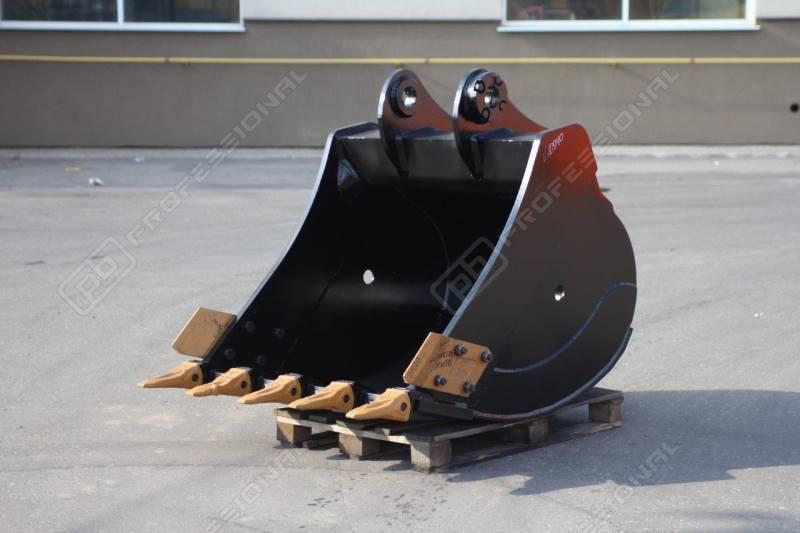

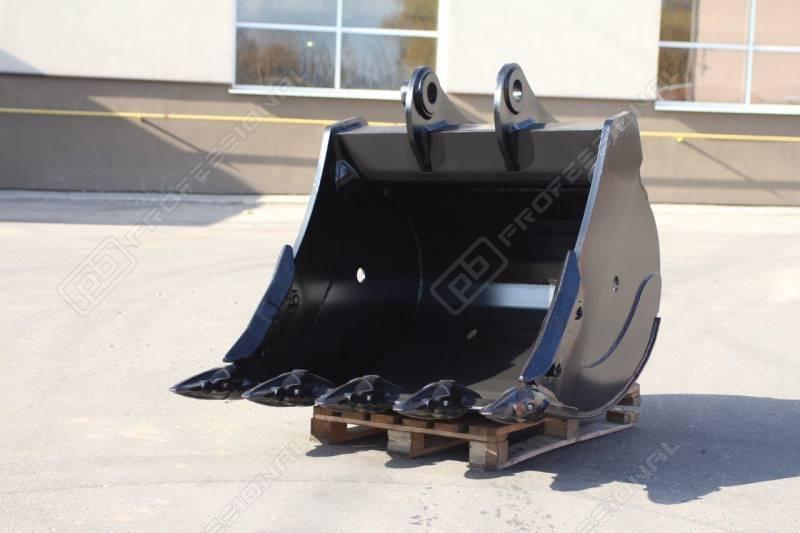

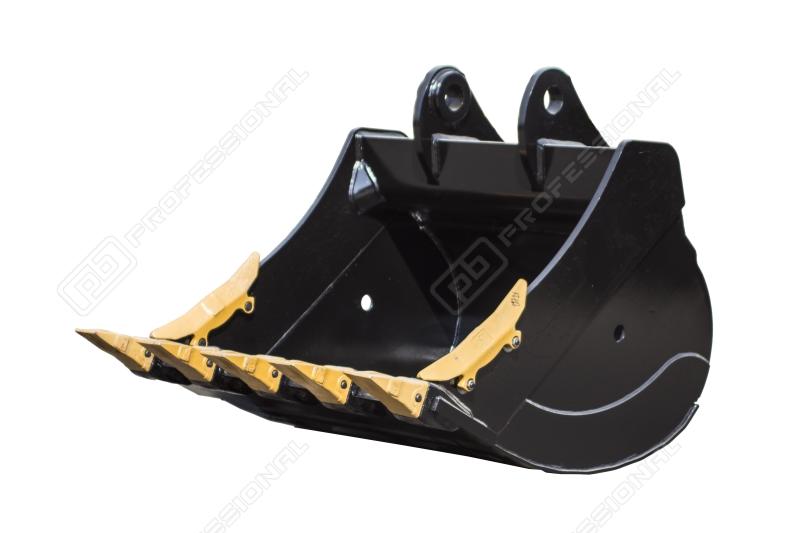

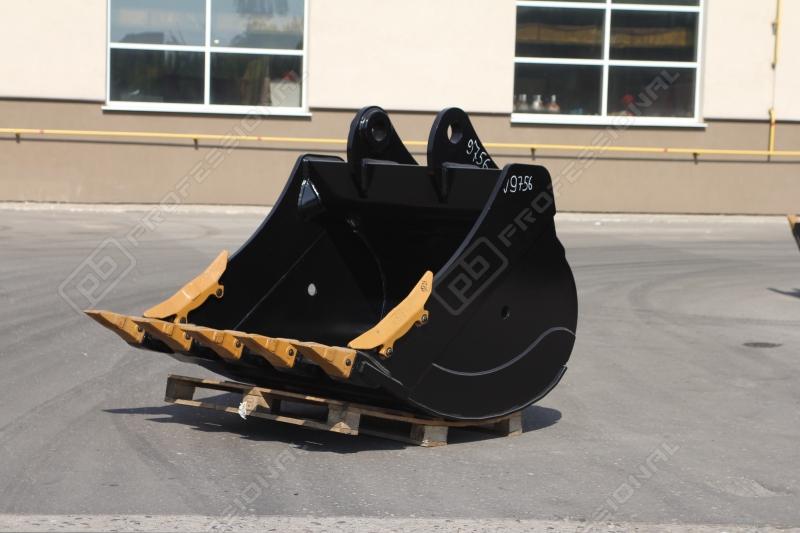

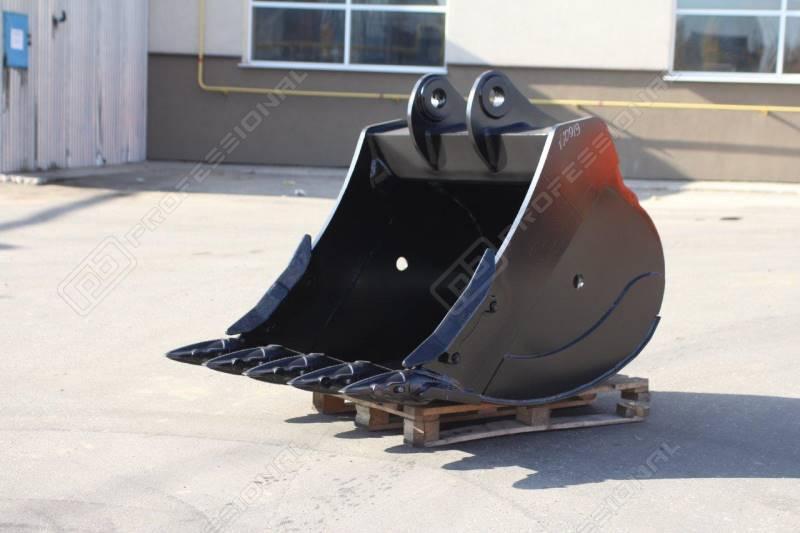

Heavy-duty bucket HD-51.18used in general ground earthworks; pit excavation; soil class I-IV half consisted of stonsy materials; bulk material, loose rock and frozen soil handling with density up to 1800 kgs/m3 (sand, clay loam, topsoil, crushed rock, chalk rock, shale rock, lime stonse). Wear and load surfaces are made of high-strength materials. Bucket is equipped with spare teeth, which used to soil penetration and provide high wear resistance and long performance.
Applicability к технике:
Class of excavator | 45-55 t |
Height H | 1800 mm |
Length | 2100 mm |
R | 1500 mm |
Width L | 1800 mm |
Capacity | 2,6 m3 |
Weight | 2610 kg |
Bucket teeth quantity | 5 pcs. |
Applied materials and components
1. Bottom | 10ХСНД | 16 mm |
2. Blade | HB-360 | 60 mm |
3. Side wall | 10ХСНД | 12 mm |
4. Wing | 10ХСНД | 40 mm |
5. Side reinforcing plate | HB-450 | 15 mm |
6. Runner | HB-450 | 15 mm |
7. Beam | 10ХСНД | 25 mm |
8. Eye (Lifting eye / Lifting lug) | 10ХСНД | 40 mm |
10. Протектор/бокорез | 1U0740 | 2 pcs. |
11. Teeth | Esco U45C, Hehsley XS50RC, 9W8552RC, MG55E |
